300MW Automatic PV Modules Production Line - for Solar Industry
Welcome to Salvex Marketplace where you can buy surplus, salvage, and discounted solar panels and accessories as part of a commercial repurposing strategy.
300MW Automatic PV Modules Production Line - for Solar Industry Share with Buyers
-
-
Welcome to Salvex Marketplace where you can buy surplus, salvage, and discounted solar panels and accessories as part of a commercial repurposing strategy.
| ID | : | 183010225 |
| Seller | : | |
| Seller Industry | : | |
| Quantity | : | 1 Production Line |
| Manufacturer | : | |
| Condition | : | Used Used in working condition. Disassembled for exporting. The last maintenance happened in January 2021. Being sold "AS IS, WHERE IS". The buyer is responsible for shipping and handling. |
| | : | |
| Product Location | : | Jordan |
| End Time | : | |
Item Description

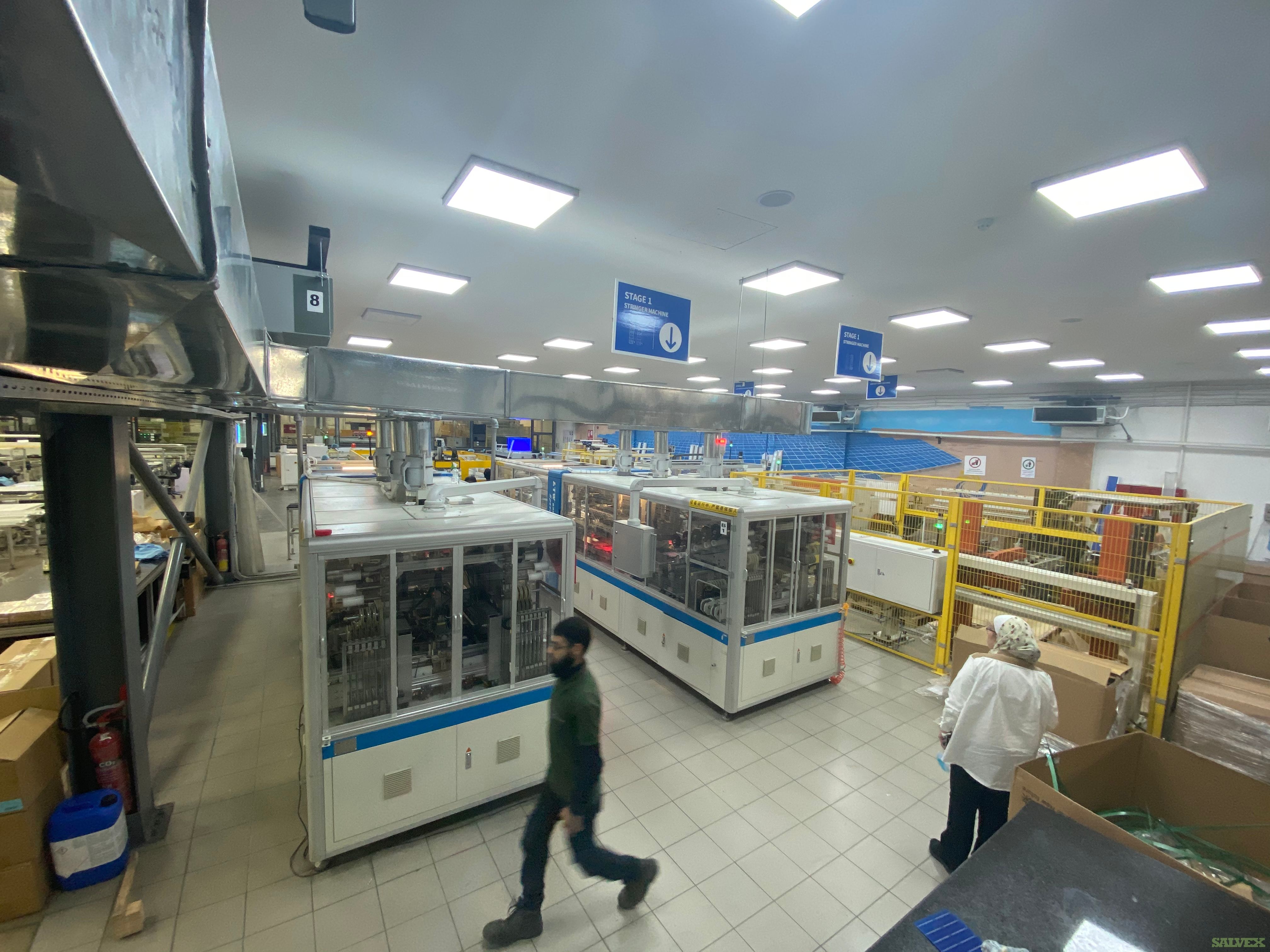

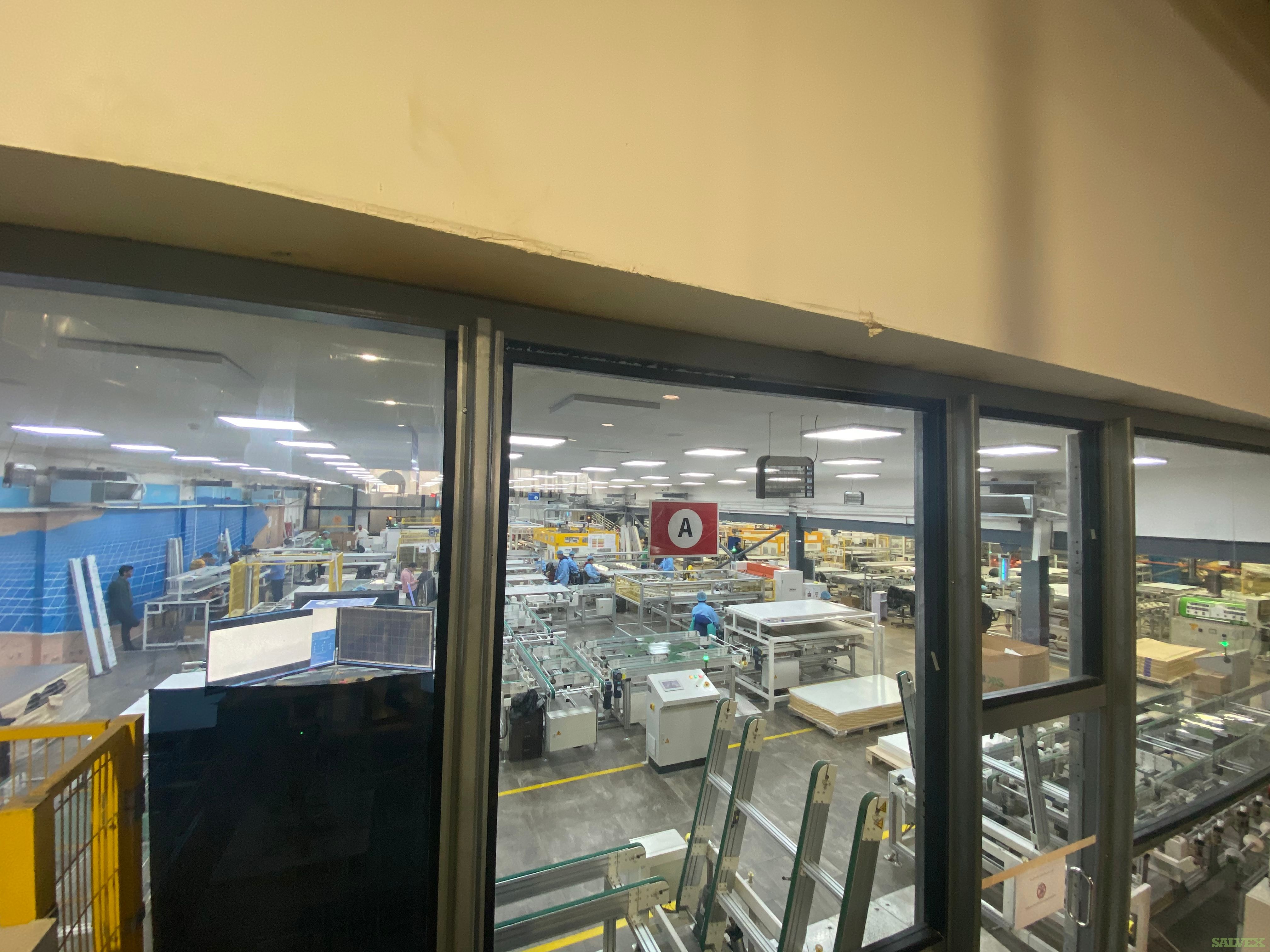

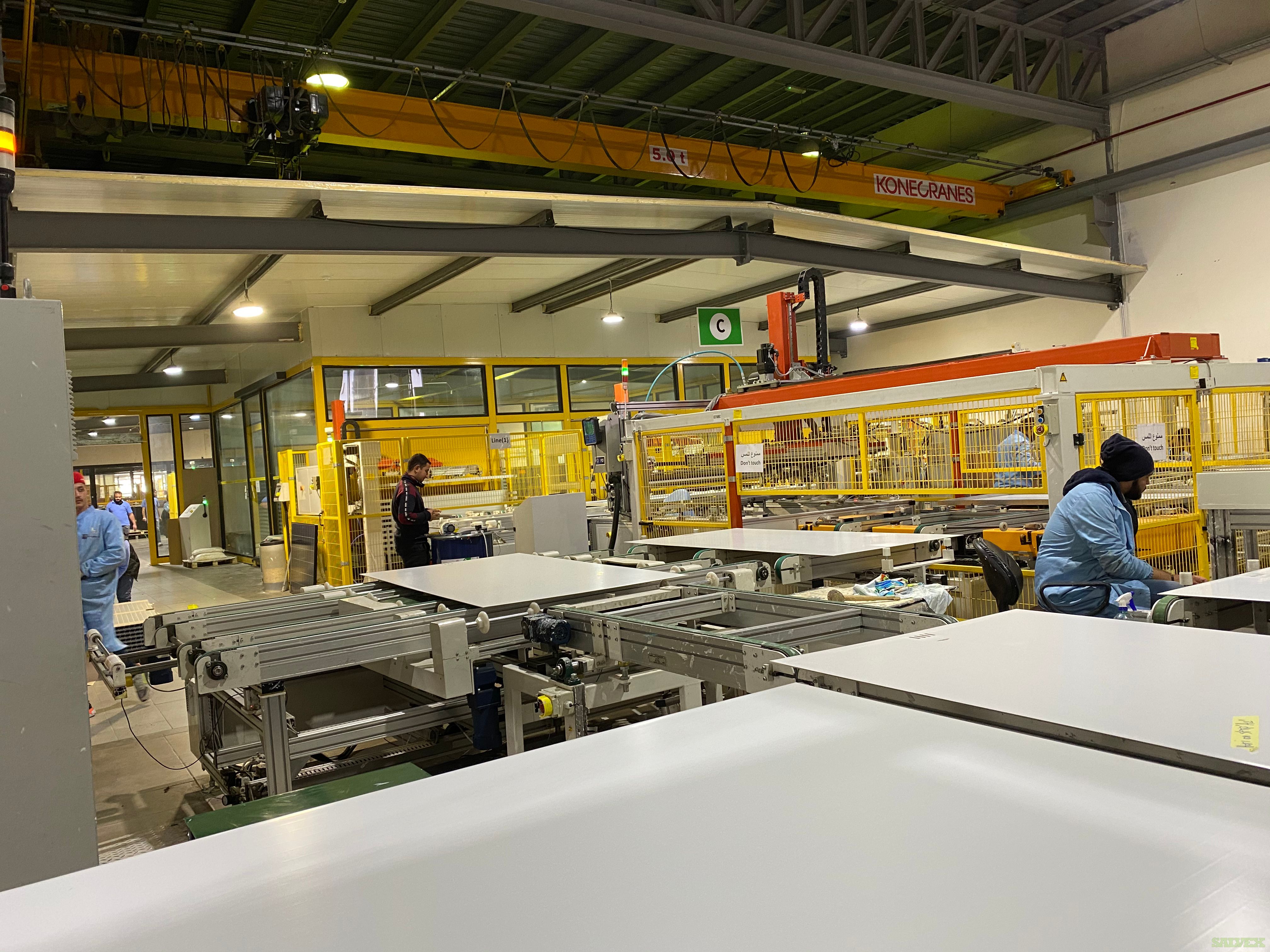

This 300MW Automatic PV Modules Production Line is no longer needed for the company's own operation and is being sold as an asset liquidation for its owner.
- Production Capacity: 110 – 120 modules/hour
- Module specification: monocrystalline, polycrystalline, bifacial cells;
- PV Cells: full cell 156mm x 156mm – 161mm x 161mm, 3 Busbars – 5 Busbars
- Module size: Length: 1640 – 2020mm Width: 990 – 1050mm;
- 410 Wp in high efficiency cells Mono Crystalline;
- 340 Wp in high-efficiency cells Poly Crystalline;
- 3 x NPC Laminator transformer:
- LM-SA-215 x 320-S: 3 modules Long Edge leading;
- NLM-230 x 450: 4 modules Long Edge leading;
- ALM-240 x 460: 4 modules Long Edge leading;
- Manufactured in 2018

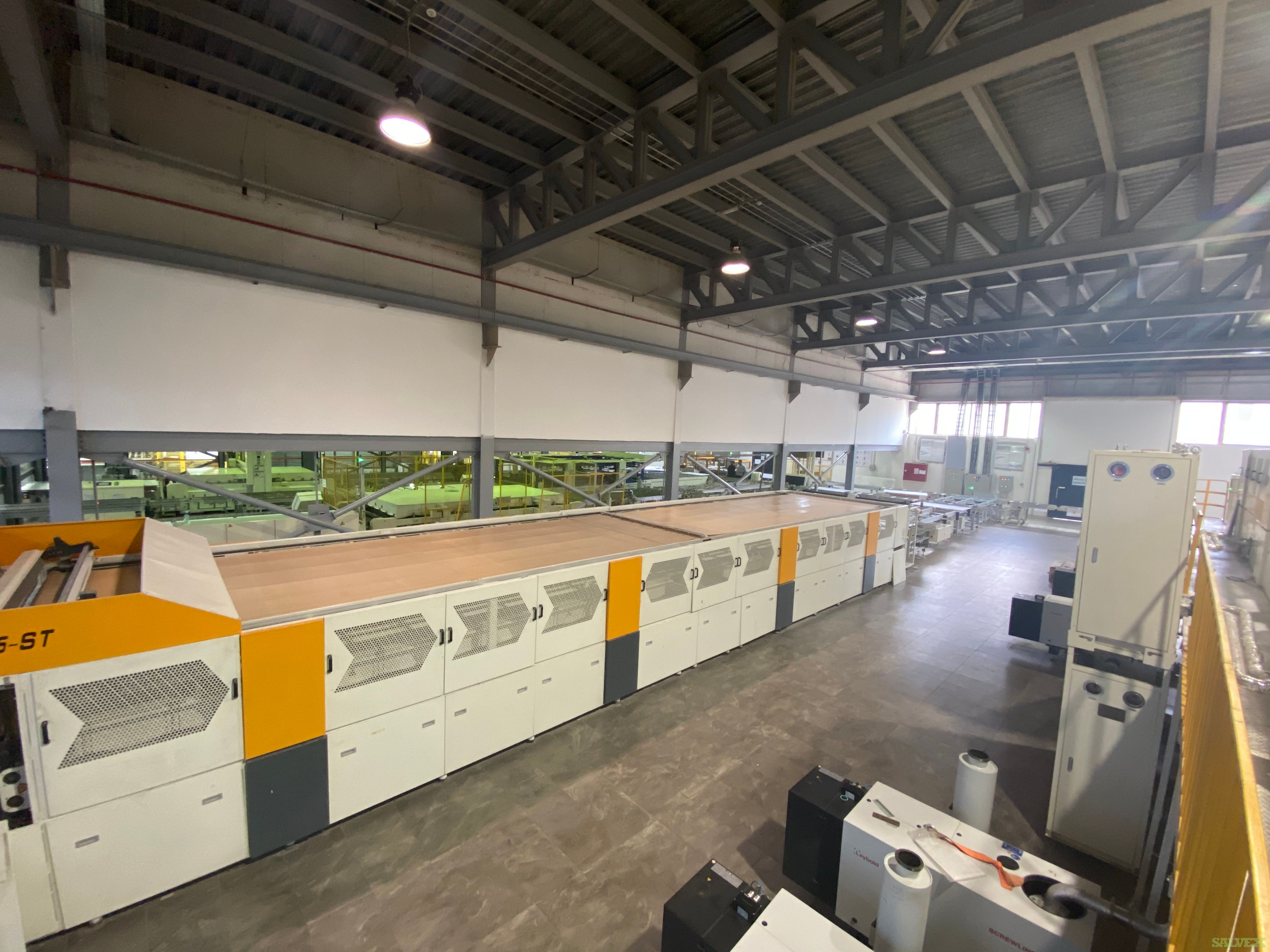

- 2 x Jinchen Laminator:
- JCCY2355ST: 5 modules Long Edge leading;
- JCCY2456DT: 5×2 modules Long Edge leading;
- Manufactured in 2019
- Jinchen Glass Loader;
- 12x Jinchen 1 axis conveyor;
- 1x Jinchen 2 axis conveyor;
- Jinchen EVA cutter;
- 2x Jinchen Manual rotary;
- 2x Jinchen Buffer;
- Autowell ATW CHD M3000 stringer;
- pi4 EL inspection system;
- Jinchen post lamination;
- Jinchen 180° flipper;
- 2x Jinchen control unit;
- Jinchen automatic glass loader;
- 14x Jinchen 1 axis conveyor;
- 11x Jinchen 2 axis conveyor;
- 2x Jinchen EVA cutter EVA rack;
- 4x Jinchen Buffer;
- 5x Jinchen Manual rotary;
- Jinchen automatic rotation;
- Jinchen Template placement;
- Jinchen Layup;
- Jinchen EL AOI;
- 2x Autowell ATW M4000 LRF Unit;
- Jinchen control unit;
- Jinchen post lamination;
- 2x Jinchen 180° flipper;
- 2x Jinchen Hi-Pot tester;
- Jinchen Layup;
- 3x Jinchen 1 axis conveyor;
- 2x Jinchen 2 axis conveyor;
- 2x Jinchen Manual rotary;
- 2x Autowell ATW M4000 LRF Unit;
Technical Specifications
Main Line Machines :
-
1- Tabbing and Stringing Machine
-
2- Automated Layup Machines
-
3- EL Tester
-
4- Laminators
-
5- Framing
-
6- Flash Testing
-
7- Conveyors
Supporting Machines :
-
1- EVA Cutting Machines
-
2- Glass Loader
-
3- Ribbon Cutting Machine
-
4- Template Placement machine
-
5- Trimming
-
6- Silicone Dispenser
Main Parameters of the production Line:
- Power supply: 380V; 3-phase, 5-wire 50HZ
- Air supply: CDA 0.6 – 0.8 MPA, Φ12mm Communication: VPN connection port
- Transmission speed: Pre-lam > 6m/min
- Smooth transmission. No scratch, damage on module Green cloth-cover belt and white cover belt
- Noise level: ≤ 80dbA
- Workshop temperature: 18 – 30 C; Humidity: < 75%, o dew Ceiling height of such shall be not lower than 4000mm
- Ground requirement: C25 concrete floor with 300mm thickness with length and width 300mm longer than the handler. Uniformity for the workshop shall be no more than 5mm per 2 m. For the installation on floor slab, an anchoring adhesive method should be used. This workshop is on the first floor.
Module Specifications
- Monocrystalline, Poly Crystalline, Bi-facial Cells
- Full cell 156mm x 156mm -161mm x 161mm 3BB-5BB
- Module size: L:1640 – 2020mm; W: 990 – 1050mm; Max. dimension of module for double in and out mode is 1700×997mm
- Module Output Power varies on dimension and cell efficiency
- Can reach ~410W in higher efficiency cells [Mono Crystalline]
- Can reach ~340 W in high-efficiency cells [ Poly Crystalline ]
- The cycle time: ≤ 32 seconds which is equivalent to 110module/hr
Main Raw Material
- PhotoVoltic cells [ Mono Crystalline, Poly Crystalline, Bifacial ] Connection wires [ Soldering Ribbons ]
- Flux for soldering
- Low Iron AR coated Glass
- EVA, and Backsheet
- Silicone
- Aluminum Frame Junction Box Connection
Seller Terms
- Salvex and the seller have the right to reject any and all offers.
- This product is sold AS IS, WHERE IS.
- Buyer is responsible for all taxes, duties, loading and freight charges.
- Seller does not offer any warranties or manufacturer warranties.
- Upon receipt of cleared funds, Seller will provide the Buyer a Release Order for item pick up. Title transfers from Seller to Buyer upon issuance of the Release Order.
- It is Buyer's responsibility to verify quantities and condition at the time of pick up. Once the product has been removed from Seller's location, there will be no adjustments based on quantity or condition.
