This item is no longer available.Pratt & Whitney PW121 Aircraft Engine (1 Unit) - Including Engine Stand
Attention
This item is no longer available.Pratt & Whitney PW121 Aircraft Engine (1 Unit) - Including Engine Stand Share with Buyers
-
-
| ID | : | 183007066 |
| Seller | : | |
| Seller Industry | : | |
| Current Asking Price | : | $ 900,000 |
| Quantity | : | 1 Units |
| Manufacturer | : | Pratt & Whitney View more items from this manufacturer |
| Condition | : | As Removed. - Including engine stand. |
| | : | |
| Product Location | : | |
| End Time | : | |
Item Description

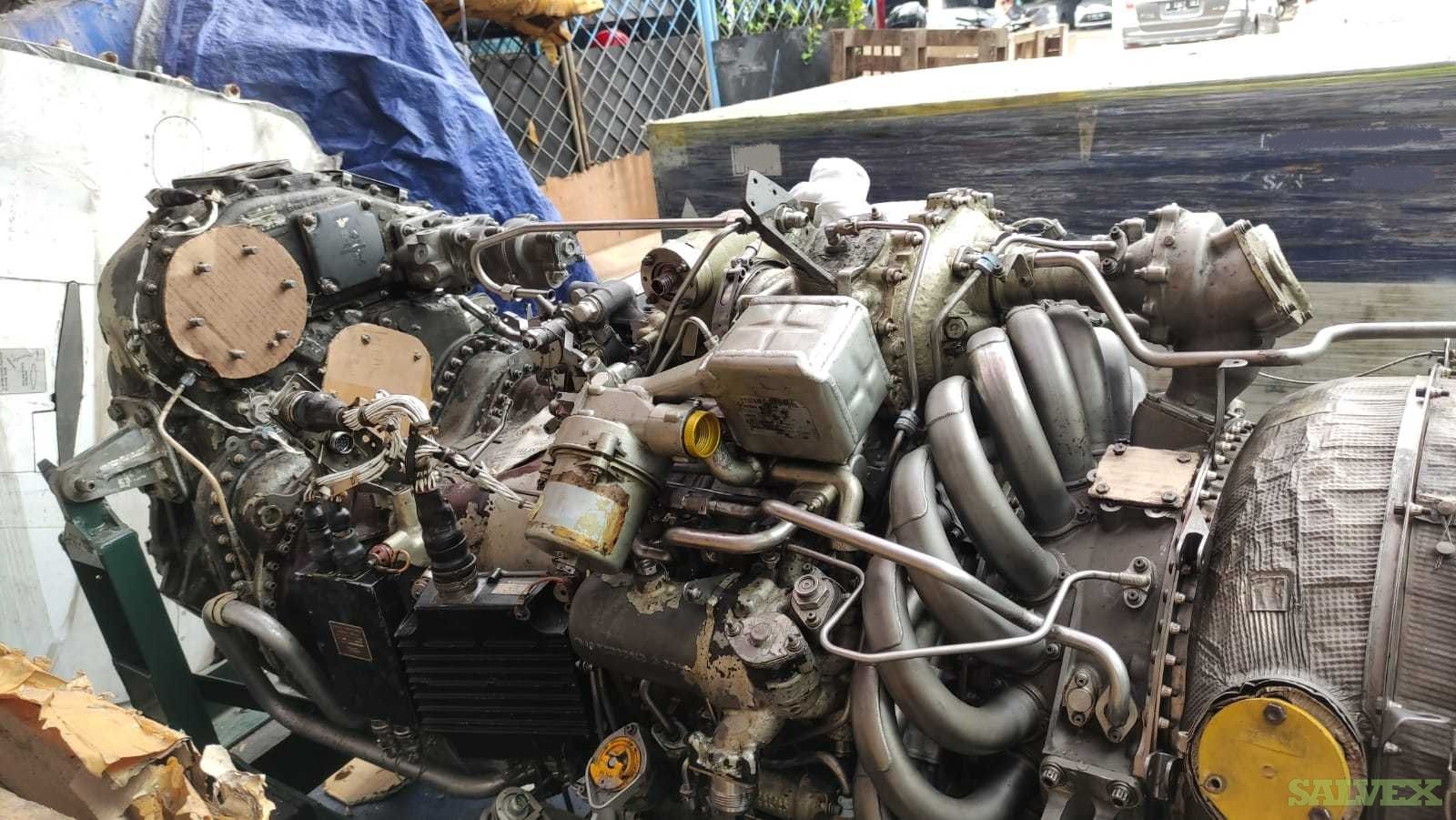

This PW121 Engine was involved in an insurance claim and is being sold by the insurance company to recover funds from loss.
Watch the Virtual Inspection Video here.
Details are listed below:
PW100 Engine Data Sheet
- Eng Model: PW121
- TSN: 38858:47
- CSN: 43,157
- TSO: 9404:47
- CSO: 10,320
- TSR: 451:44
- CSR: 516
RGB Accessories
| Description | Part Number |
| Overspeed Governor | 8210-16D |
| O/S Governor Pump | 8210-286 |
| NP Speed Probe | 3032242 |
| TQ Sensor | |
| TQ Sensor |
Turbomachinery Accessories
| Description | Part Number |
| EEC | 789843-5-010L6 |
| TSC/AFU | 30005-0000-54 |
| Ignition Exciter | 9049400-1B |
| Ignition Exciter | 9049400-1B |
| Cabin Air Valve | |
| Fuel Pump | 5009984C |
| HMU/MFC | 786392-15 |
| Fuel Heater | 10839F |
| Electrical Harness | 3114793-01 |
| IC Bleed Valve | |
| Servo Valve | |
| Oil Cooler | CPW3118263-01 |
| NL Speed Probe | 3033509 |
| NH Speed Probe | 3039242 |
| TQ Sensor | 3116942-01 |
| T1.8 Sensor | 3037603 |
| Fuel Nozzle Set | 3039975 |
| Flow Divider | 26345-1 |
| Fuel Flow Tx | TM512-204 |
| Oil Press Tx | 8017-110-00-10A |
| Low Oil Pressure Switch | 1156-100 |
LIFE LIMITED PARTS RECORD
| POSITION | LH |
| ENGINE MODEL | PW121 |
| DATE | 28-Apr-21 |
| DESCRIPTION | PART NO | TSN | CSN | TSO | CSO | TSLSV | CSLV |
| TURBOMACHINERY MODULE | 3104400-01 | 38858:47 | 43,157 | 9404:47 | 10,320 | 9404:47 | 10,320 |
| REDUCTION GEARBOX | 3104280-01 | 38858:47 | 43,157 | 9404:47 | 10,320 |
| Description | Part Number | TOTAL CYCLES | REMAINING CYCLES | MAX CYCLES | ABB'D CYC FACTOR | F.C F |
| IMPELLER, LP | 3040689 | 6,958 | 18,042 | 25,000 | 1 | 1.0 |
| DISK, LP | 3036212 | 13,561 | 16,439 | 30,000 | 10 | 1.0 |
| COVER, HP TURBINE, FRONT | 3049049-01 | 14,992 | 8 | 15,000 | 1 | 1.0 |
| COVER, HP TURBINE, REAR | 3041486 | 14,992 | 8 | 15,000 | 1 | 1.0 |
| IMPELLER, HP | 3043243 | 19,818 | 10,182 | 30,000 | 1 | 1.0 |
| DISK, HP | 3045591 | 14,992 | 8 | 15,000 | 1 | 1.0 |
| DISK, 1st STAGE | 3038613 | 27,308 | 2,692 | 30,000 | 10 | 1.0 |
| DISK, 2nd STAGE | 3033914 | 13,561 | 16,439 | 30,000 | 10 | 1.0 |
| SEAL, AIR INTERST AGE | 3041474 | 14,992 | 8 | 15,000 | 1 | 1.0 |
| HPT BLADE | 3115301-01 | 5,368 | 9,632 | 15,000 |
