Eaton VacClad-W 27 kV Switchgear Lineup (9 Sections, 14 Breakers) with Approx. 6,000 Ft MV Cable
Welcome to Salvex Marketplace where you can buy surplus, salvage, and discounted Electrical Equipment as part of a commercial repurposing strategy.
Photo Disclaimer: Photos are provided for general reference only and may not accurately represent the current condition, quantity, specifications, or exact items included in the sale. Items, equipment, accessories, components, packaging, or other property visible in the photos may not be included in the sale. Photos may also be outdated, representative, or supplied by third parties. Buyer inspection and independent verification are strongly recommended before purchase. Buyers should rely on the confirmed sale terms and independently verify what is included before making a purchasing decision.
Eaton VacClad-W 27 kV Switchgear Lineup (9 Sections, 14 Breakers) with Approx. 6,000 Ft MV Cable Share with Buyers
-
-
Welcome to Salvex Marketplace where you can buy surplus, salvage, and discounted Electrical Equipment as part of a commercial repurposing strategy.
| ID | : | 183065440 |
| Seller | : | |
| Seller Industry | : | |
| Quantity | : | 1 Lot (complete 9-section lineup) |
| Manufacturer | : | |
| Condition | : | Unused never installed or energized. Purchased new in 2022 (original contract value $2.14M) for an agricultural campus project that was not built as designed. Manufactured at the Eaton plant, April 2022. Stored indoors in a dry warehouse since delivery, shrink-wrapped on skids, complete and unmodified as shipped. No damage. |
| | : | |
| Product Location | : | South Carolina, United States |
| End Time | : | |
| Time Remaining | : | 4 days 4 hours 45 minutes |
| Trader | Raquel Machado +1 (832) 699-0477 |
Item Description

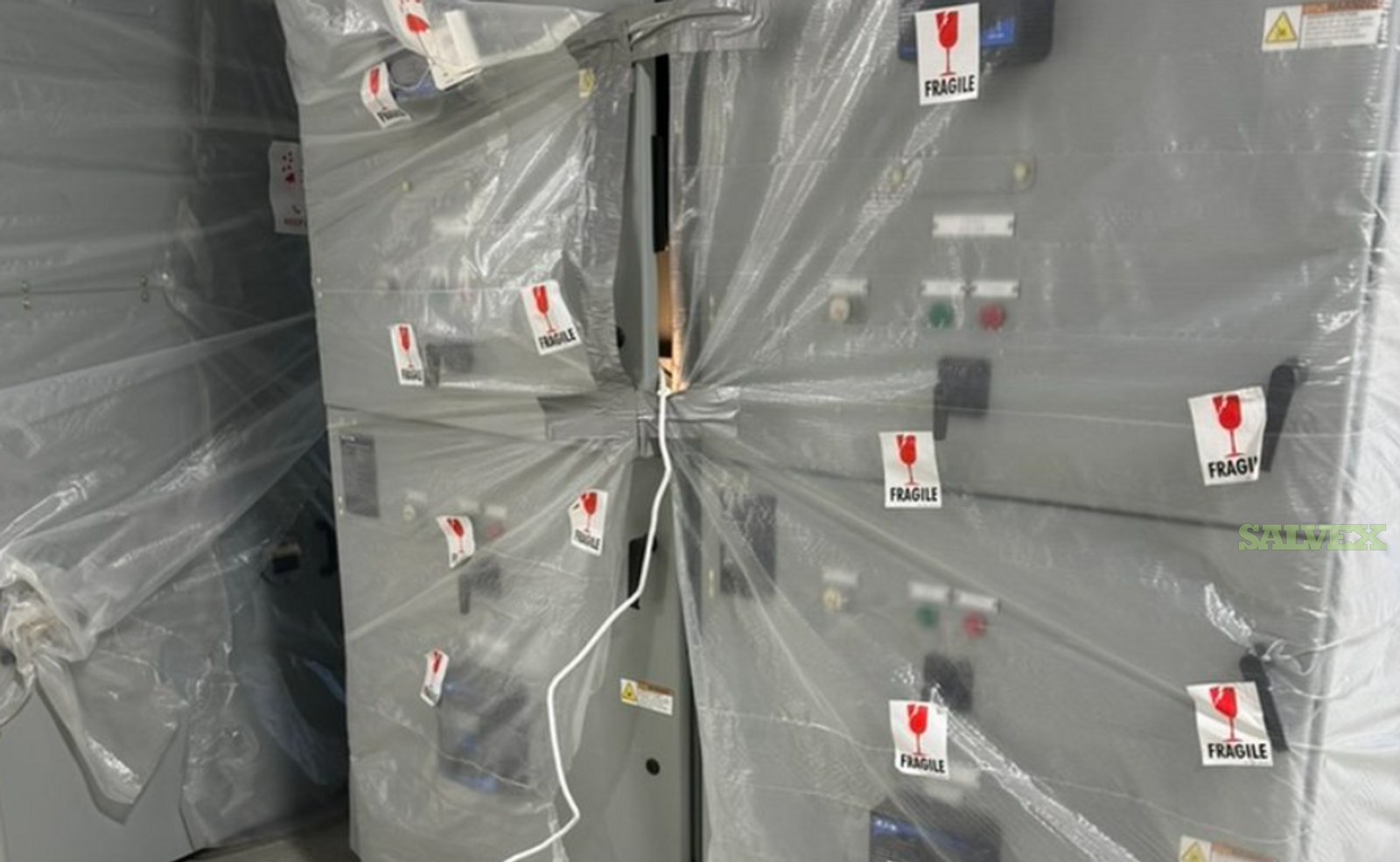

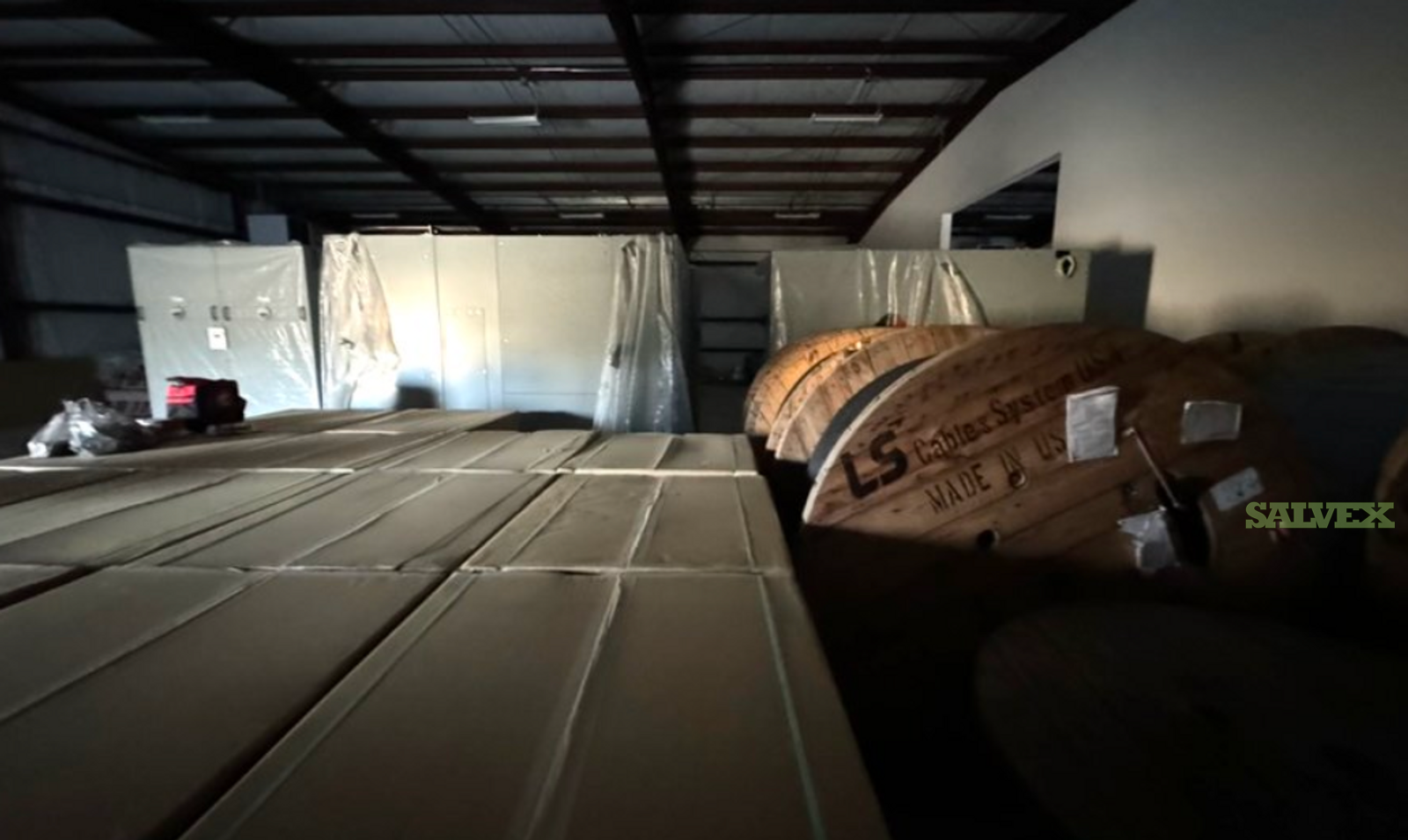

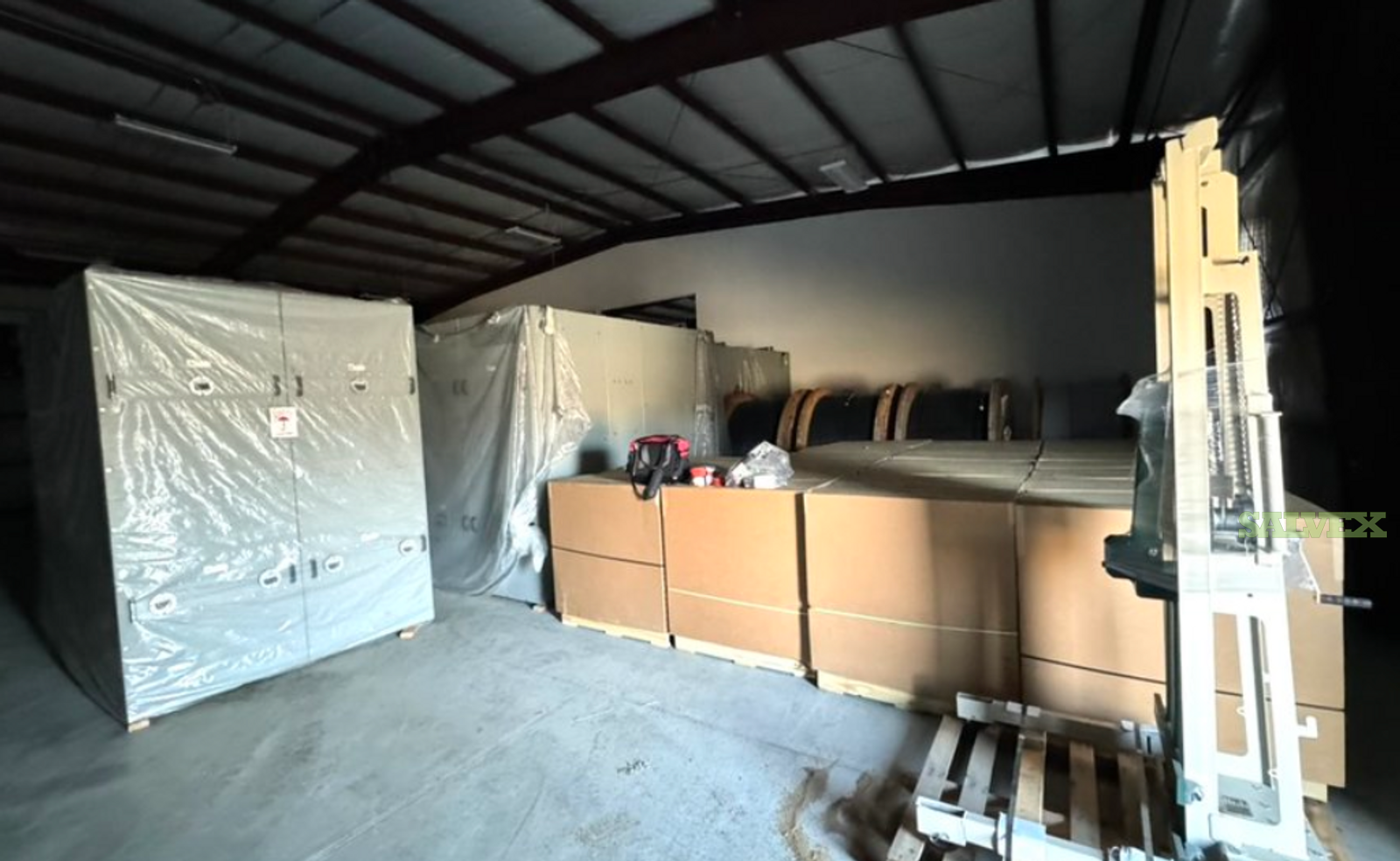

Complete Eaton VacClad-W (VCP-W) indoor metal-clad switchgear lineup, manufactured in April 2022. Surplus, never installed or energized. The nine-section lineup has been stored indoors, shrink-wrapped on skids, in Orangeburg. Approximately 6,000 feet of new 35 kV medium-voltage cable is included.
Switchgear specifications
| Item | Details |
|---|---|
| Configuration | 9 vertical sections, 2-high; approximately 27 ft overall |
| Maximum voltage | 27 kV |
| Insulation ratings | 125 kV BIL; 60 kV power-frequency withstand |
| Main bus | 2,000 A |
| Short-time / peak momentary | 40 kA for 2 seconds / 108 kA |
| Frequency / enclosure | 60 Hz / indoor NEMA 1 |
| Control power | 125 VDC |
| Standard | IEEE C37.20.2 |
| Approximate size | 36 in W × 118 in D × 100 in H per section |
| Approximate total weight | 30,00035,000 lb |
Breakers and protection: Fourteen 270VCP-W40 vacuum circuit breakers are included: one 2,000 A main and thirteen 1,200 A feeders, with 3-cycle operation and 125 VDC motor, close and trip controls. The lineup also has one fully equipped future 1,200 A cell, one Eaton EDR-5000 main relay, thirteen EDR-3000 feeder relays and one PXM3000 power-quality meter.
Instrument transformers and equipment: Two sets of 2000:5 CTs, thirteen sets of 150:5 CTs, two ABB VIZ-12 VTs rated 24960/120 V, and a 15 kVA CPT rated 24940/240-120 V with fuse drawer. Other features include 21 kV arresters, 22 IRISS infrared viewing windows, Electroswitch control switches, MOC/TOC switches, remote-racking receptacles, space heaters and a Kirk key interlock. A seismic certificate is available.
Accessories and documentation included: Breaker test cabinet and test jumper, lifting yoke, lift device, dockable dolly, ramp, levering crank, instruction book and complete Eaton IFC drawing package, including outlines, one-line and three-line diagrams, schematics, wiring diagrams and bill of materials.

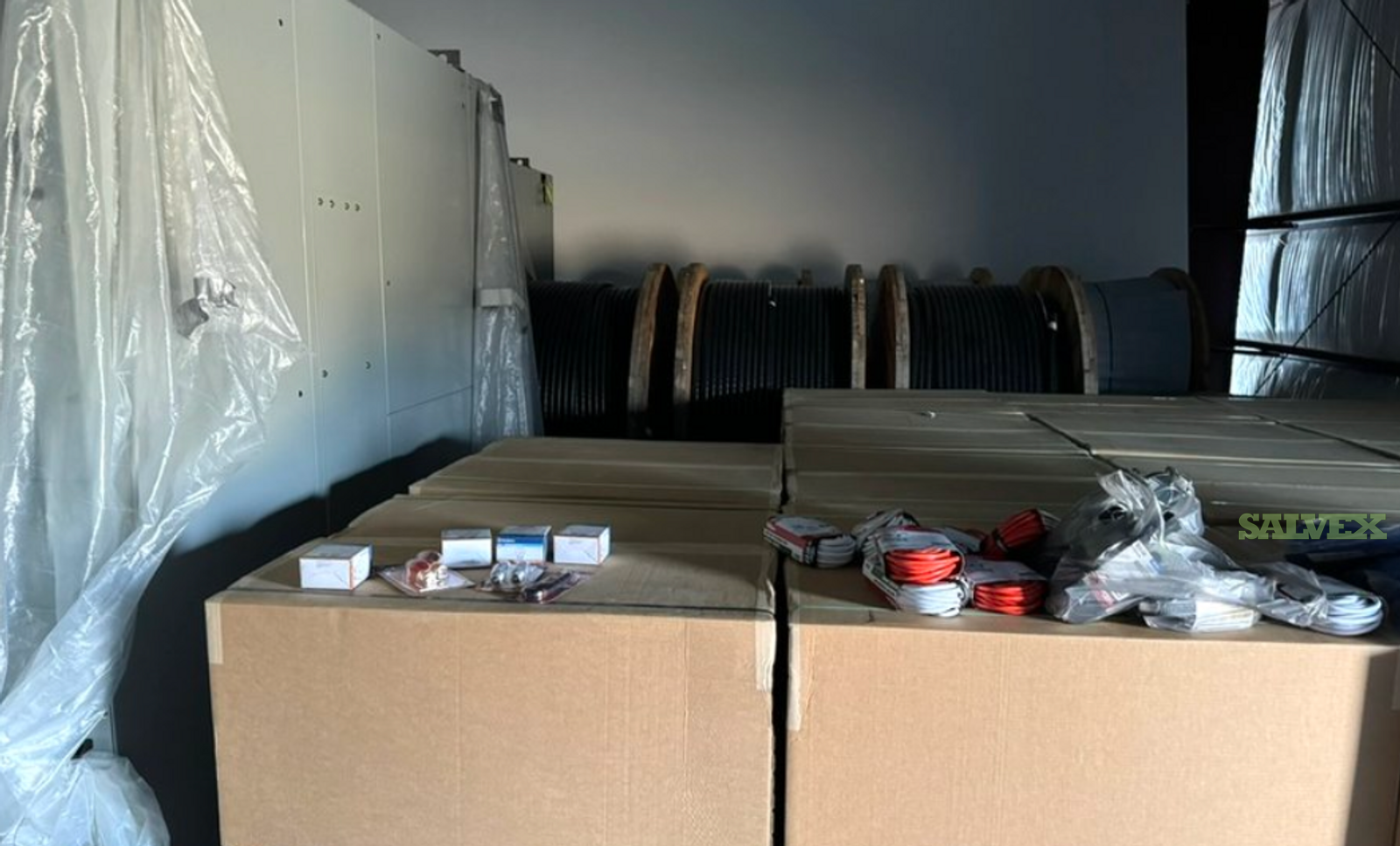

Medium-voltage cable included
Approximately 6.5 reels / 6,000 ft of new LS Cable & System 750 kcmil aluminum cable, rated 35 kV at the 133% insulation level, with EPR insulation, copper-tape shield and PVC jacket. The cable is identified as P/N 1267283 and marked to UL 1072 and ICEA S-93-639. Full original reels contain approximately 932 ft and weigh approximately 3,100 lb each. The cable corresponds to the lineups 750 kcmil main terminations.
This package may suit utility, solar or BESS interconnect, industrial, and data-center service entrance projects. Use on systems below 27 kV, including 24.9 kV, 23 kV, 13.8 kV and 12.47 kV, is subject to engineering review and appropriate VT/CPT ratio changes.
Manufacturer references: Eaton S.O. MZ084X3 / G.O. MCS0011097-005.
Buyer arranges freight and rigging.
