FOR SALE


One complete used HFO cogeneration power plant with a total configured capacity of approximately 108.7 MW, rounded to 109 MW in the technical documentation.

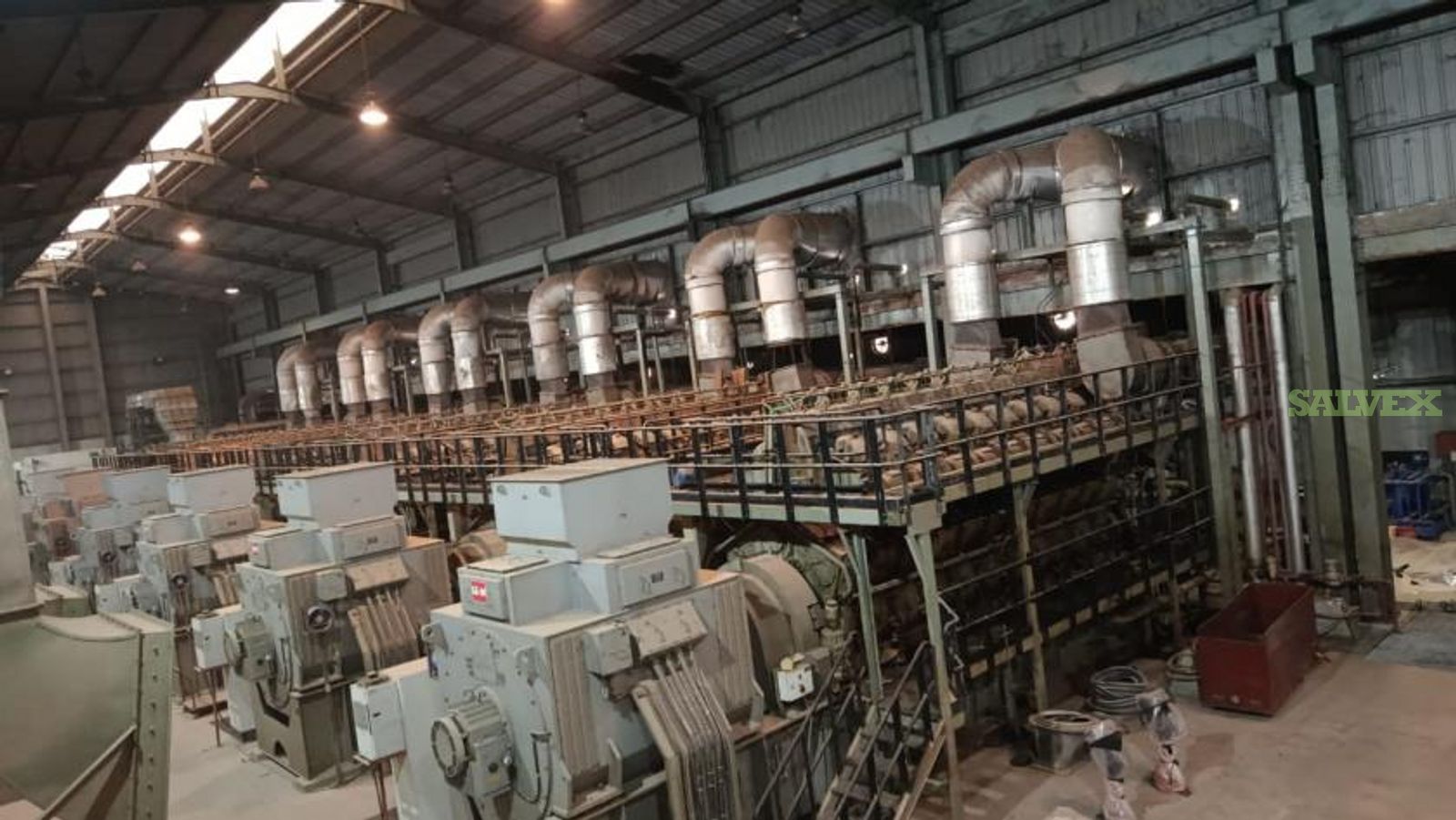

The plant consists of twelve MAN B&W 18V32/40CD engine-generator sets rated at 8.75 MW each, providing 105 MW of engine-based generation, together with one 3.7 MW steam-turbine cogeneration set.


Primary Generating Equipment:

• 12 × MAN B&W 18V32/40CD engine-generator sets
• Output per generating set: 8.75 MW
• Combined engine-generator output: 105 MW
• 12 × Hyundai alternators rated at 10,324 kVA
• Year: 2014
• Average engine operating hours: Approximately 8,000 hours
• 1 × Triveni steam-turbine cogeneration set rated at 3.7 MW
• 1 × WEG alternator rated at 4,625 kVA
• Total configured plant output: 108.7 MW


Fuel, Lubrication and Engine Systems:

• 12 × Alfa Laval lube-oil purifiers
• 12 × 11 kW ABB pre-lube pumps
• 12 × Boll & Kirch lube-oil filters
• 12 × Alfa Laval M15-BFG heat exchangers with ABB motors
• 12 × 36 kW Elmess engine preheaters with ABB motors
• 4 × 7.5 kW Alfa Laval fuel-booster pump and heater sets
• 2 × 5.5 kW SPX NTC pumps with ABB motors
• 2 × 2.2 kW IMO lube-oil drain pumps
• 4 × 2.2 kW IMO lube-oil filling pumps
• 2 × Alfa Laval 9.5 kW diesel supply-unit pumps
• 2 × IMO HFO transfer pumps
• 4 × Alfa Laval HFO separators
• 2 × Alfa Laval 9.5 kW HFO supply-unit pumps
• 2 × IMO 2.2 kW HFO sludge pumps


Cooling, Steam and Auxiliary Systems:

• 6 × Alfa Laval 2,200-liter main boilers
• 1 × Alfa Laval auxiliary boiler
• 2 × 22 kW feed-water pumps
• 6 × circulating-water pumps
• 2 × 55 kW cooling-tower circulating pumps
• 2 × 3.7 kW cooling-tower pumps
• 2 × 300 kW boiler makeup-water pumps
• 348 × 3 kW radiator motors
• 35 × radiator panels
• 26 × 7.5 kW ventilation motors
• 4 × air compressors with WEG motors
• 1 × Cummins 550 kVA black-start generator with Stamford alternator


Electrical, Control and Distribution Equipment:

• 12 × Woodward GCP panels
• 12 × Siemens EAP sets
• 12 × Siemens ECP sets
• 2 × Siemens CAP sets
• Siemens steam-turbine, MCC, cogeneration, CCP, PMCC, PCC and TLCP panels
• 21 × ABB VCB panels
• 12 × 7.2 kV NGR vacuum-contactor sets
• 2 × UPS sets
• UPS distribution equipment
• 2 × 415 V battery chargers
• 270 × 200 Ah batteries
• 2 × 2,000 kVA station transformers
• 3 × 47,000 kVA power transformers
• 132 kV feeder control and protection panel
• 3 × 132/11 kV feeder control and protection panels
• 132 kV metering panel
• 3 × generator-transformer tap-changer panels
• AC and DC distribution boards
• Ventilation and boiler-control panels


Water, Fire Protection and Storage:

• Main fire-fighting water pump rated at 75 kW
• Fire-fighting jockey pump rated at 9.3 kW
• Fire-fighting diesel-engine pump rated at 69.18 kW
• Fire-control panel
• 2 × 3.7 kW water-filling pumps
• 2 × raw-water supply pumps
• Demineralized-water plant control panel
• 1 × 200 kL raw-water tank
• 2 × 25 kL demineralized-water tanks
• 2 × 5 kL softener tanks
• 2 × 4,000 kL storage tanks
• 1 × 500 kL buffer tank
• 2 × 250 kL day tanks
• 1 × 1,000 kL diesel tank
• 2 × 60 kL lube-oil tanks
• 2 × 30 kL sludge tanks


Frequently Asked Questions

Q: Why is the plant described as both 108 MW and 109 MW?
A: The twelve main generating sets provide 105 MW, and the steam-turbine set provides another 3.7 MW. The configured total is 108.7 MW, which the technical document rounds to 109 MW.

Q: How many main generating sets are included?
A: Twelve MAN B&W 18V32/40CD generating sets are included.

Q: Is cogeneration equipment included?
A: Yes. The plant includes a 3.7 MW Triveni steam-turbine set with a 4,625 kVA WEG alternator.

Q: What are the reported engine operating hours?
A: Average engine operating hours are reported at approximately 8,000.

Q: Is black-start equipment included?
A: Yes. A 550 kVA Cummins black-start generator with a Stamford alternator is included.

Q: Does the offering include transformers and high-voltage equipment?
A: Yes. The scope includes station transformers, three 47,000 kVA transformers, 132 kV protection and metering equipment, switchgear, distribution boards and control panels.
