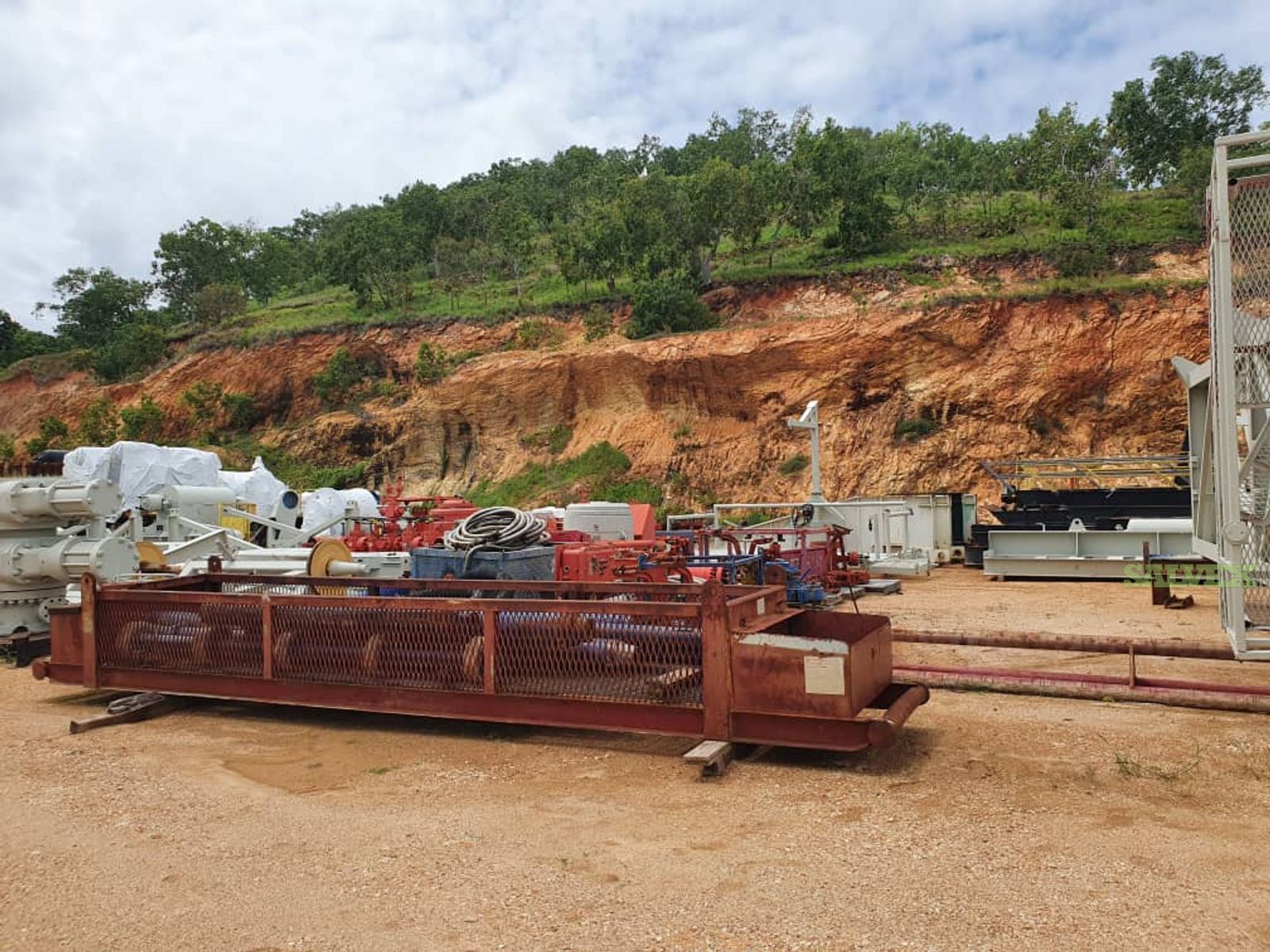

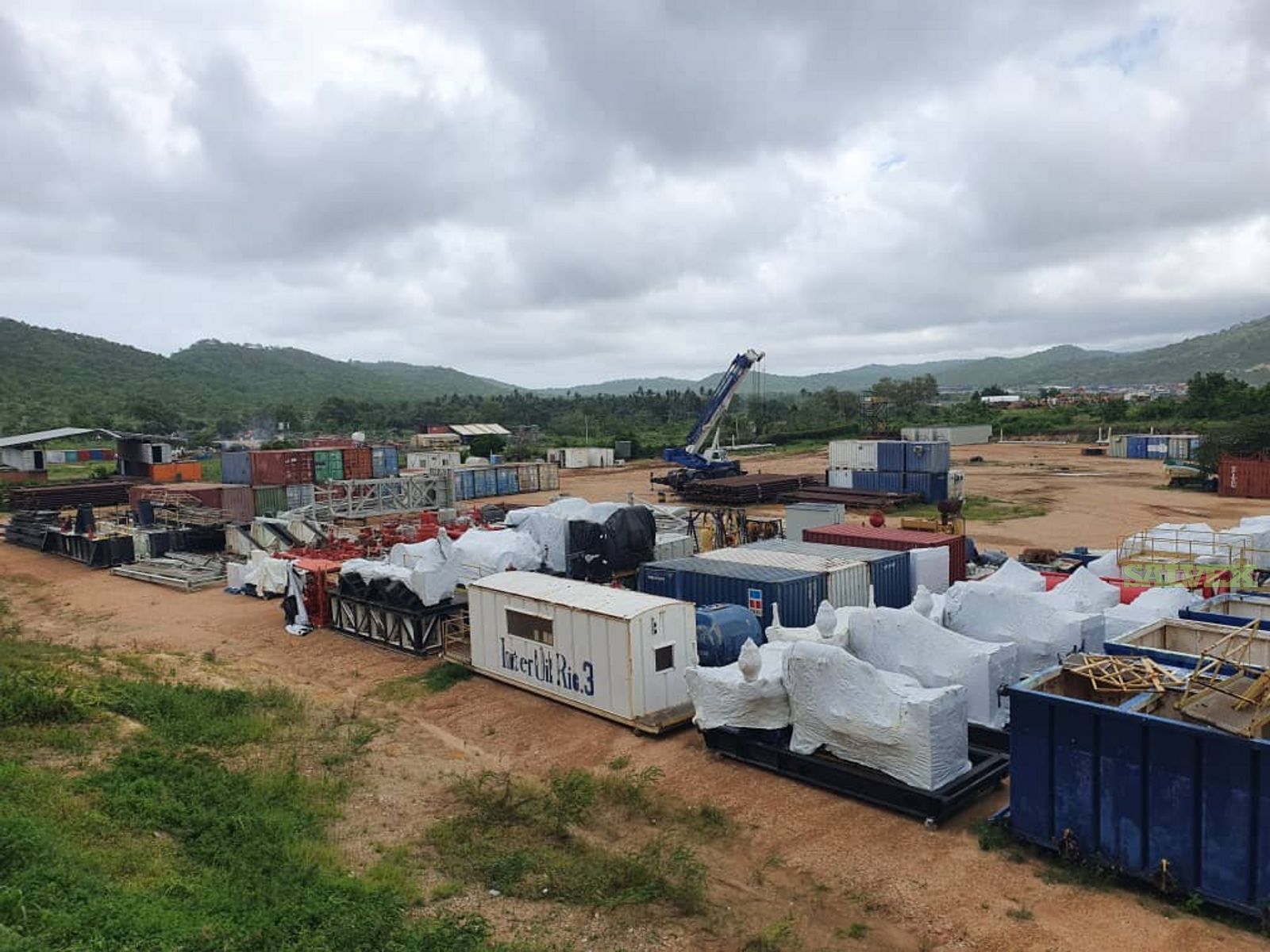

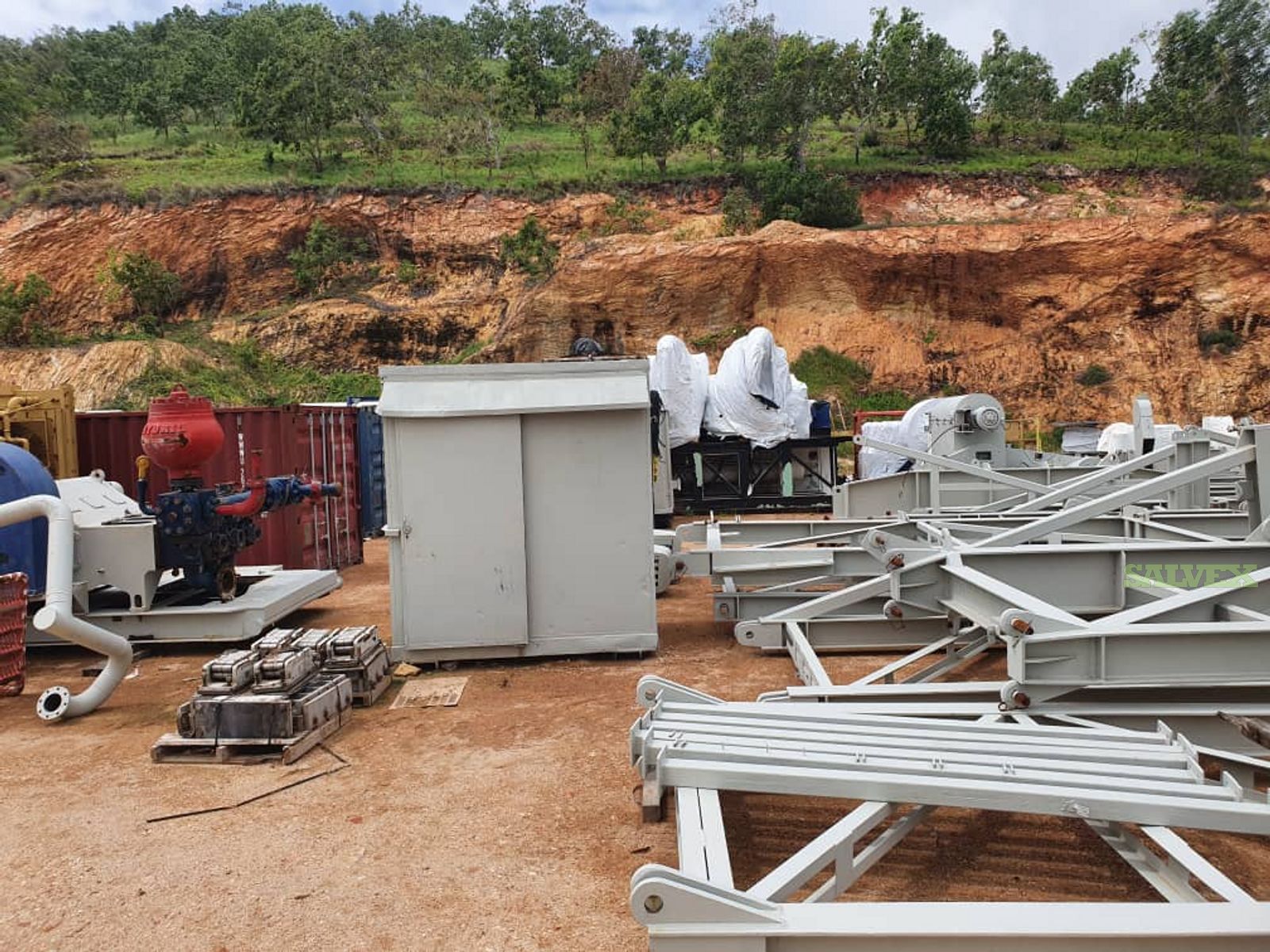

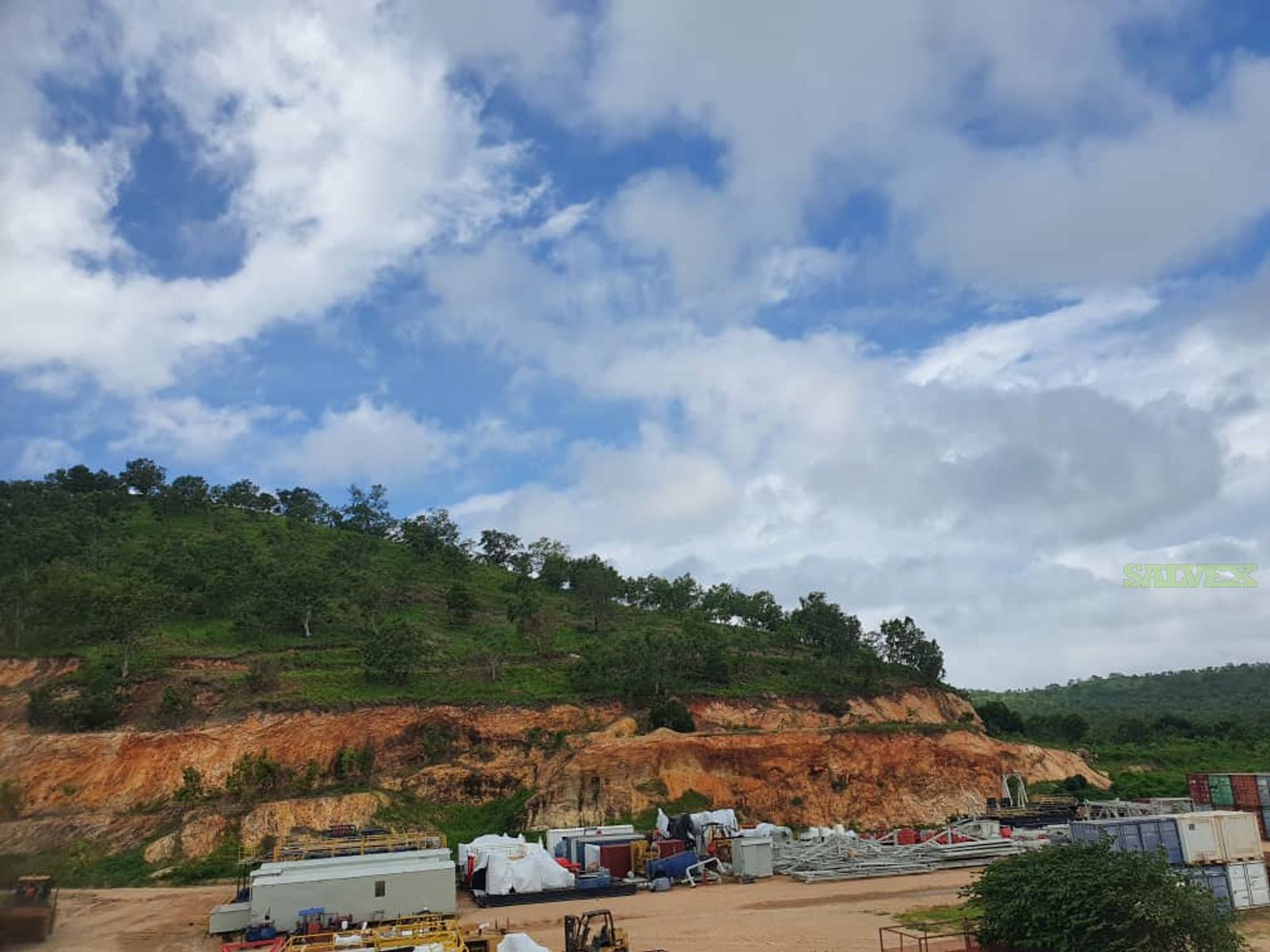

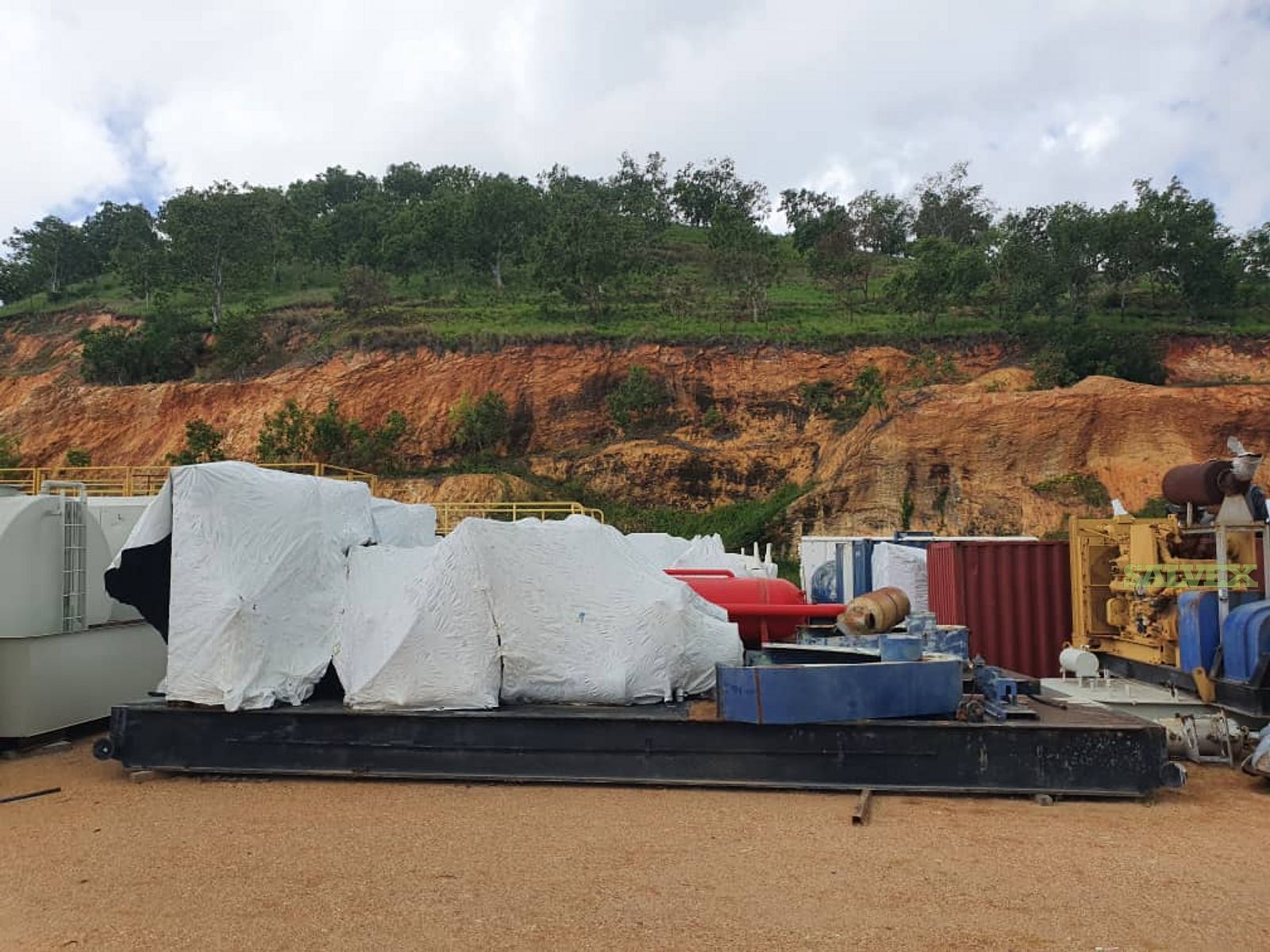

1500 HP OIME SL Mechanical Drilling Rig (1 Unit)
Welcome to Salvex Marketplace where you can buy surplus, salvage, and discounted Land Rigs and Equipment as part of a commercial repurposing strategy.
1500 HP OIME SL Mechanical Drilling Rig (1 Unit) Share with Buyers
-
-
Welcome to Salvex Marketplace where you can buy surplus, salvage, and discounted Land Rigs and Equipment as part of a commercial repurposing strategy.
| ID | : | 183038131 |
| Seller | : | |
| Seller Industry | : | |
| Quantity | : | 1 Rig |
| Manufacturer | : | |
| Condition | : | Used All the items are "as is, where is". Buyer is responsible for loading, freight and logistics to final destination. |
| | : | |
| Product Location | : | Papua New Guinea |
| End Time | : | |
Seller Description
This Lot of 1500 HP OIME SL Mechanical Drilling Rig (1 Unit) is no longer needed for company's own operation and is being sold as an asset liquidation for its owner.
Details are listed below:
- 1500 HP Helli-Portable Top Drive Derrick16,000 feet~5,000 Metre Well Capacity
- IOC E&P Wahoo-1 Well (2014) Successful Drilling to 5,213 ft/1589m Total Depth
- IOC Acquisition through High Arctic Energy Services (2010-2012)
Rig Specifications :
| DRAWWORKS | OIME SL1500, 1500 HP, 900,000 lb, Mechanical compound drive powered by 3 engines, Hydromatic auxiliary brake, Foster catheads |

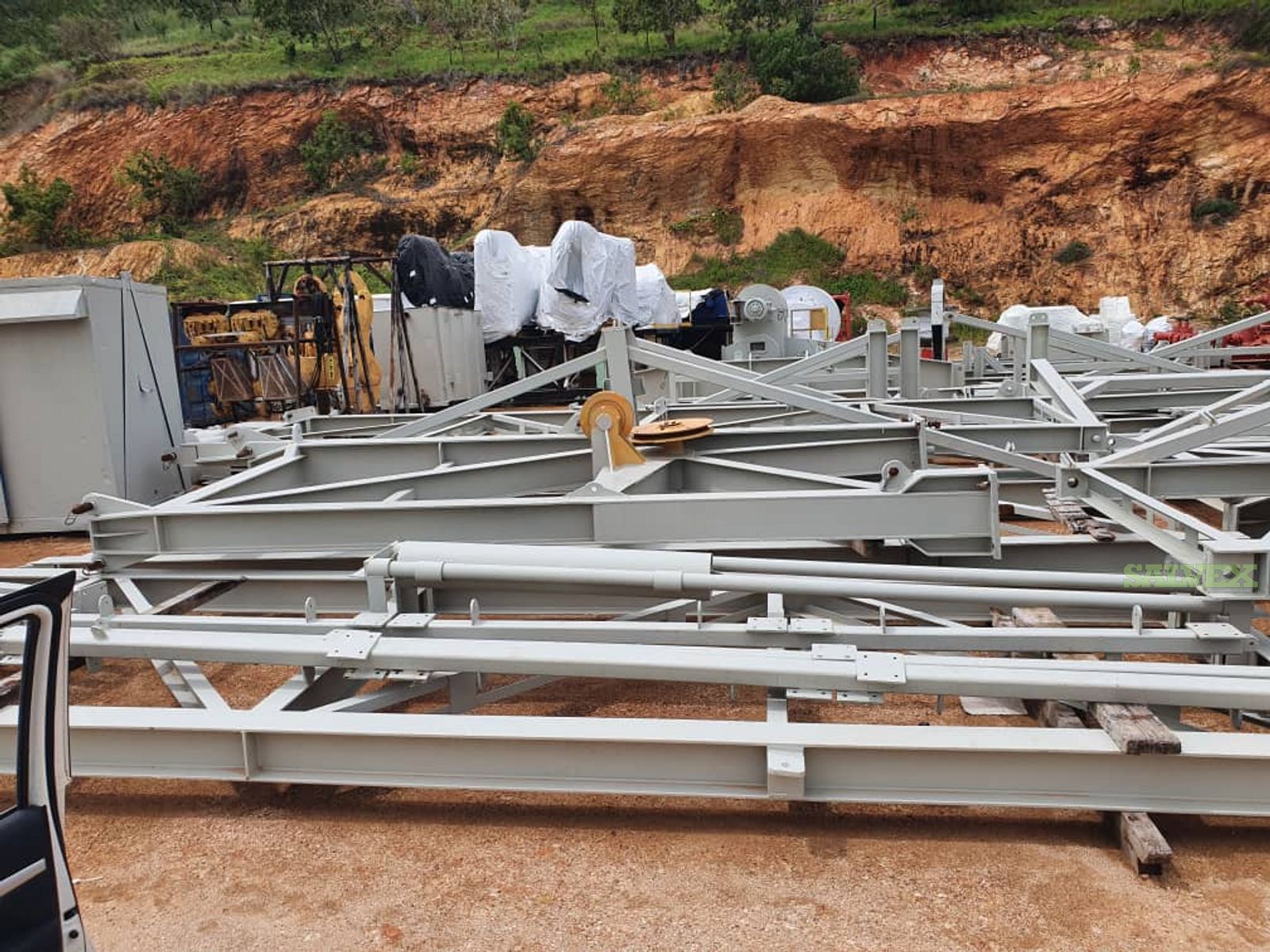

| MAST | Parco Cantilever/ Split Level, 142 ft. (handles triple per stand), 1,050,000 lbs SHL, 1,050,000 lbs (5000m with 5 drill pipe or 6000m with 3-1/2 drill pipe |
| SUBSTRUCTURE | Parco Split Level, 682,500 lbs & 1,125,000 lbs simultaneous with hook and set-back, 6.40 m under Rotary Beams, |
| AIR COMPRESSOR | Cold Start Air Compressor: Diesel Drive Lister with Quincy 390 Pump Primary Air Compressor: Electric Motor Drive with Quincy 540 Pump 2012 Secondary Air Compressor: Electric Motor Drive with Quincy 390 Pump |
| ROTARY TABLE | Gardner Denver 27-1/2 , powered by Catworks Engineer 600 HP |
| BLOCKS | Gardner Denver 400 Ton, 6X60, BJ Hydrahook 1509 |
| WINCHES | (2) 6,000 lbs rig floor winches (1) 4,000 lbs man rider winch (2) 80,000 lbs BOP handling winches |
| KELLY | 5-1/4 hexagonal Kelly |

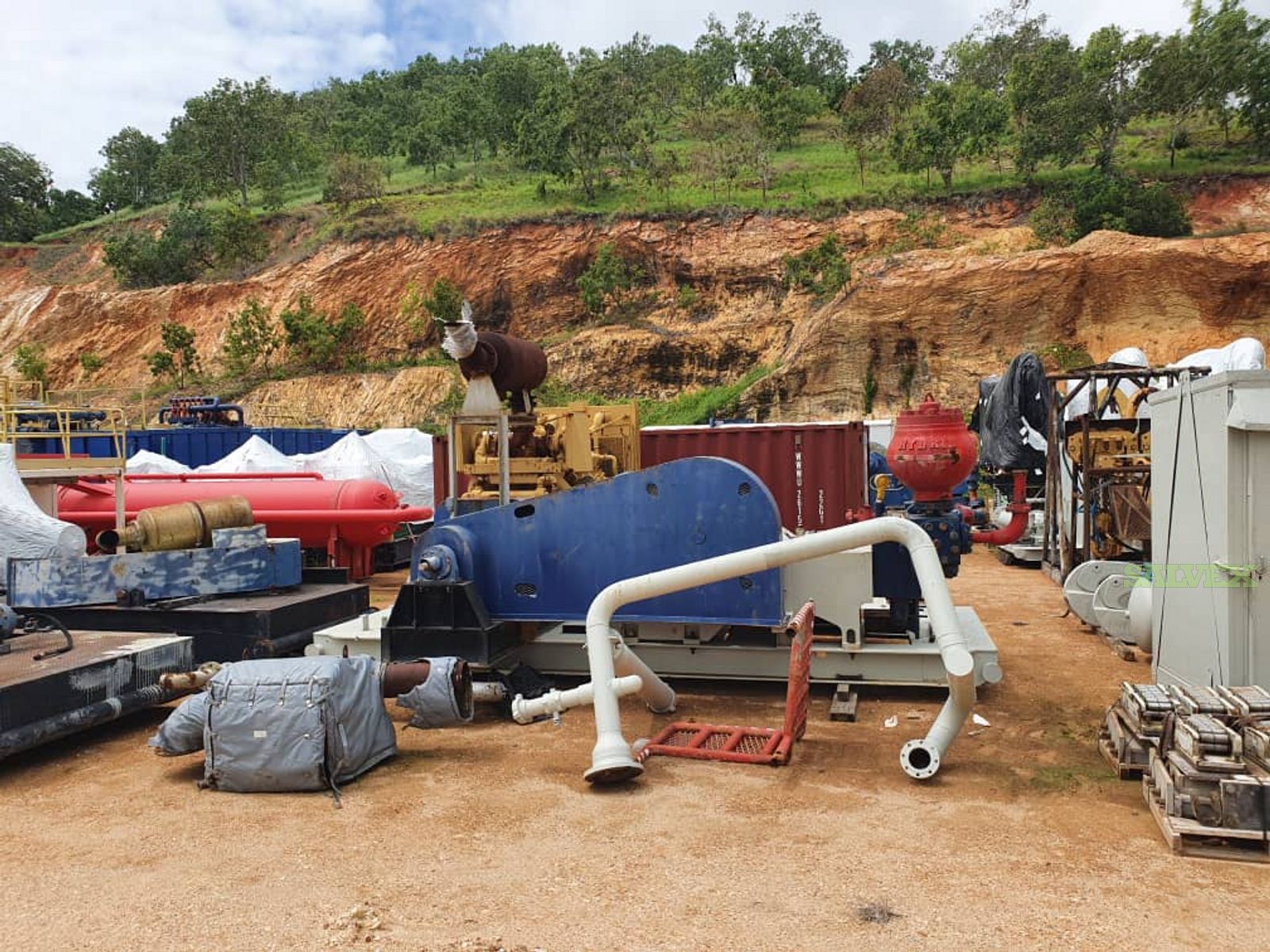

| MUD PUMPS | Gardner Denver PZ-8, belt driven by Caterpillar D-379 Diesel Engines F-1300 Model, belt driven by Caterpillar Rebuilt D-399 Diesel Engines BH800 Model, chain case driven by Caterpillar C-18 Diesel Engines |

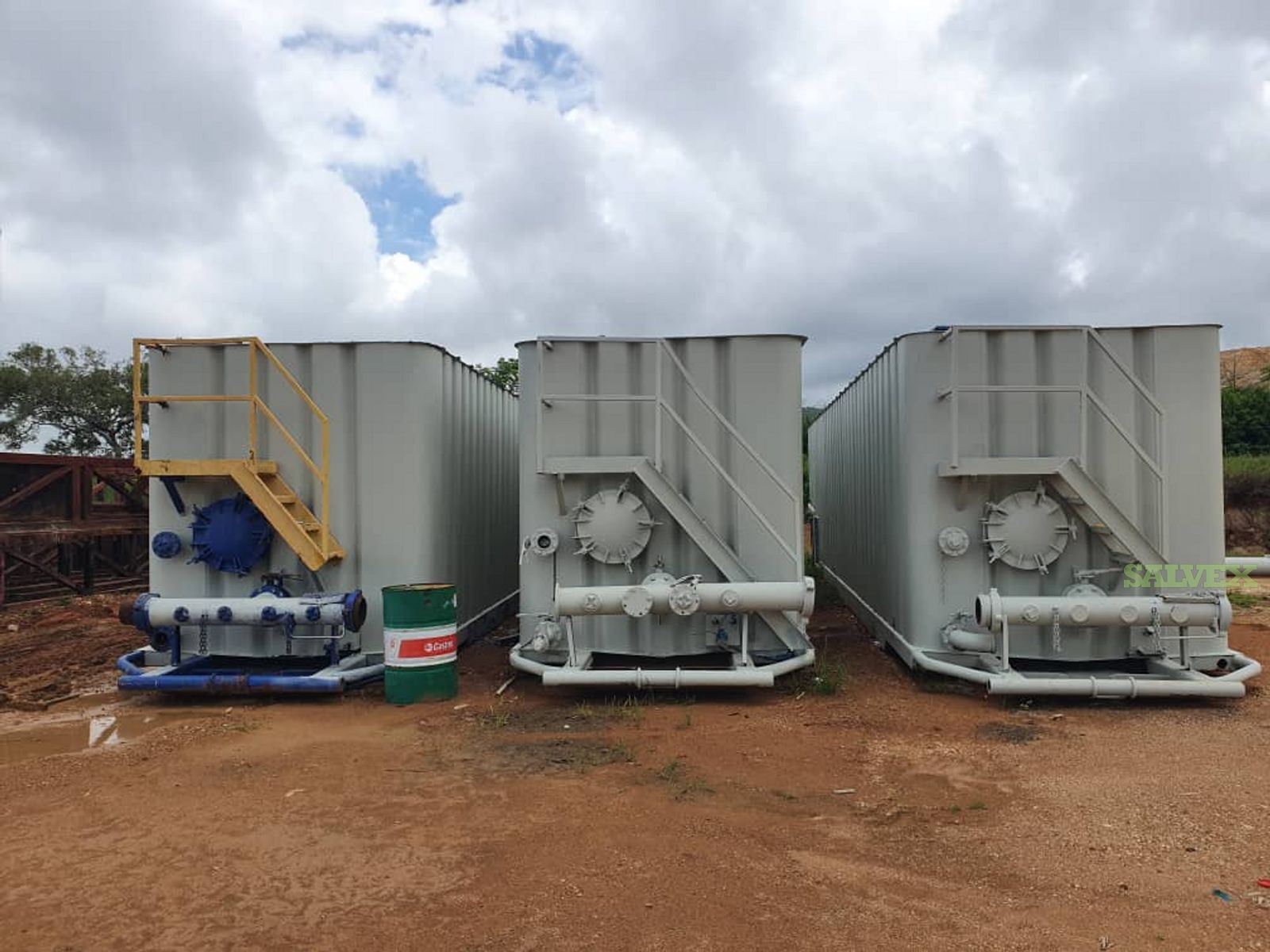

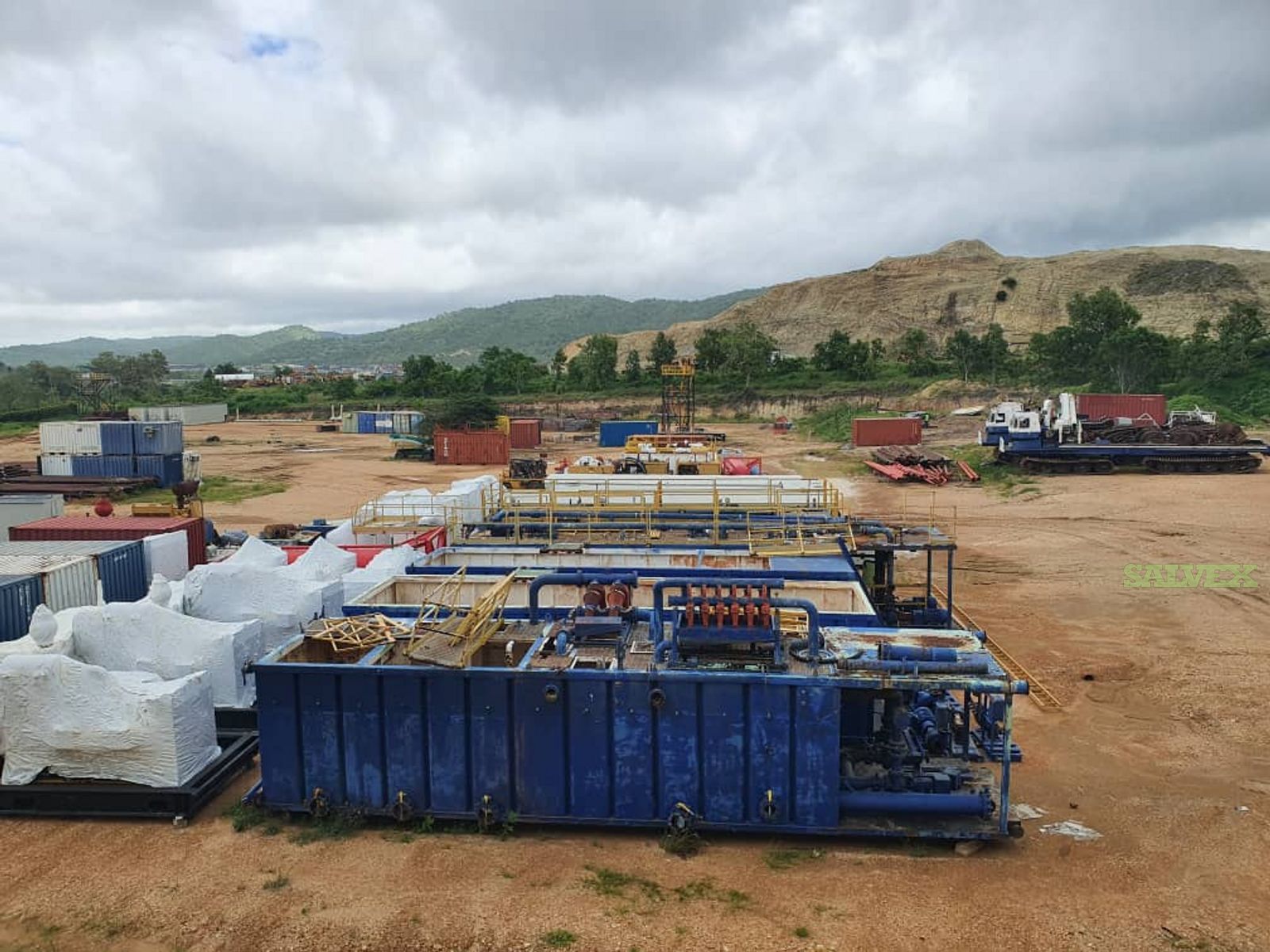

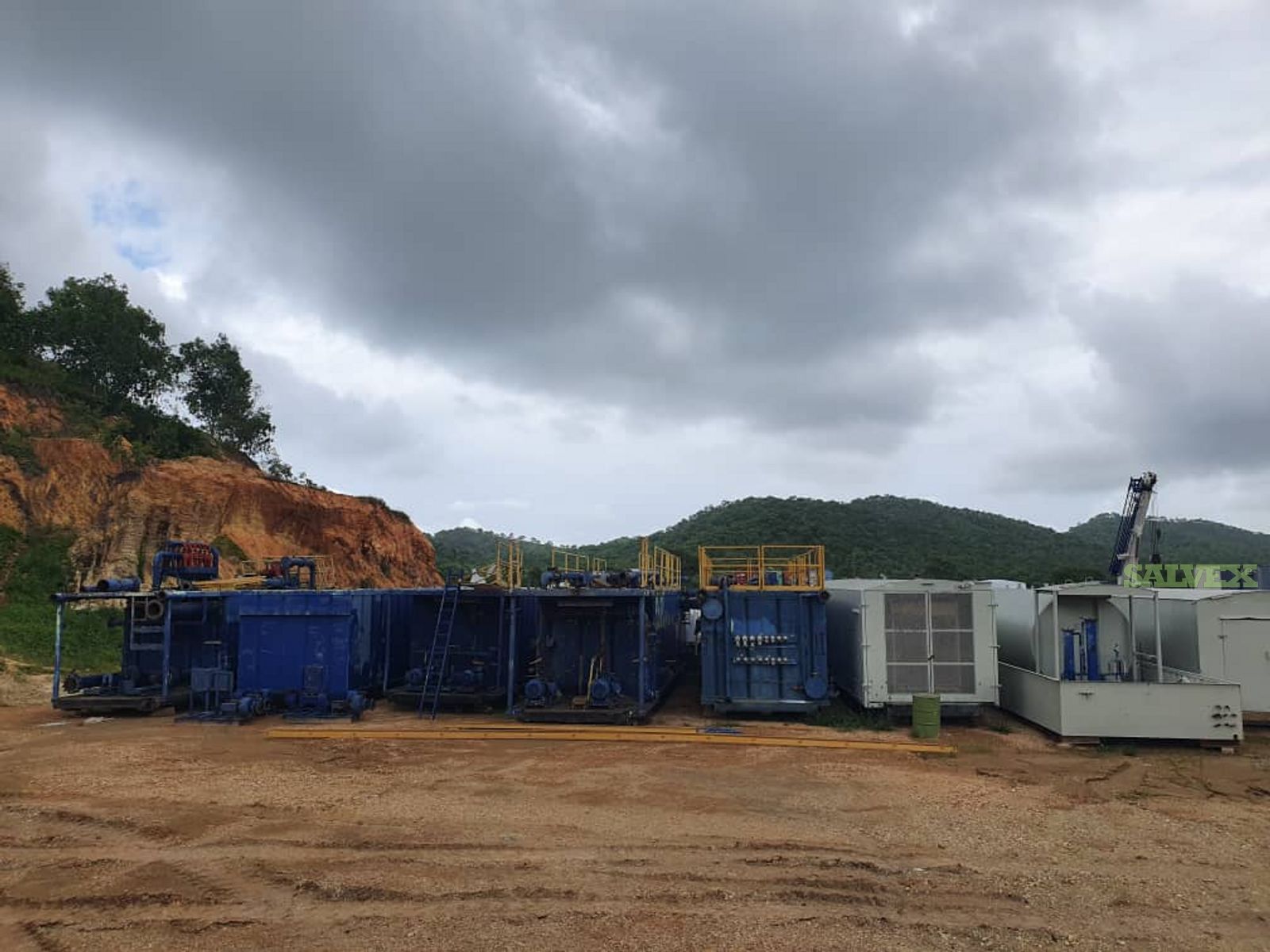

| MUD SYSTEM | (3) Derrick Shale Shaker, linear motion L48, 500 gpm Shaker Tank, Houston made Harrisburg 2 x 10 Desander Harrisburg 12 x 4 Desilter Intermediate Tank, Houston made Suction Tank, Houston made (2) Water Tank, Houston made Trip Tank, comes with 2 Centrifugal Pumps, GN Solids Control Derrickmans house with wash basin and AOI DAC unit |
| DEGASSER | 48 Poor-Boy Degasser, 260-380m3/h |
| GENERATOR | (2) 470 kW continuous/ 505 kW each unit Marathon Generator, powered by Caterpillar D3412 diesel engine |
| WATER TANK | Houston manufactured single compartment 430 bbls, 2 transfer pumps Houston manufactured single compartment 513 bbls |

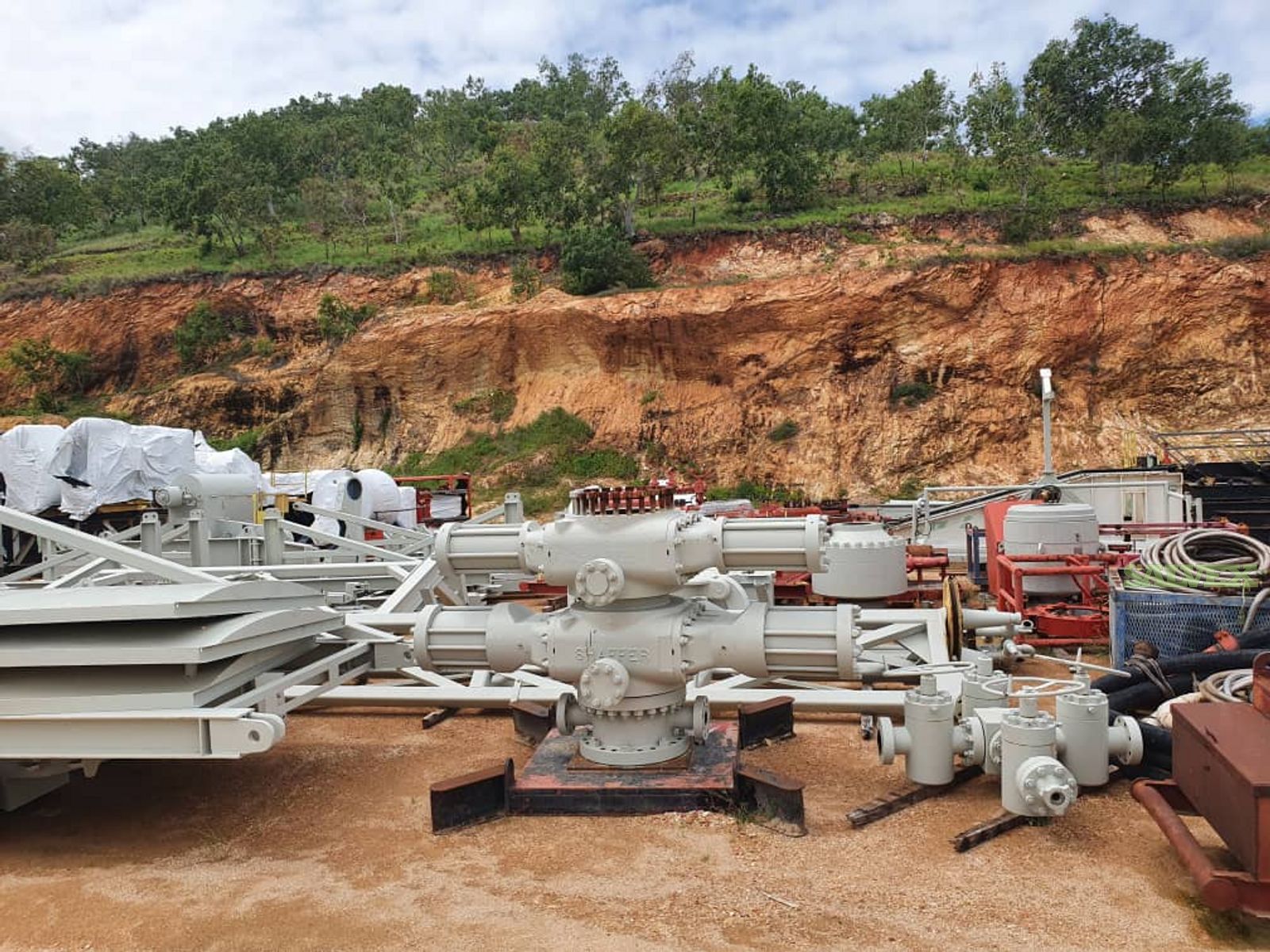

| BOP STACK | Hydril GK Type - 13 5/8 5,000 psi Annular Blowout Preventer Hydril MSP Type 21-1/4 2,000 psi Annular Blowout Preventer Schaffer SLI Type - 13-5/8 5,000 psi Double Ram Blowout Preventer Schaffer 21-1/4 2,000 psi Double Ram Blowout Preventer Casting Shear Type 13-5/8 5,000 psi Single Ram Blowout Preventer |
| BOP CONTROL UNIT | BOP Closing Unit; 6-Station, 24-Bottle, 3-lift Heli- Portable, 460 V, 60 HZ BOP Control Hoses; 1 X30, Fire Armor Sheathed, 3,000 psi WP, 4,500 psi TP, Integral Fig-602 Hammer Unions |
| SPOOLS & RAM GATES | 13-5/8 5000 psi wp, multiple types 21-1/4 2000 psi wp, multiple types |
| CHOKE MANIFOLD & REMOTE CHOKE PANEL | Ram International 2012, 4-1/16 |
| SAFETY EQUIPMENT | Hydrogen Sulfide (Monitoring & Alarm System) Working at Height (Safety Harness) Chemical Handling (PPE, eyewash stations) Electrical (Complies to New Zealand Standards) Fuel (Complies to NZ hazardous subtances storage requirements. |
| TOP DRIVE | Tesco Corporation Calgary, December 2005 HCI 1,205 HP 500 Ton Hydraulic Max Torque 54,000 FT-LB Max Speed 200 RPM |

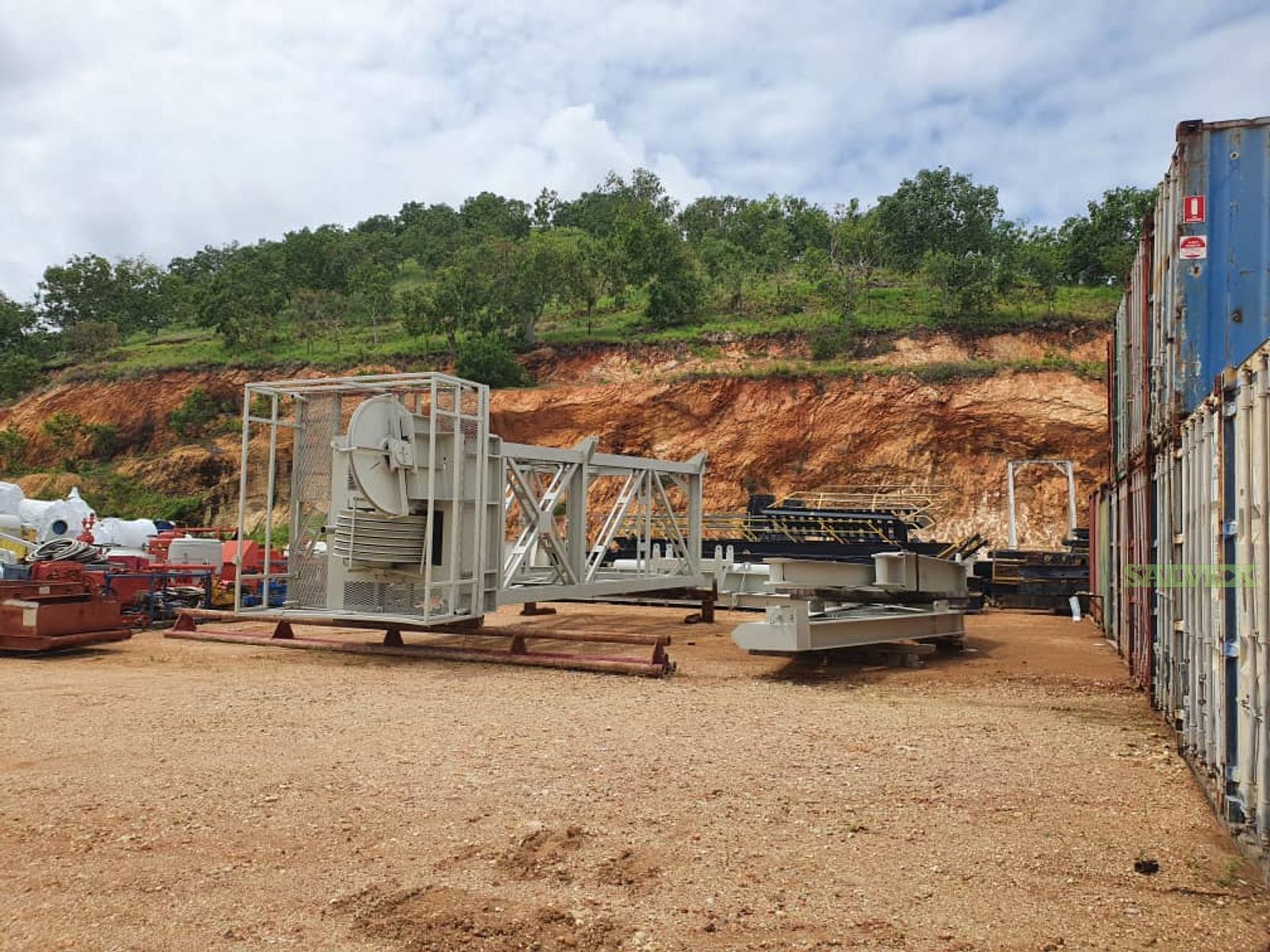

| TOP DRIVE POWER UNIT | Hydraulic Power Unit skid carries service loop on storage reel. Complete with closed loop, open loop auxiliary hoses. & multi-conductor for robotics Configured with 4 x 2 x 225 hose assemblies for the closed loop circuit Detroit Diesel 16V 2000. 1,205 HP at 2,100 RPM diesel engine |
| ADDITIONAL INVENTORY | Spare Caterpillar D399 Engine with low hours, 2012 Critical spare parts, 2012 |
| DRILL COLLARS | 20 x 4-3/4 Spiral 3-1/2 IF Connection 20 x 6-1/2 Spiral NC-50 Connection 25 x 8-1/4 Spiral 6-5/8 Reg Connection 6 x 9-1/2 Spiral 7-58 Reg Connection Pony Collars |
| DRILL PIPES & HWDP | 138 joints 5 DP NC-50 Connection 14 x 5 HWDP X-overs, bit subts, lift subs |
| CASING HANDLING TOOLS | 13-3/8 casing spider slip with set guide for 13-3/8 , 9- 5/8 & 7 casing 13-3/8 casing power tong, Farr LW13625, new with 13- |
| DRILLING TUBULARS TOOLS | Varco SW30 pipe wrench Manual handling tools, tongs, elevators, all types & sizes Rotary table bushings & bowls for all sizes Kelly bushing Spare slips & elevators with spares, 2012 |
Seller Terms
- Salvex and the seller have the right to reject any and all offers.
- This product is sold AS IS, WHERE IS.
- Buyer is responsible for all taxes, duties, loading and freight charges.
- Seller does not offer any warranties or manufacturer warranties.
- Upon receipt of cleared funds, Seller will provide the Buyer a Release Order for item pick up. Title transfers from Seller to Buyer upon issuance of the Release Order.
- It is Buyer's responsibility to verify quantities and condition at the time of pick up. Once the product has been removed from Seller's location, there will be no adjustments based on quantity or condition.
