Attention
No longer available.24 x 22 Leader Dredger 265MT Dry Weight
Welcome to Salvex Marketplace, where you can buy surplus, salvage, and discounted excavators as part of a commercial repurposing strategy.
Attention
No longer available.24 x 22 Leader Dredger 265MT Dry Weight Share with Buyers
-
-
Welcome to Salvex Marketplace, where you can buy surplus, salvage, and discounted excavators as part of a commercial repurposing strategy.
| ID | : | 183029774 |
| Seller | : | |
| Seller Industry | : | |
| Current Asking Price | : | $ 1,600,000 |
| Quantity | : | 1 unit |
| Condition | : | According to the seller,The dredger since it was bought is still in a good working condition with all equipment intact. All the items are "as is, where is". Buyer is responsible for loading, freight and logistics to final destination. |
| | : | |
| Product Location | : | |
| End Time | : | |
| Trader | Nancy Ohaeri +1 (832) 699-0199 |
Item Description

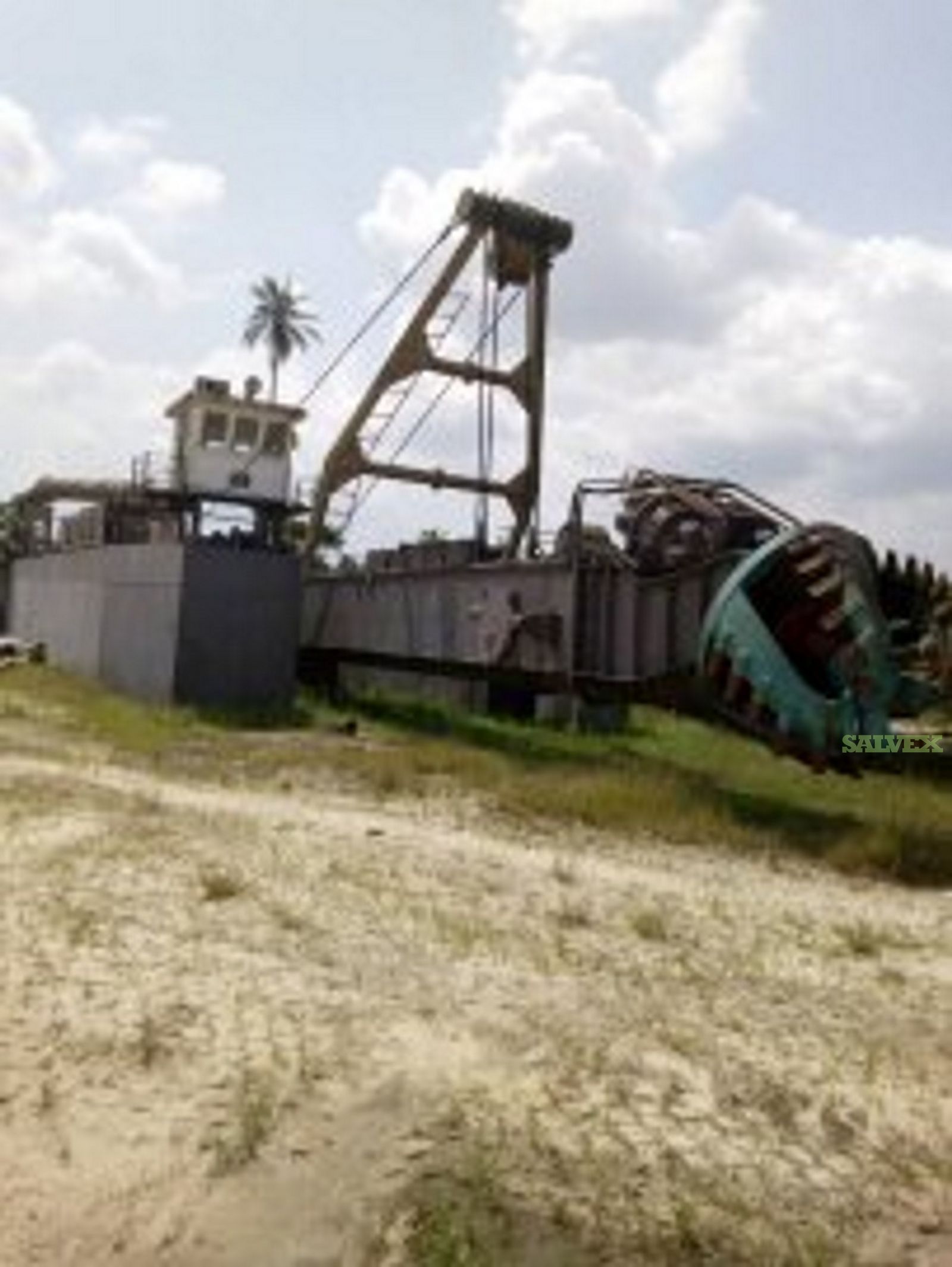

This Lot of 24 x 22 Leader Dredger approx 265MT dry weight ( 1 unit) is no longer needed for company's own operation and is being sold as an asset liquidation for its owner.
Details are listed below:

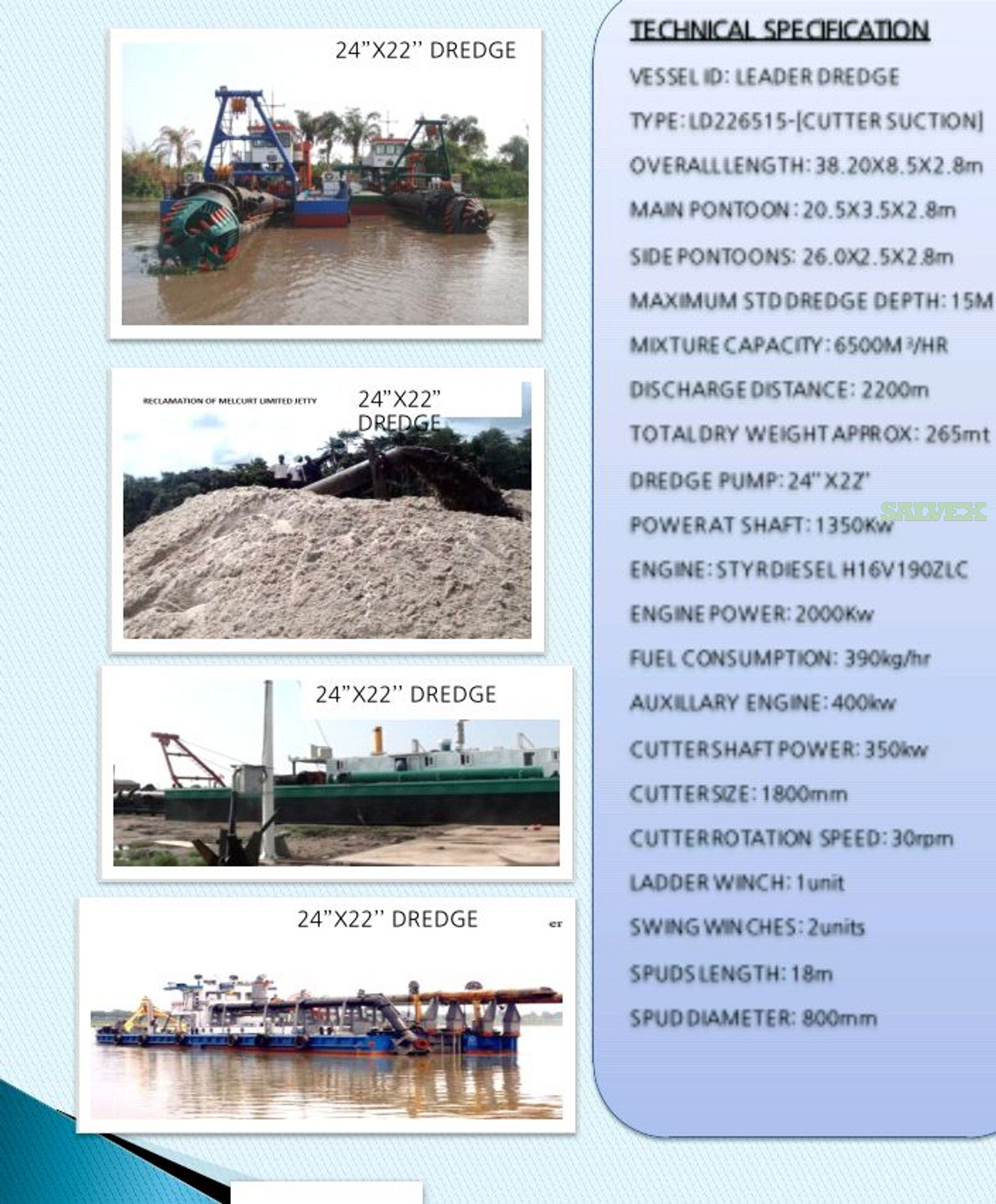

TECHNICAL SPECIFICATIONS:
- 24 x 22 LEADER DREDGER
- Vessel ID: LEADER y DREDGER
- Type: LD226515- (CUTTER SUCTION)
- Overall Lenght: 38.20X8.5X2.8m
- Main Pontoons: 20.5X3.5X2.8m
- Side Pontoons: 26.0X2.5X2.8m
- Maximum Std Dredge Depth: 15m(Further extension possible to attain maximum reach.)
- Mixture Capacity: 6500M3/HR
- Discharge Distance: 2200m
- Total Dry Weight Approx: 265MT
- Dredge Pump: 24" X 22"
- Power at Shaft: 1350kW
- Engine: STYR DIESEL H16V190ZLC
- Engine Power: 2000kW
- Fuel Consumption: 390KG/HR.
- Auxillary Engine: 400kW
- Cutter Shaft Power: 350kW
- Cutter Size: 1800MM
- Cutter Rotation Speed: 30rpm
- Ladder Winch: 1 Unit
- Swing Winches: 2 Units
- Spuds Lenght: 20m
- Spuds Diameter: 800mm.
- Leader Dredger 24 x 22 Company Design Brief
- Spuds: Two spuds are hoisted by hydraulic cylinder. Cylinder steel spuds mounted.
- Year of Manufacturing : 2011 TESTED 2012
- Leader Dredger adopts Advance Holland Technology suitable for Heavy duty and durable operation. The sizes and the weights of the various dismountable modules permit transportation by road, rail or ship

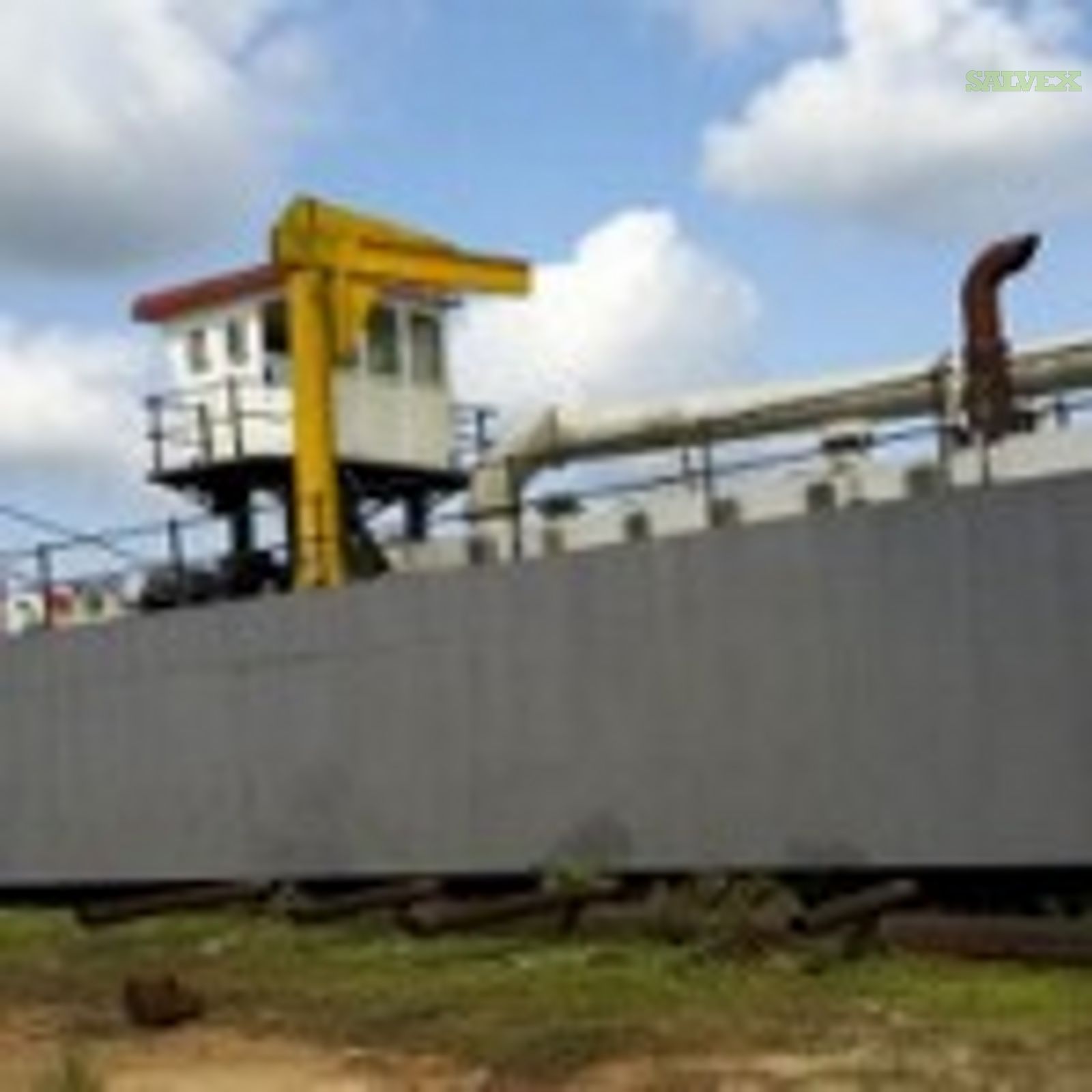

- The complete dredger consists of one MAIN PONTOON and two SIDE PONTOON. These side pontoons are mounted to the main pontoon using the Heavy Steel Claws and Pins at Hull Bottom with Bolt connection at Deek Level. Built in Fuel Oil and Ballast Tanks

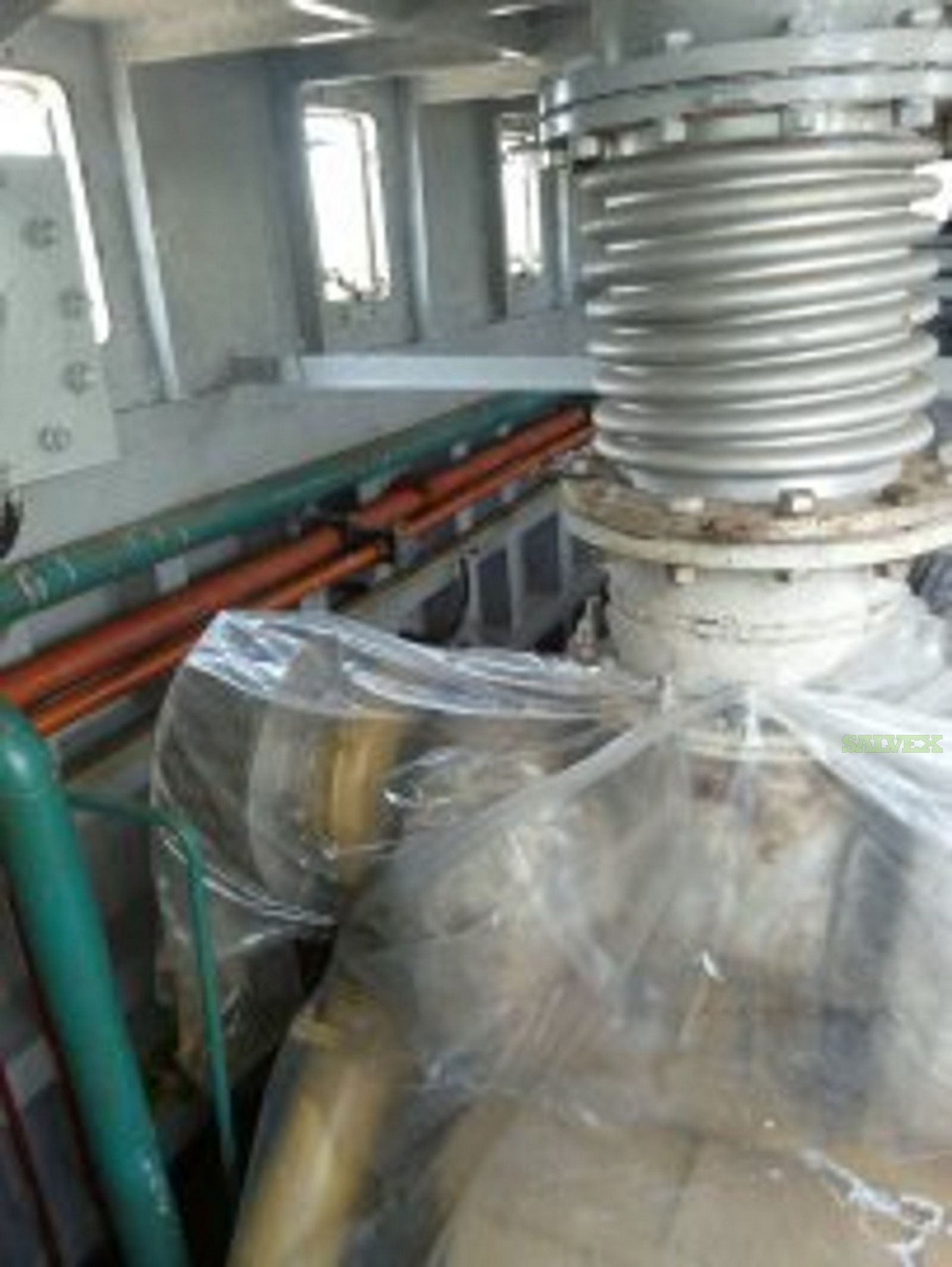

- The dredger pump is driven by a Diesel Engine through gearbox with World Famous Werman Technology produced by the biggest Factory in China. Same technology with Werman Pump but lower production cost in China. Main part of the pump is made of Anti-Friction alloy cast iron or cast steel. Min Hardness is 58HRC.

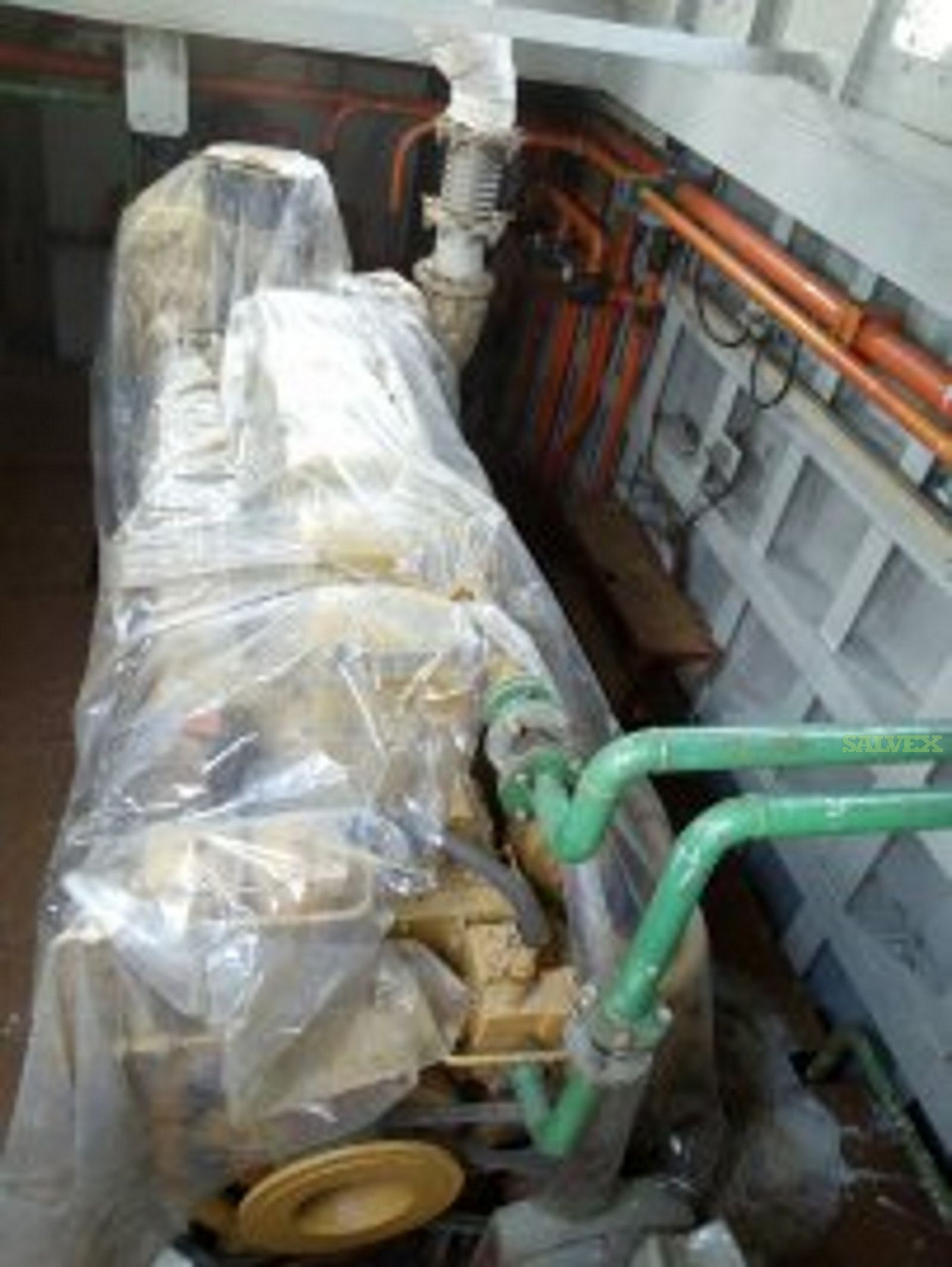

- ENGINE: JICHAI engine-- The biggest engine factory in China. Which most take advantage for Marine Engines. Widely applied in Chinese Market, Asia Countries, South America Countries, Russia Countries, African Countries etc. The speed of the Diesel engine for the drive of the dredge pump is remote controlled between lower Idle and Max
- HYDRAULIC SYSTEM: Hydraulic System include 2 INDEPENDENT CIRCUITS, one for CUTTER with 3 Changeable Speed. One for One for Cutter, Swing Winches, Ladder Hoist and Spud Oil for the Hydraulic System is applied by Vane Pumps. Equipped with an emergency pump as auxiliary for overhauling.
- ELECTRICAL SYSTEM: 220V AC for Lighting and 24V DC for Hydraulic System are powered by Diesel Engine.

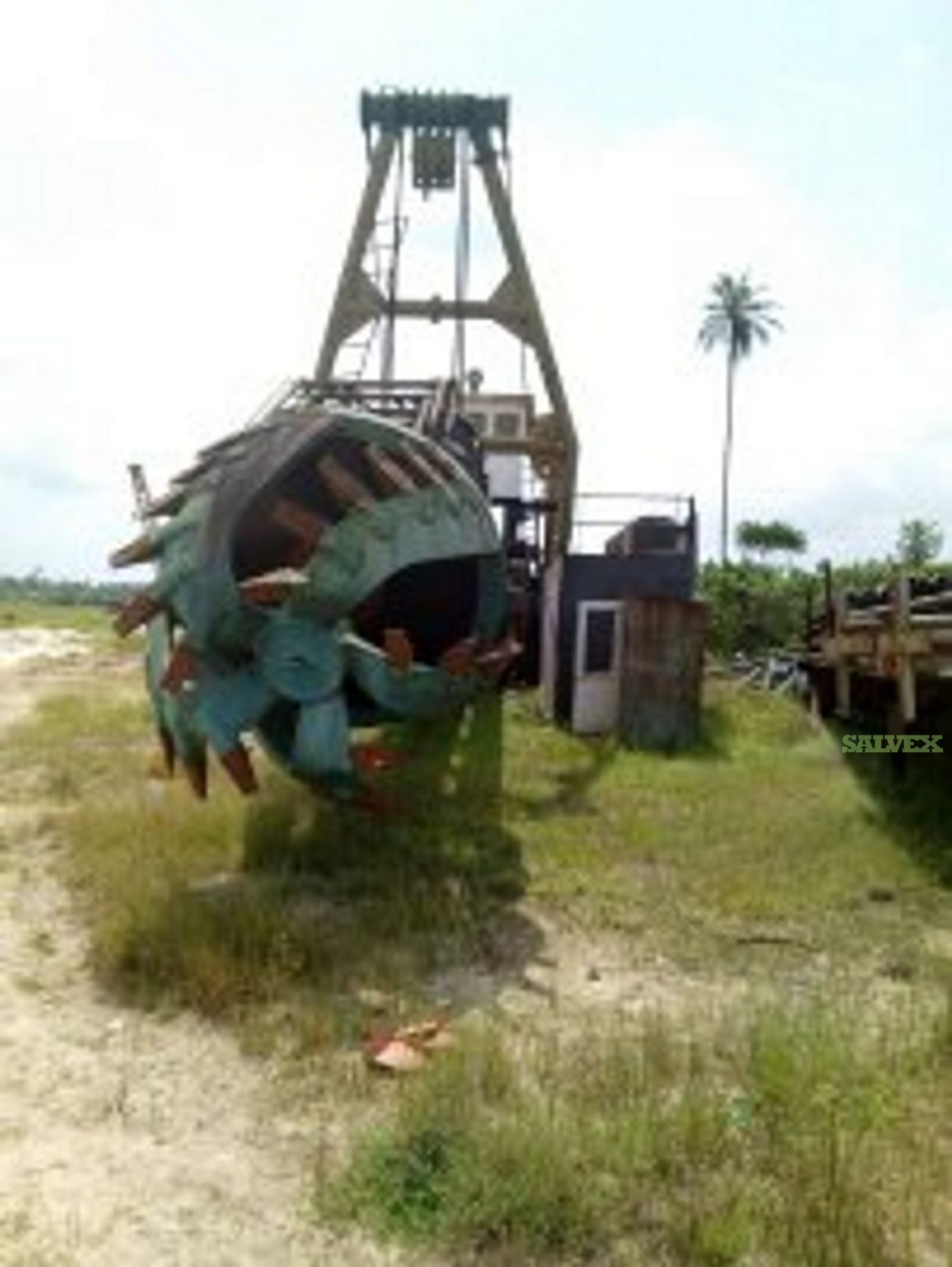

- CUTTER: Cutter directly driven by Gear Hydraulic Motor through the Short Shaft enable Cutter Force Concentrated weight at the cutter for high efficiency. Three Shift Speed meets different working conditions.
- LADDER HOIST: Driven by Gear Hydraulic Motor through Planetary reduction gear with double lock up design for speed and protect the Ladder
- WINCHES: Independent Line driven by gear hydraulic motor through planetary reduction gear, free speed and reverse control through operation cabin
Seller Terms
- Salvex and the seller have the right to reject any and all offers.
- This product is sold AS IS, WHERE IS.
- Buyer is responsible for all taxes, duties, loading and freight charges.
- Seller does not offer any warranties or manufacturer warranties.
- Upon receipt of cleared funds, Seller will provide the Buyer a Release Order for item pick up. Title transfers from Seller to Buyer upon issuance of the Release Order.
- It is Buyer's responsibility to verify quantities and condition at the time of pick up. Once the product has been removed from Seller's location, there will be no adjustments based on quantity or condition.
