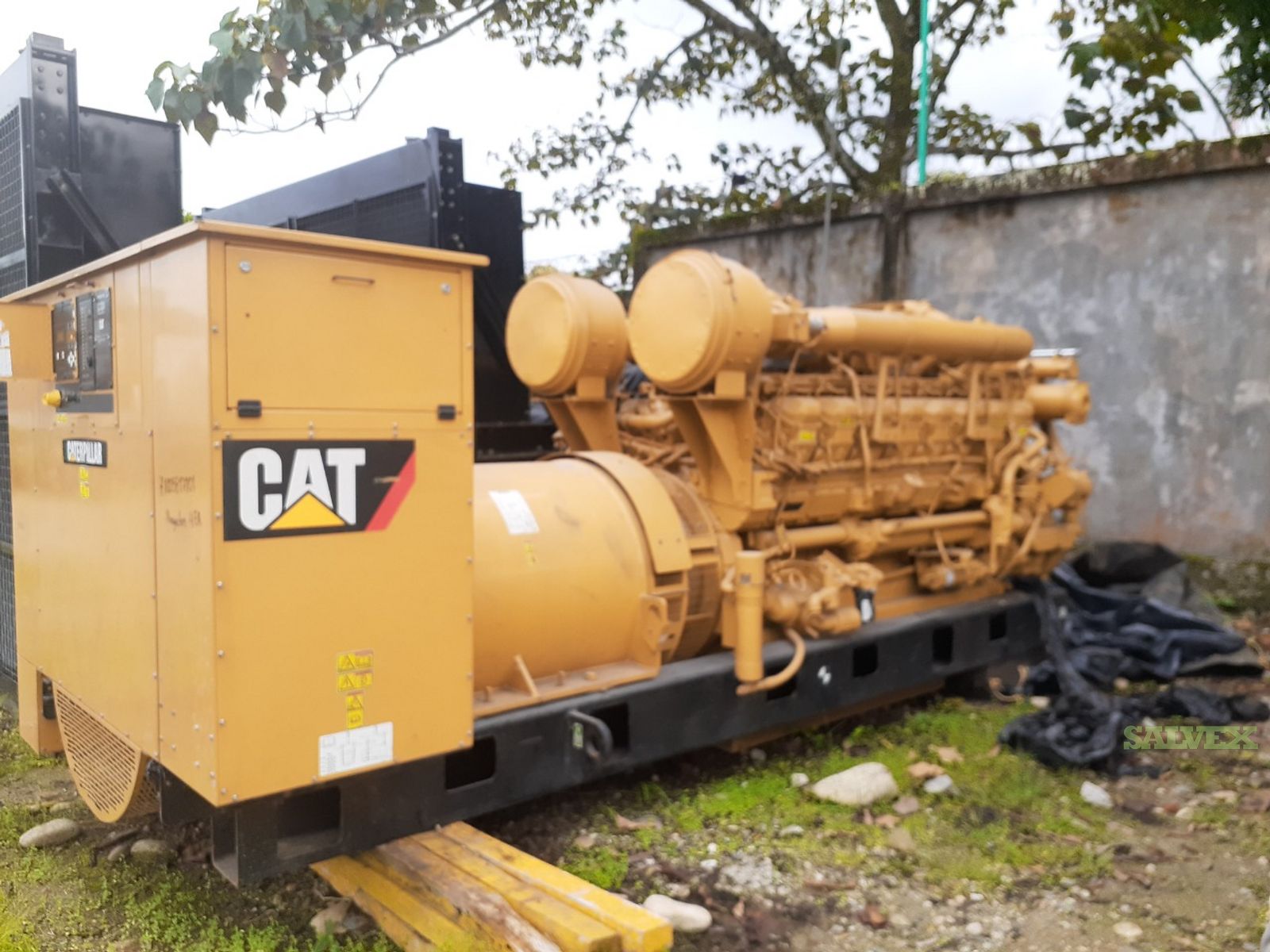

This item is no longer available.Diesel Generator Set CAT 3516B-2250 (2 Units)
Welcome to Salvex Marketplace, where you can buy surplus, salvage, and discounted diesel engines as part of a commercial repurposing strategy.
Attention
This item is no longer available.Diesel Generator Set CAT 3516B-2250 (2 Units) Share with Buyers
-
-
Welcome to Salvex Marketplace, where you can buy surplus, salvage, and discounted diesel engines as part of a commercial repurposing strategy.
| ID | : | 183018490 |
| Seller | : | |
| Seller Industry | : | |
| Original Wholesale Value | : | $1,326,200 |
| Quantity | : | 2 EA |
| Manufacturer | : | Caterpillar View more items from this manufacturer |
| Condition | : |
Unused surplus All the items are "as is, where is". Buyer is responsible for loading, freight and logistics to final destination. Last inspention was completed in 2019 |
| | : | |
| Product Location | : | |
| End Time | : | |
| Loading Cost | Be aware there are country shipping restrictions. Please ask the trader if your final destination is on the not-ship list before placing an offer. | |
| Trader | Carolina Acosta +1-832-239-5361 |
Item Description
These Diesel Generator Set are no longer needed for the company's own operation and is being sold as an asset liquidation for its owner.
Details are listed below:
| Complete Description | Quantity | Uom |
| Caterpillar Generator CURRENT: 317A; POTENTIAL: 2281 KVA - 1825 KW; VOLTAGE: 4160V; SPEED: 1800RPM; ADDITIONAL FEATURES: 3 PHASES, 60 HZ, 16 CYLINDERS | 3 | EA |
|
Diesel Engine Brand |
Caterpillar |
|
Type |
3516B TA |
|
No. of Cylinders / Alignment |
16 / V |
|
Cycle |
4-Stroke |
|
Cooling Method |
Water-cooled |
|
Fuel |
Diesel |
|
Speed |
1‘500 rpm |
|
Bore |
170.00 mm |
|
Stroke |
190.00 mm |
|
Displacement |
69.00 L |
|
Compression Ratio |
14.0:1 |
|
Aspiration |
Turbo after cooler |
|
Fuel System |
Electronic unit injection |
|
Base Tank Capacity |
n. a. |
|
Jacket Water heaters |
220 V / 9 kW |
|
Starting Motor |
24 V / 7 kW |
|
Battery Type |
153-5700 |
|
Quantity |
3 |
|
Capacity per Battery/total |
145 Ah - 12 V / 290 Ah - 24 V |
|
Generator Brand |
Caterpillar |
|
Type / Frame |
1647 |
|
Excitation |
Permanent Magnet or AREP |
|
Pitch |
0.6667 |
|
Number of Poles |
4 |
|
Number of Bearings |
Single Bearing |
|
Number of Leads |
6 |
|
Insulation |
Class H |
|
IP Rating |
IP23 |
|
Nominal Speed |
1’500 rpm |
|
Over Speed capability |
150 % |
|
Waveform Deviation (Line to Line) |
2 % |
|
Voltage Regulator |
3 Phase sensing with selectable volts/Hz |
|
Voltage regulation |
Less than ± ½% (steady state) Less than ± 1% (no load to full load) |
|
Telephone Influence Factor (TIF) |
Less than 50 |
|
Total Harmonic Distortion (THD) |
Less than 5% |
|
CBK 3pol manual, fixed mount rear |
4’000 A / 50 kA |
|
Typical Cabling; TN-C (Prime) |
8 x 4 x 240 mm² + 4 x 1 x 240 mm² |
|
Typical Cabling; TN-C (Standby) |
8 x 4 x 240 mm² + 4 x 1 x 240 mm² |
