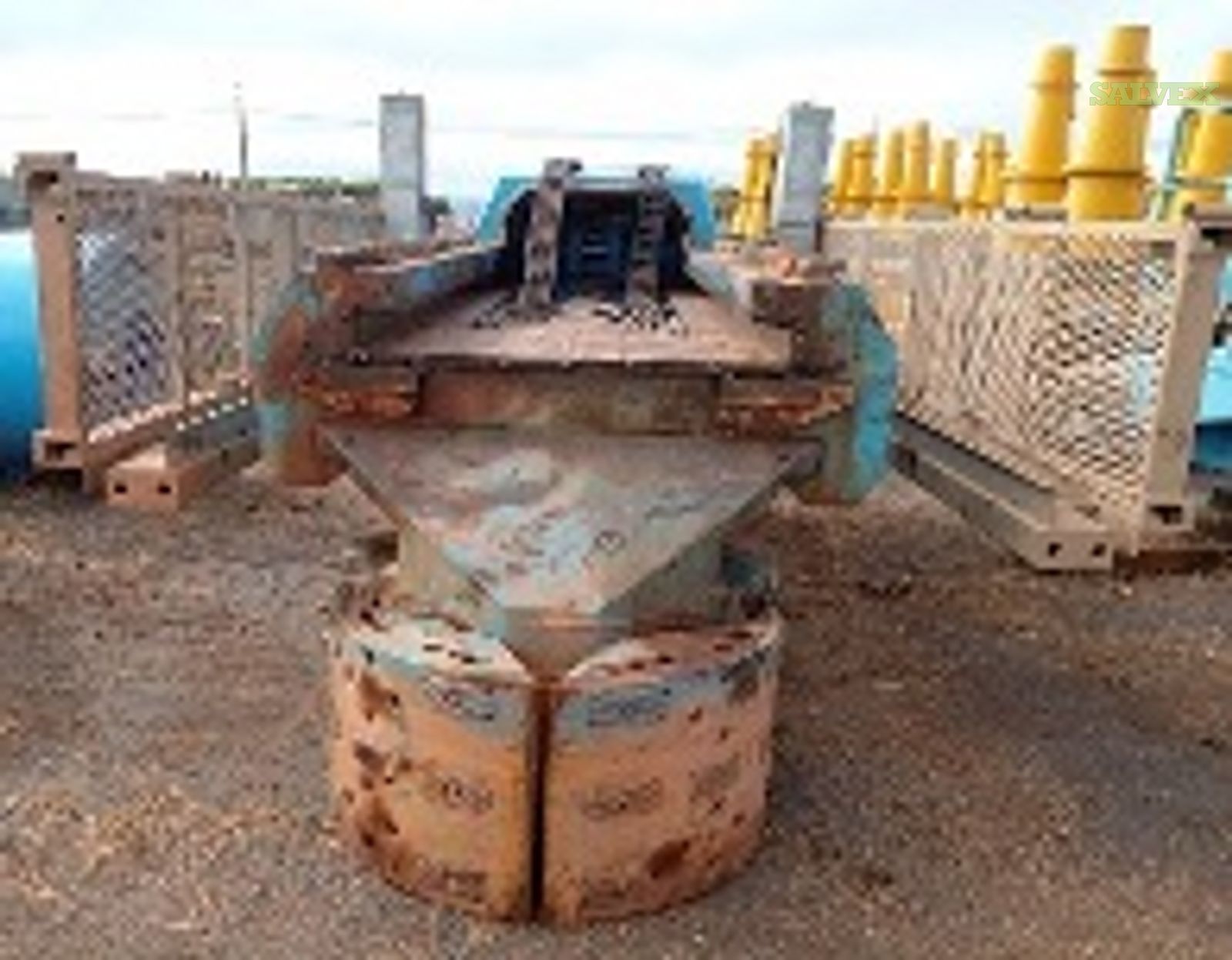

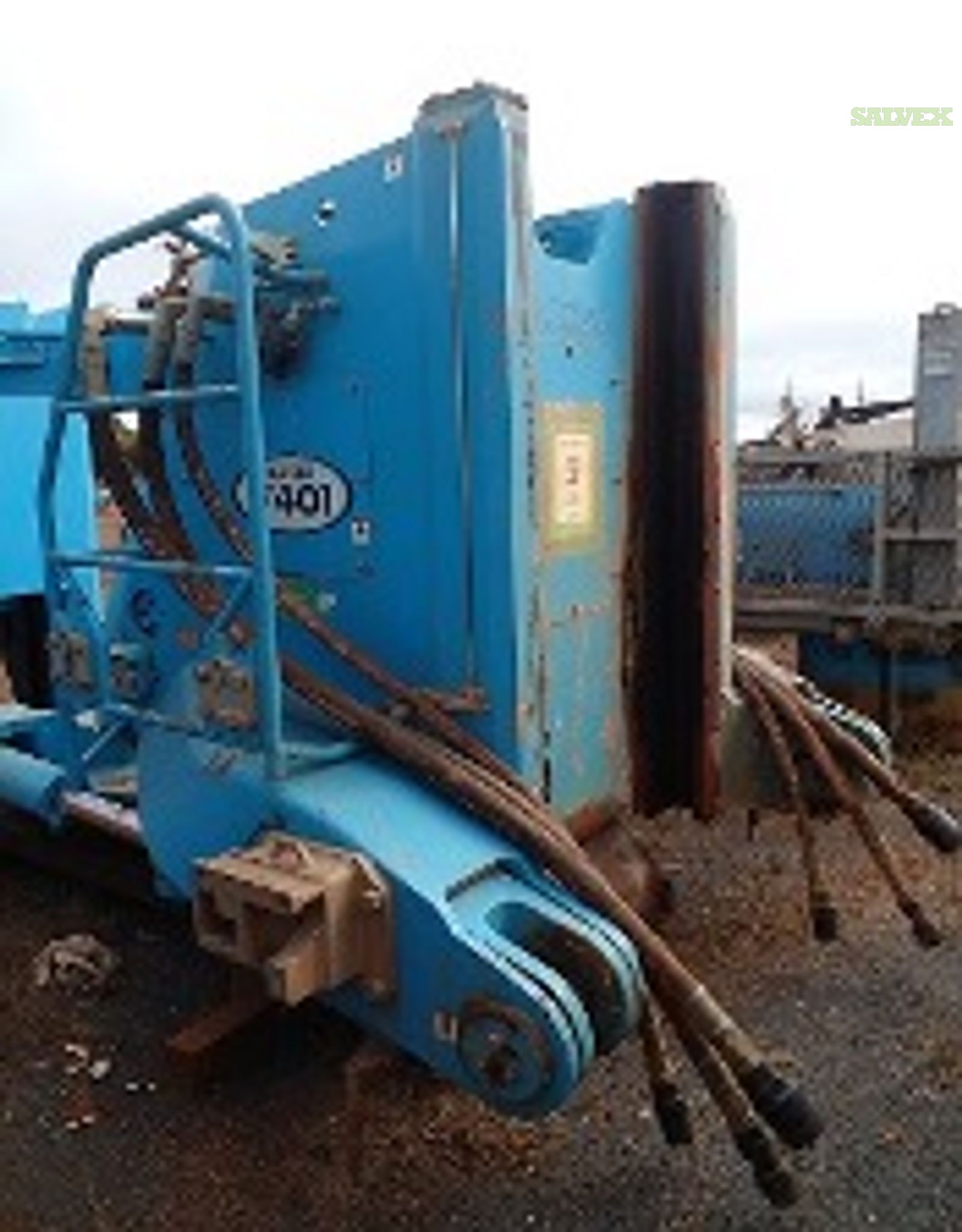

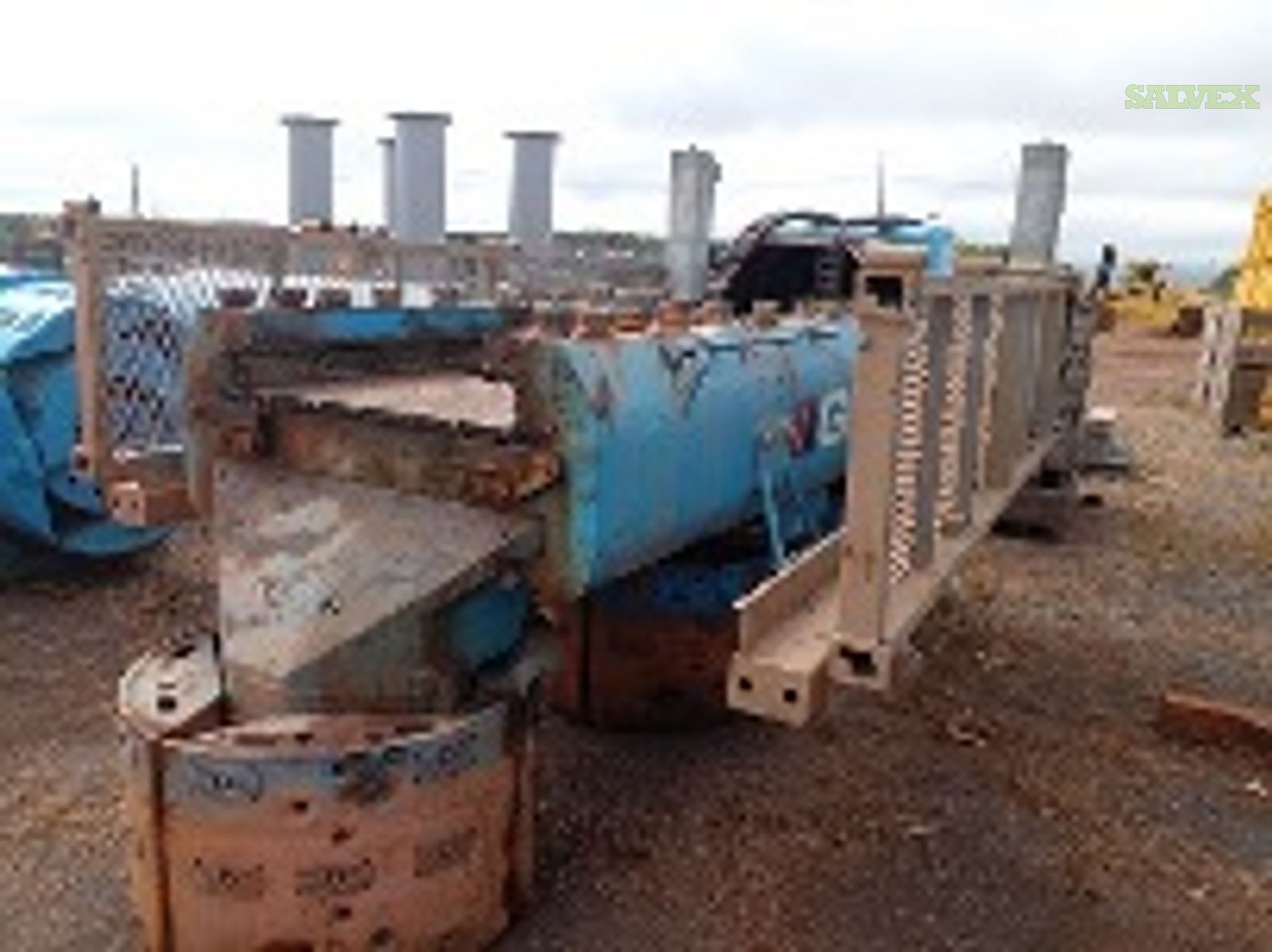

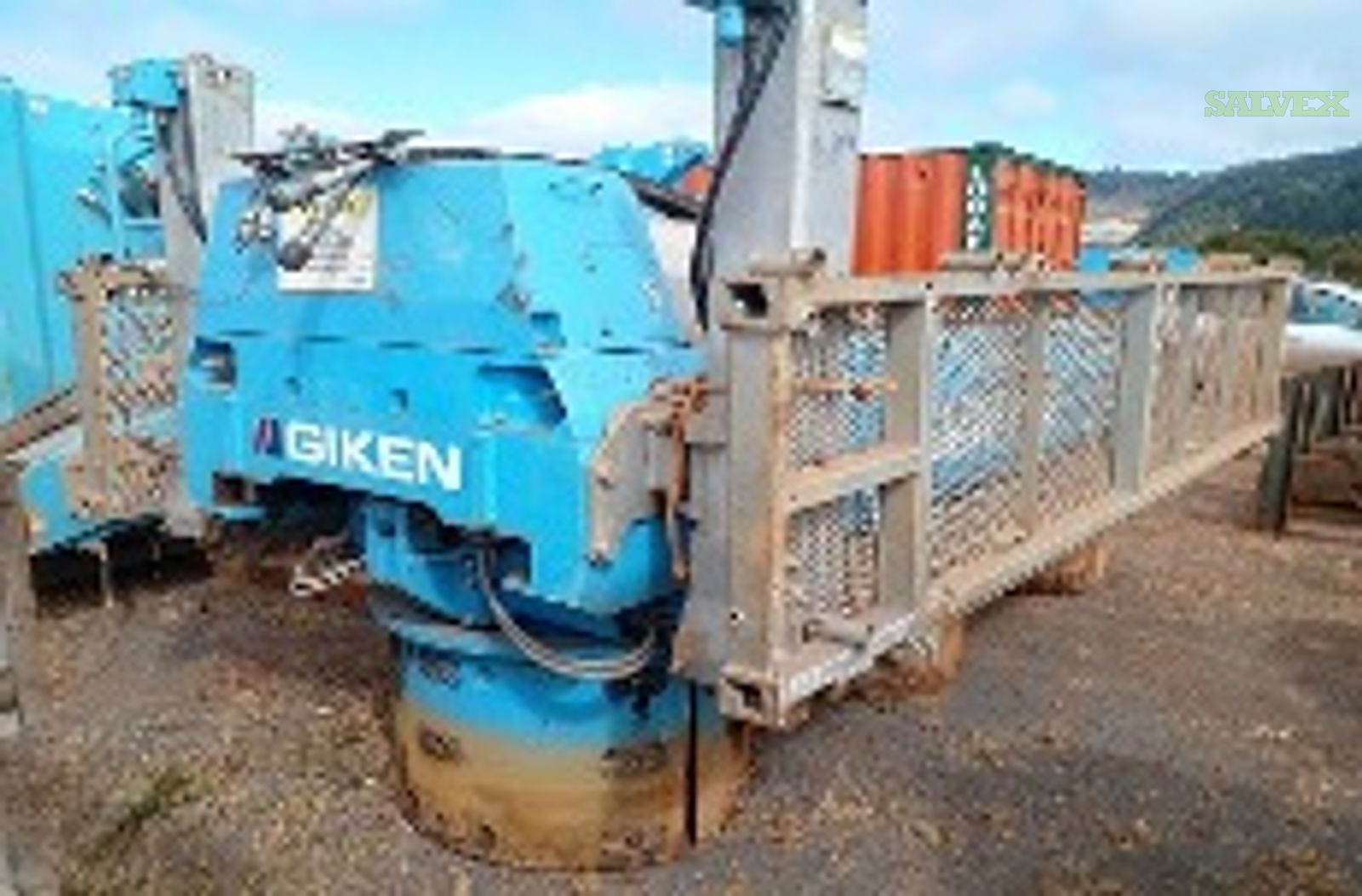

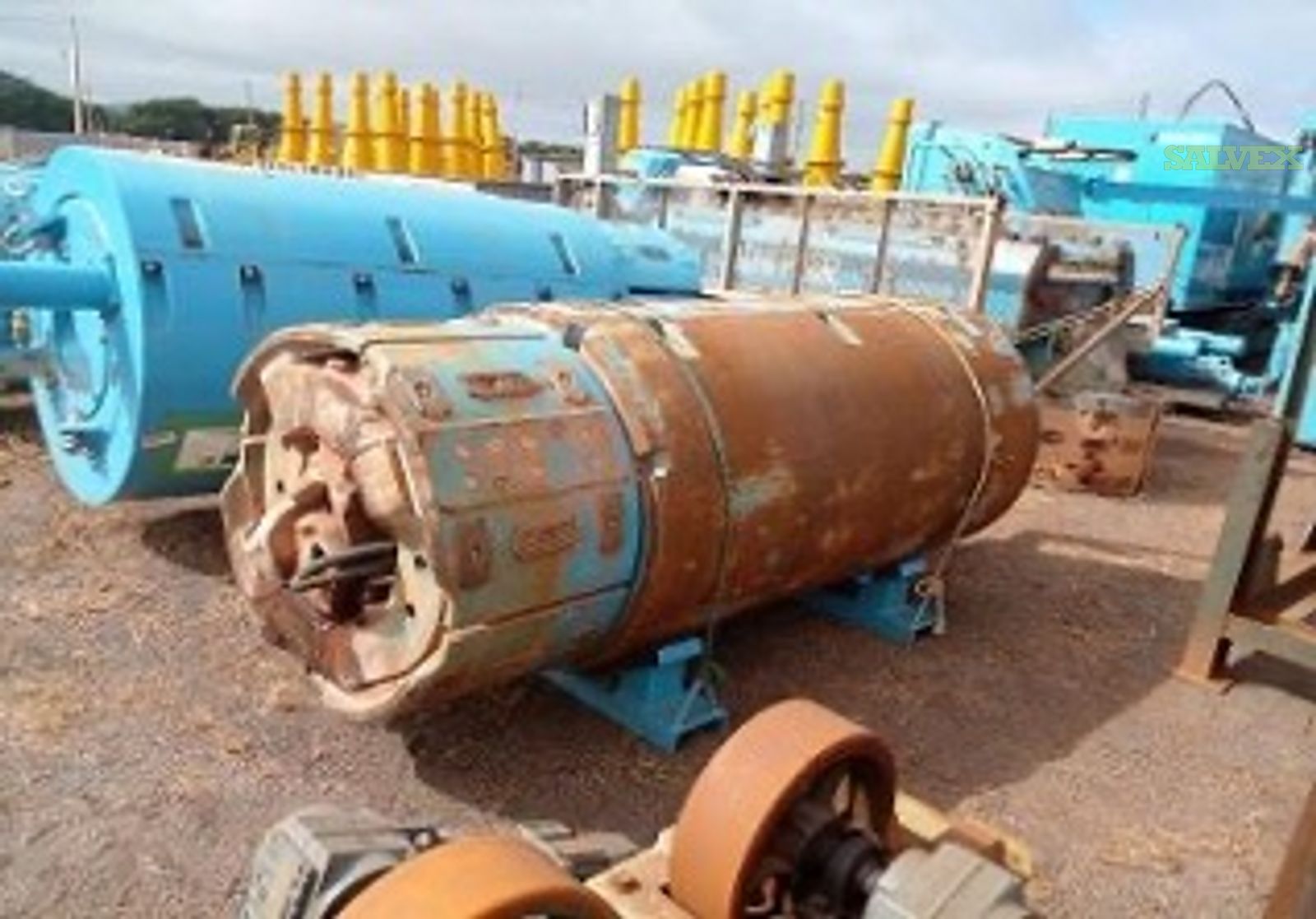

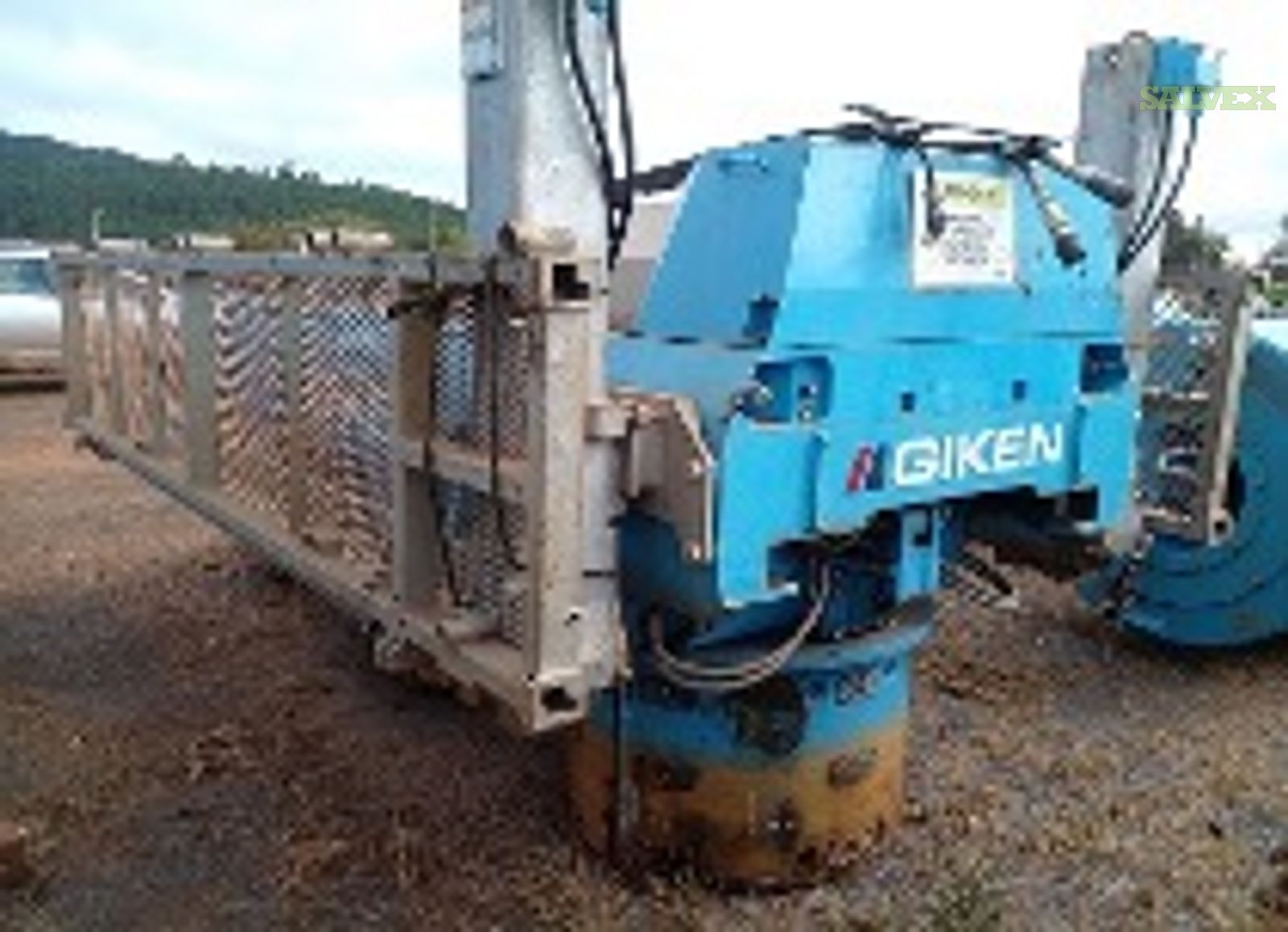

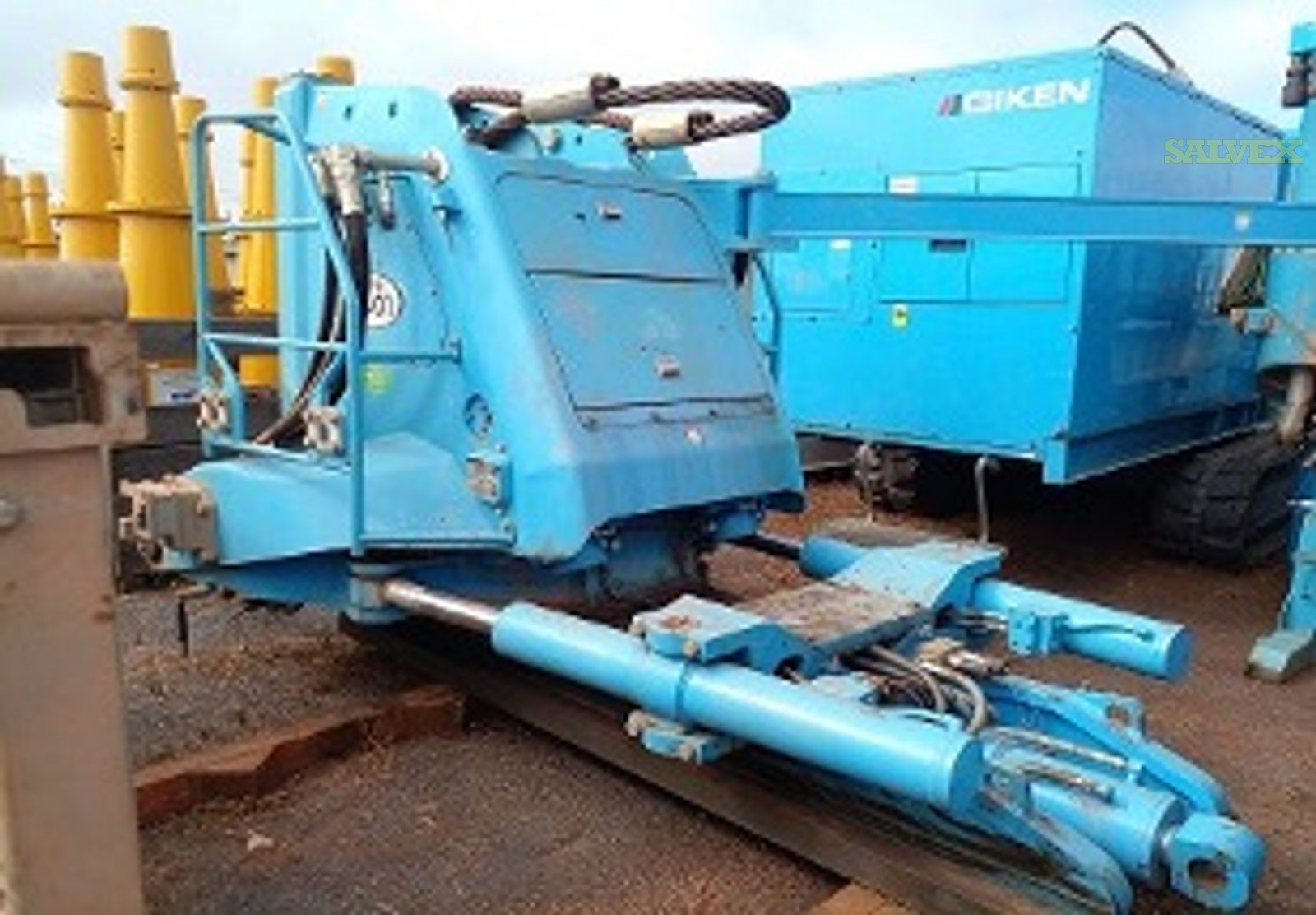

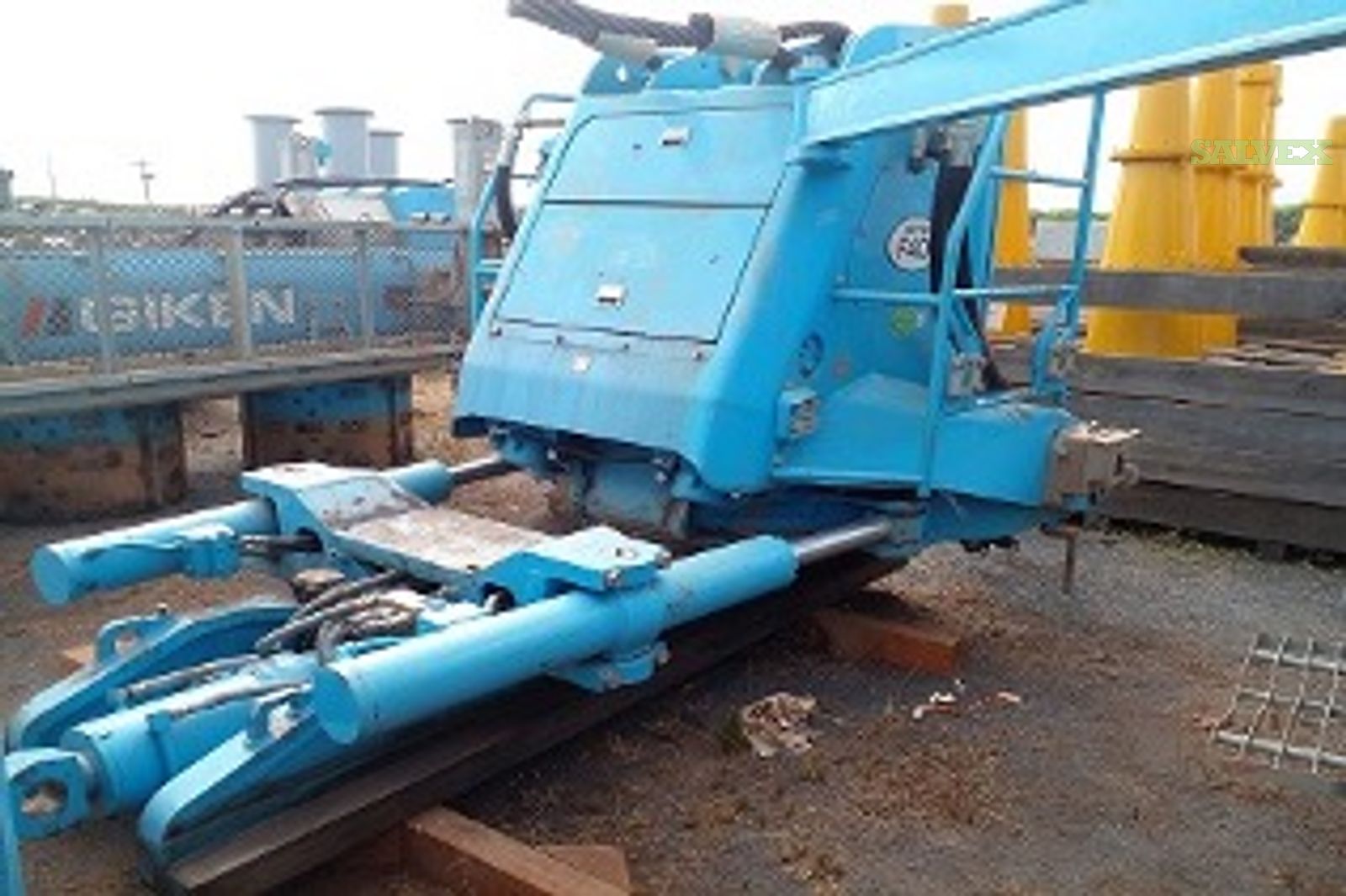

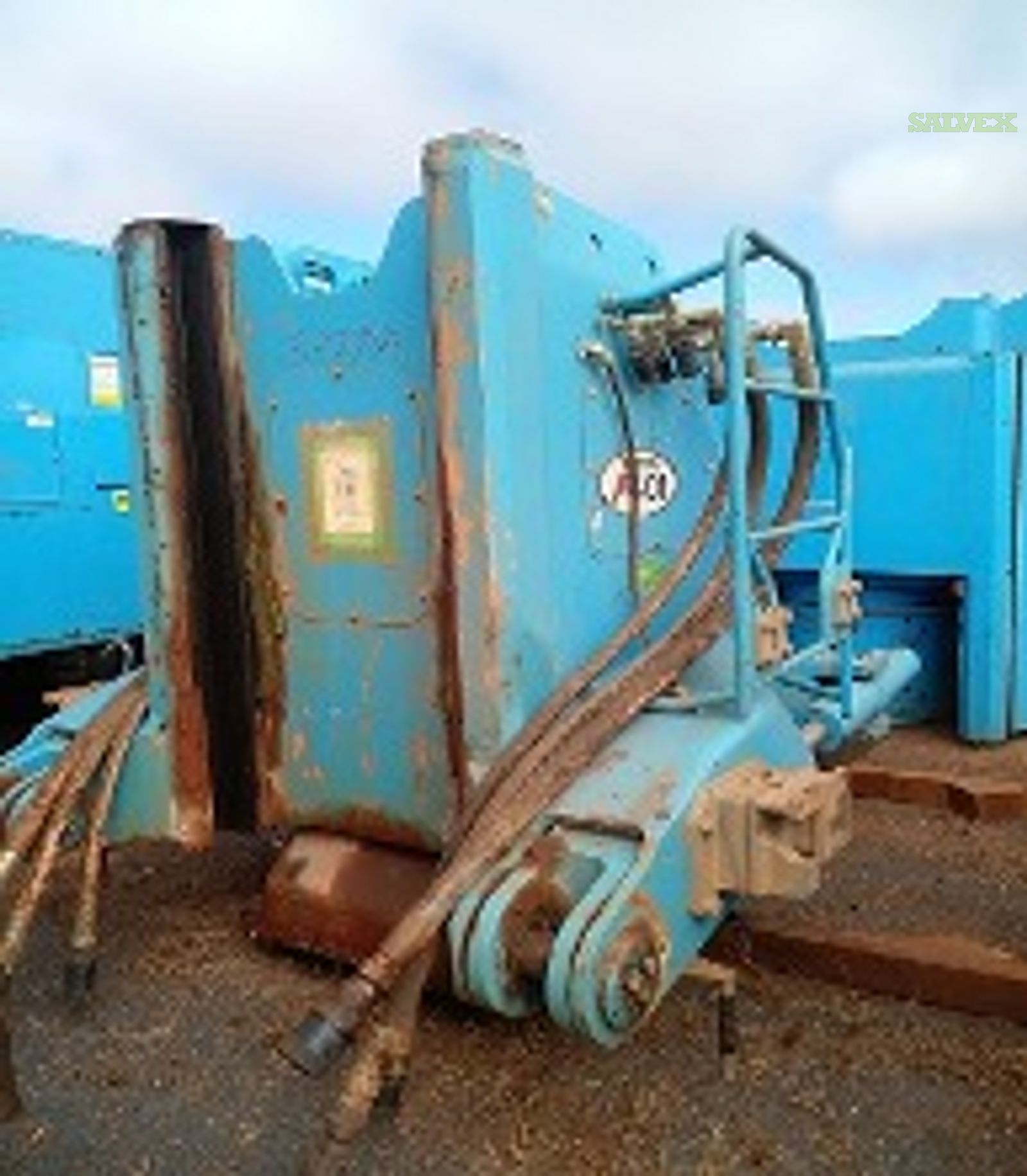

Giken F-401-G1200 Silent Piler (1 Unit)

Welcome to Salvex Marketplace, where you can buy surplus, salvage, and discounted mining equipment as part of a commercial repurposing strategy.

Attention

No longer available.

Giken F-401-G1200 Silent Piler (1 Unit) Share with Buyers

ID	:	183017020
Seller	:	‌
Seller Industry	:	‌
Quantity	:	1 Unit
Manufacturer	:	Giken View more items from this manufacturer
Condition	:	This Giken F-401-G1200 Silent Piler was built in 2019 and it is operational and in good condition. The unit is already dismantled. Loading and transport of the machine are the buyer's responsibility. The buyer will need a crane and a truck. The customer must hire a freight forwarder to verify the best way to ship those parts by plane or ship. The customer won't need any training to carry out the loading and transport of the equipment. Fulfill all the buyers' safety requirements. There are no requirements for technical visits to this machine. Being sold "AS IS, WHERE IS". The buyer is responsible for shipping and handling.
‌	:	‌
Product Location	:
End Time	:	‌
Trader	Nhu Nguyen 832 548 4961

This Giken F-401-G1200 Silent Piler is no longer needed for the company's operation and is being sold as an asset liquidation for its owner.

Technical Specifications:

Year of Manufacture: 2019
Applicable piles:
- Tubular piles: ø800, ø1000, ø1200 mm
- Tubular sheet piles: ø800, ø1000
Max. Press-in Force:
- with Chuck Rotation: 1500 kN
- without Chuck Rotation: 2000 kN
Max. Extraction Force:
- with Chuck Rotation: 1600 kN
- without Chuck Rotation: 2200 kN
Chuck Rotation Torque: 900 kN.m (emergency use up to 1050 kN.m)
Chuck Rotation Velocity: max 11 min^-1
Stroke: 1000 mm
Press-in Speed: 0.7 ~ 4.9 m/min
Extraction Speed: 0.7 ~ 3.5 m/min
Applicable Pile Spacing:
- for 800 mm: 850 ~ 1320 mm
- for 1000 mm: 1050 ~ 1320 mm
- for 1200 mm: 1250 ~ 1505 mm
Control System: Radio Control
Mass:
- for 800 mm: 31850 kg
- for 1000 mm: 32600 kg
- for 1200 mm: 33600 kg

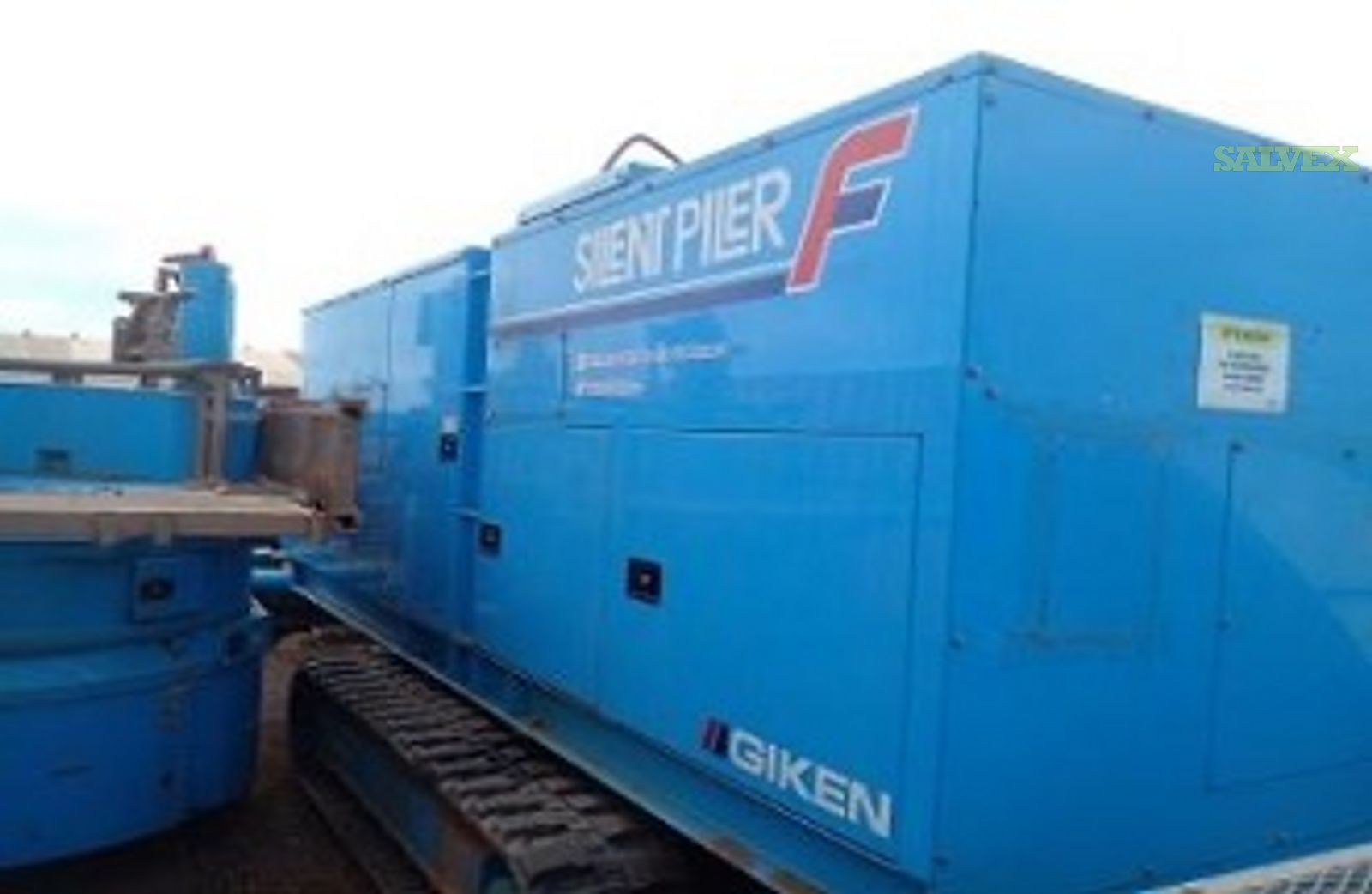

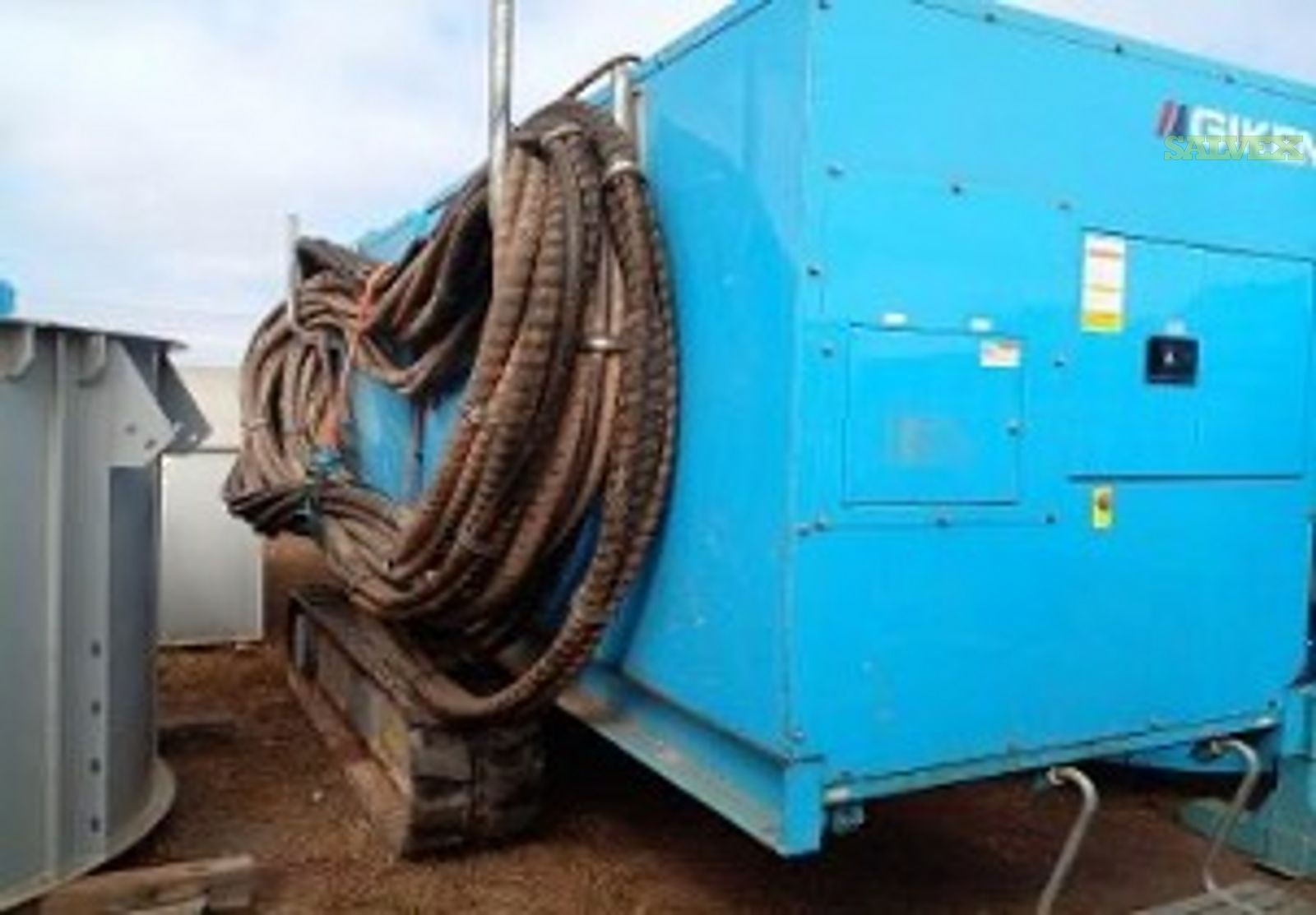

Power Unit:

Power Source: Diesel Engine
Rated Output:
- Power Mode: 377 kW (513 ps) / 1800 min^-1
- Eco Mode: 335 kW (456 ps) / 1600 min^-1
- ^{Super Eco Mode: 293 kW (339 ps) / 1400 min^-1}
Fuel Tank Capacity: 850 L
Hydraulic Reservoir: Piler ECO Oil 660 L
Moving Speed: 1.4 km/h
Mass: 10950 kg (with 30m hose)

Lubricating System:

Loader Mast:

Metal Profile Engrav

Attachment:
