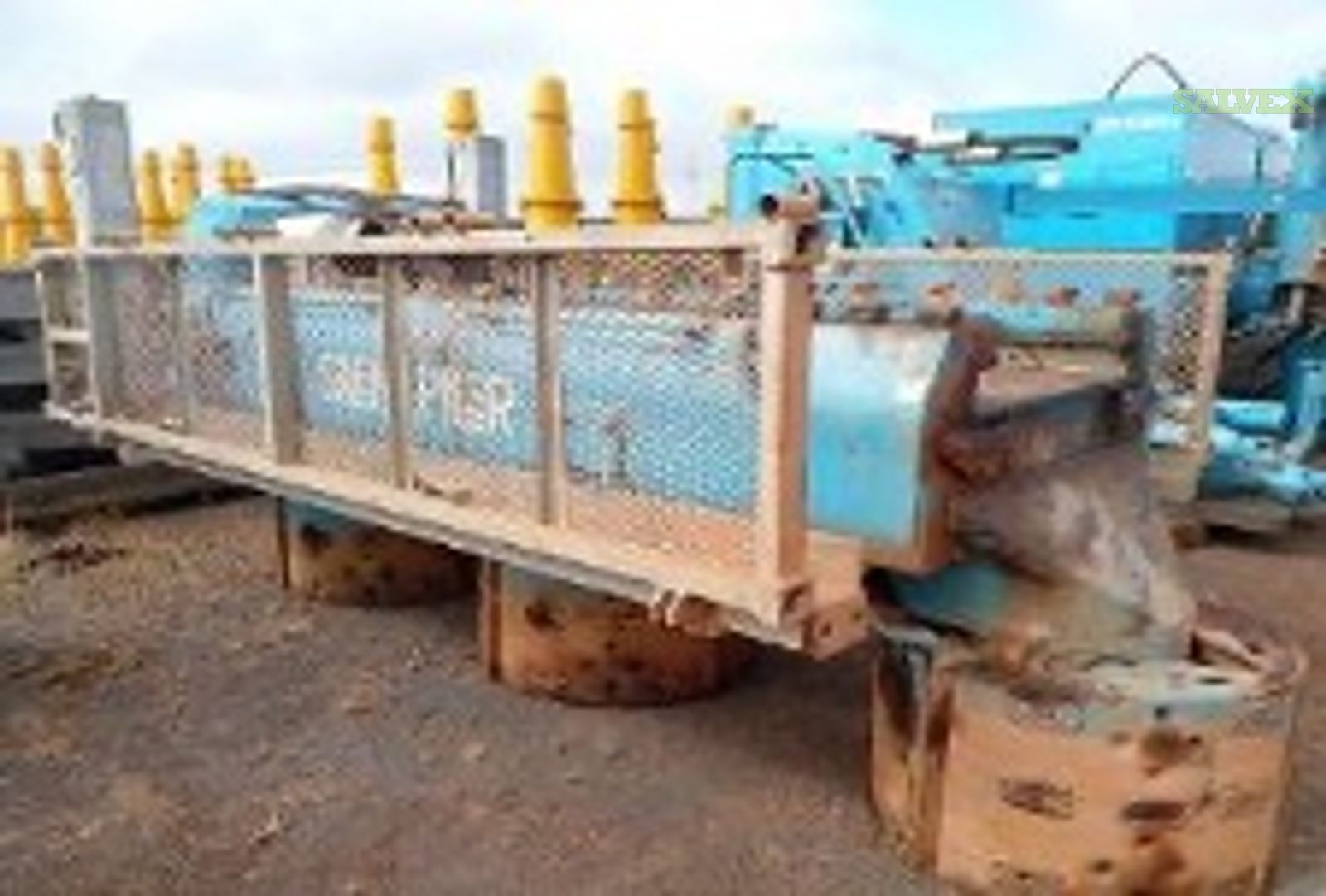

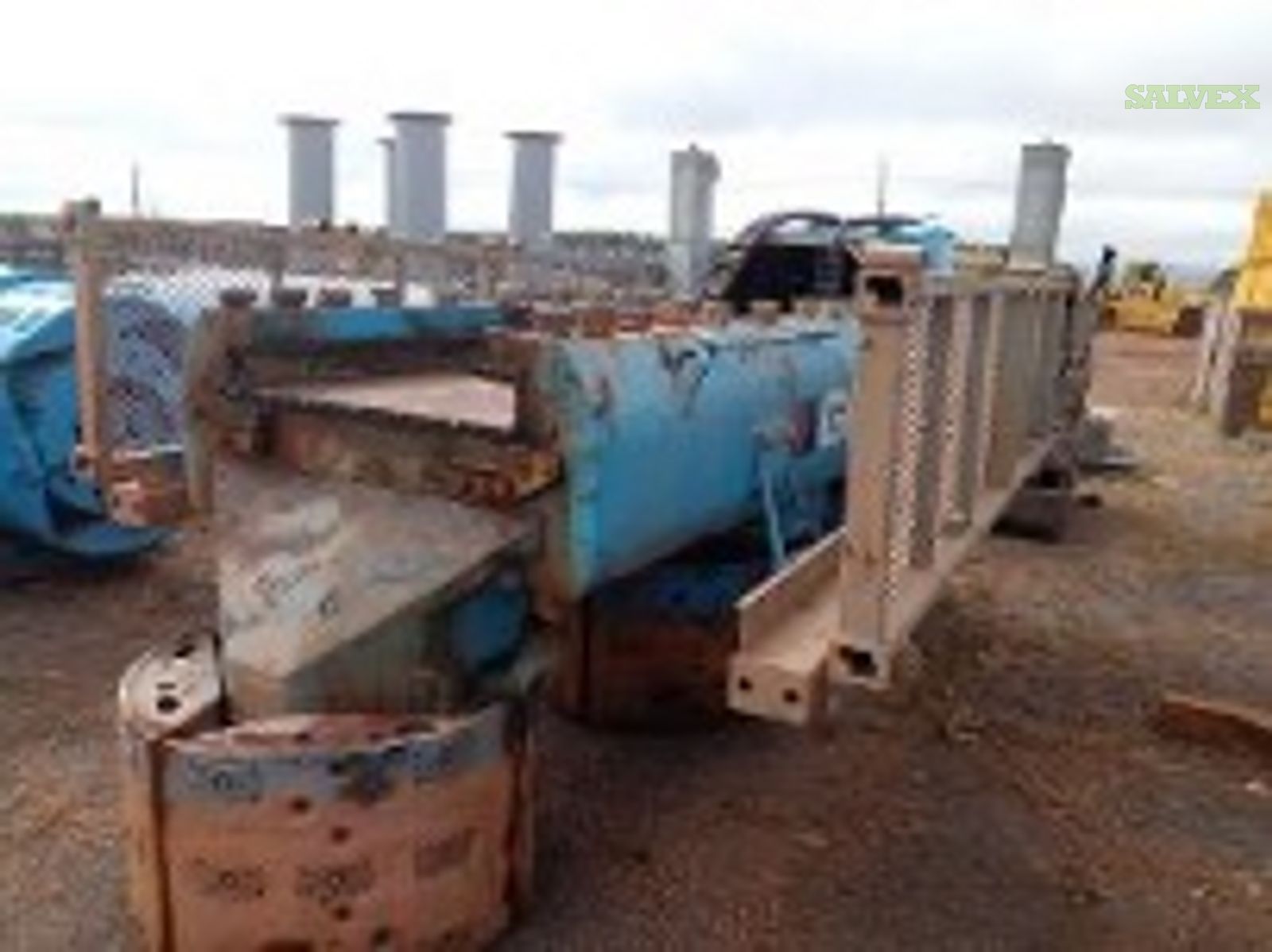

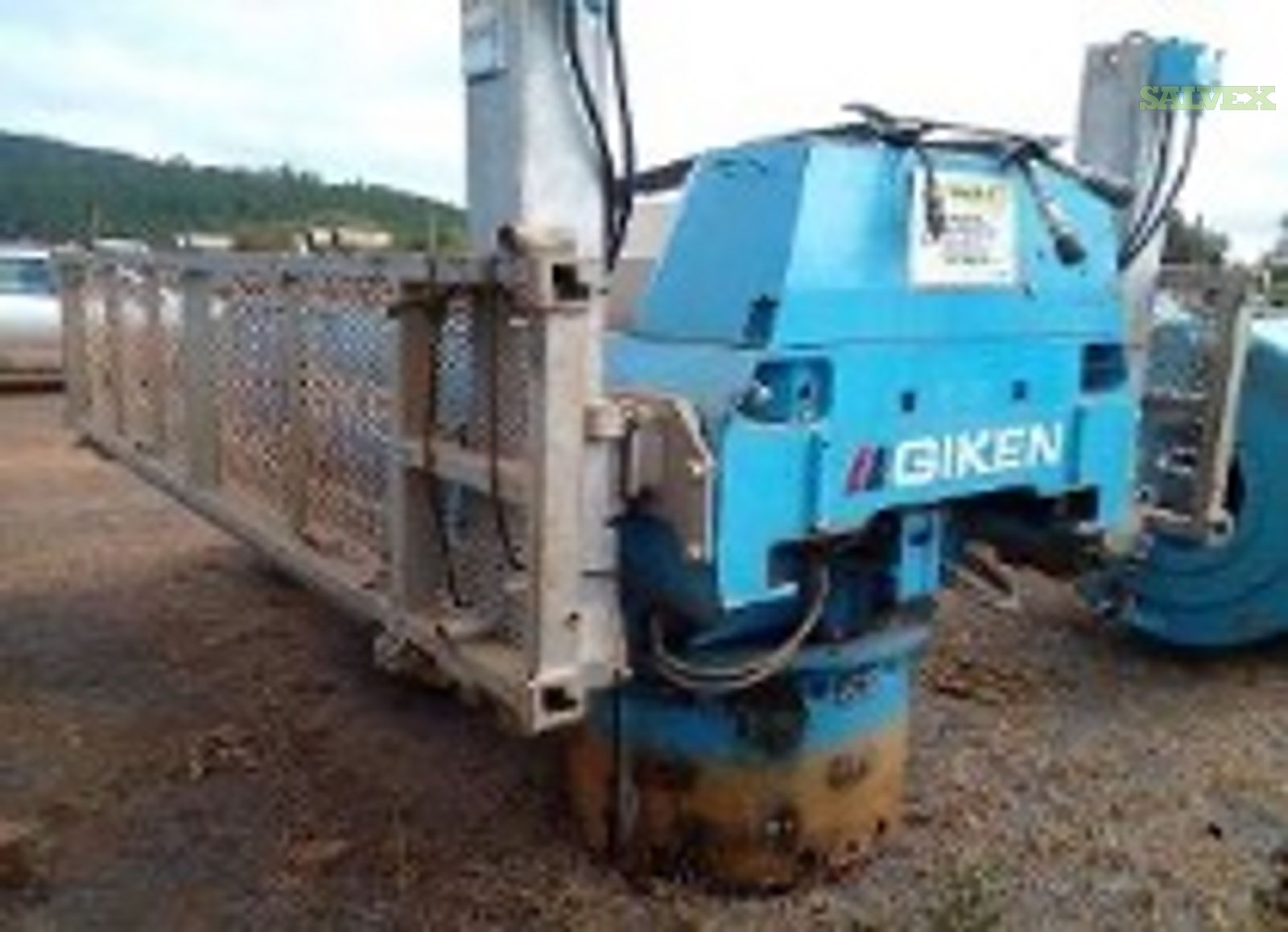

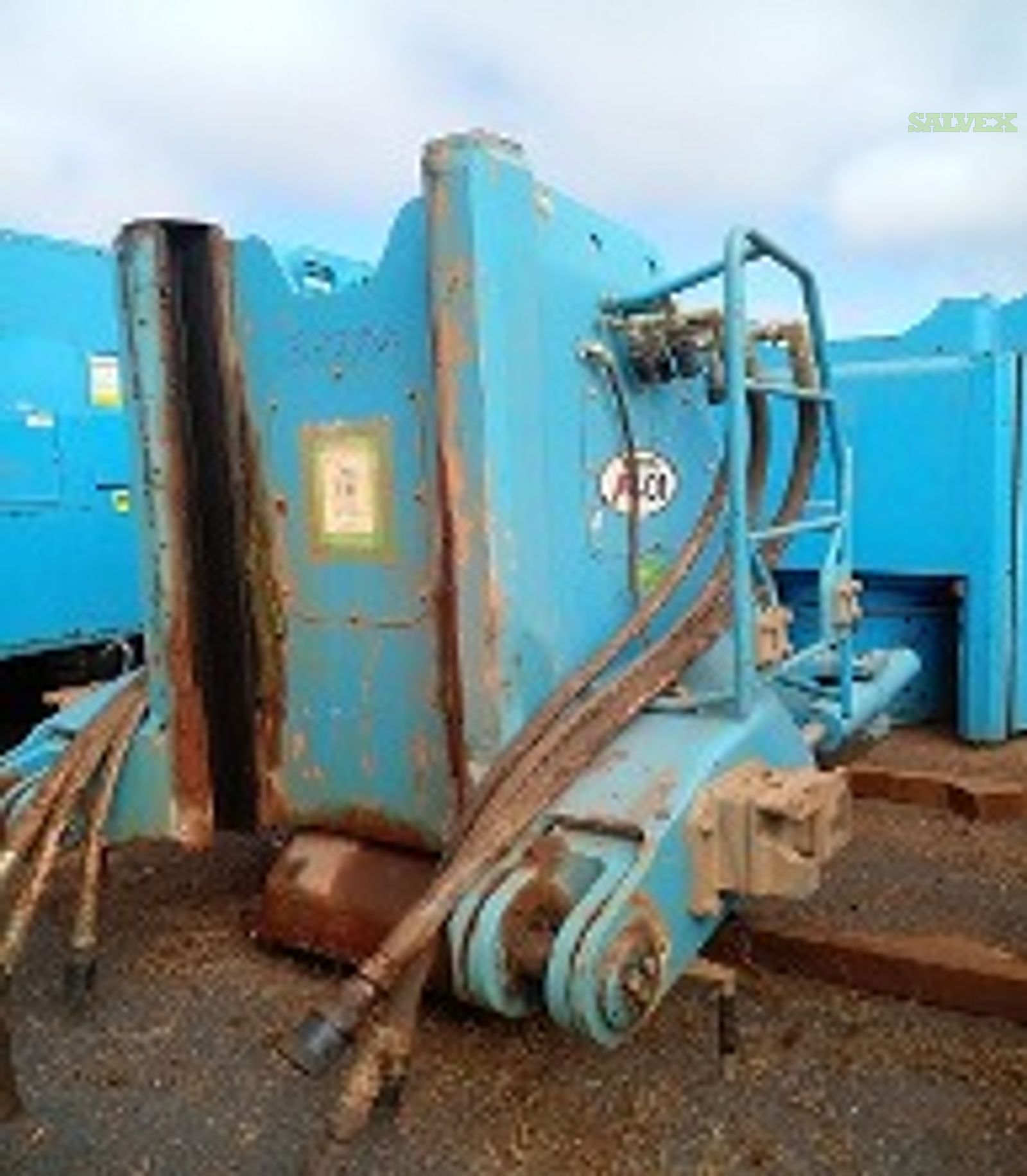

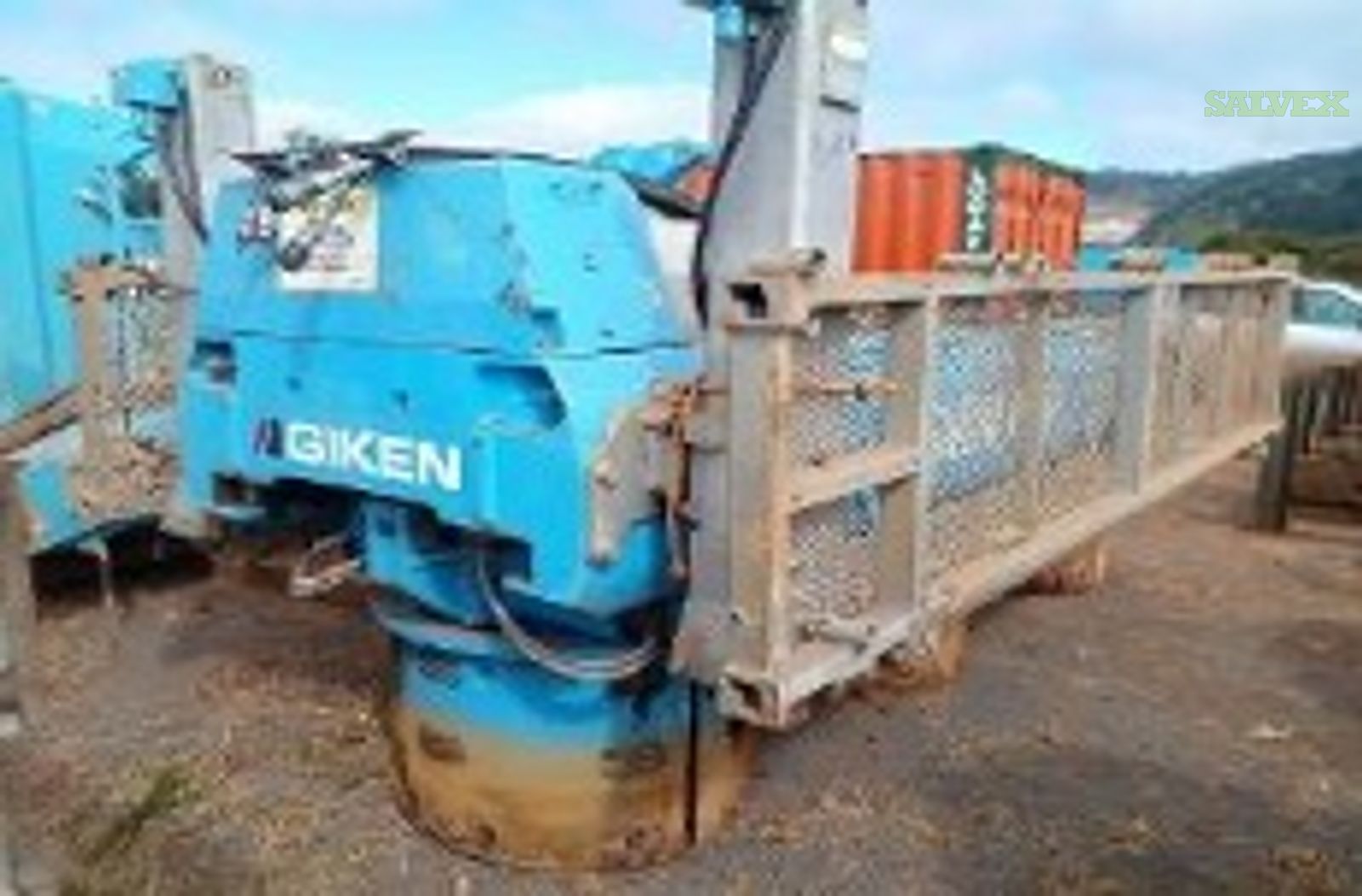

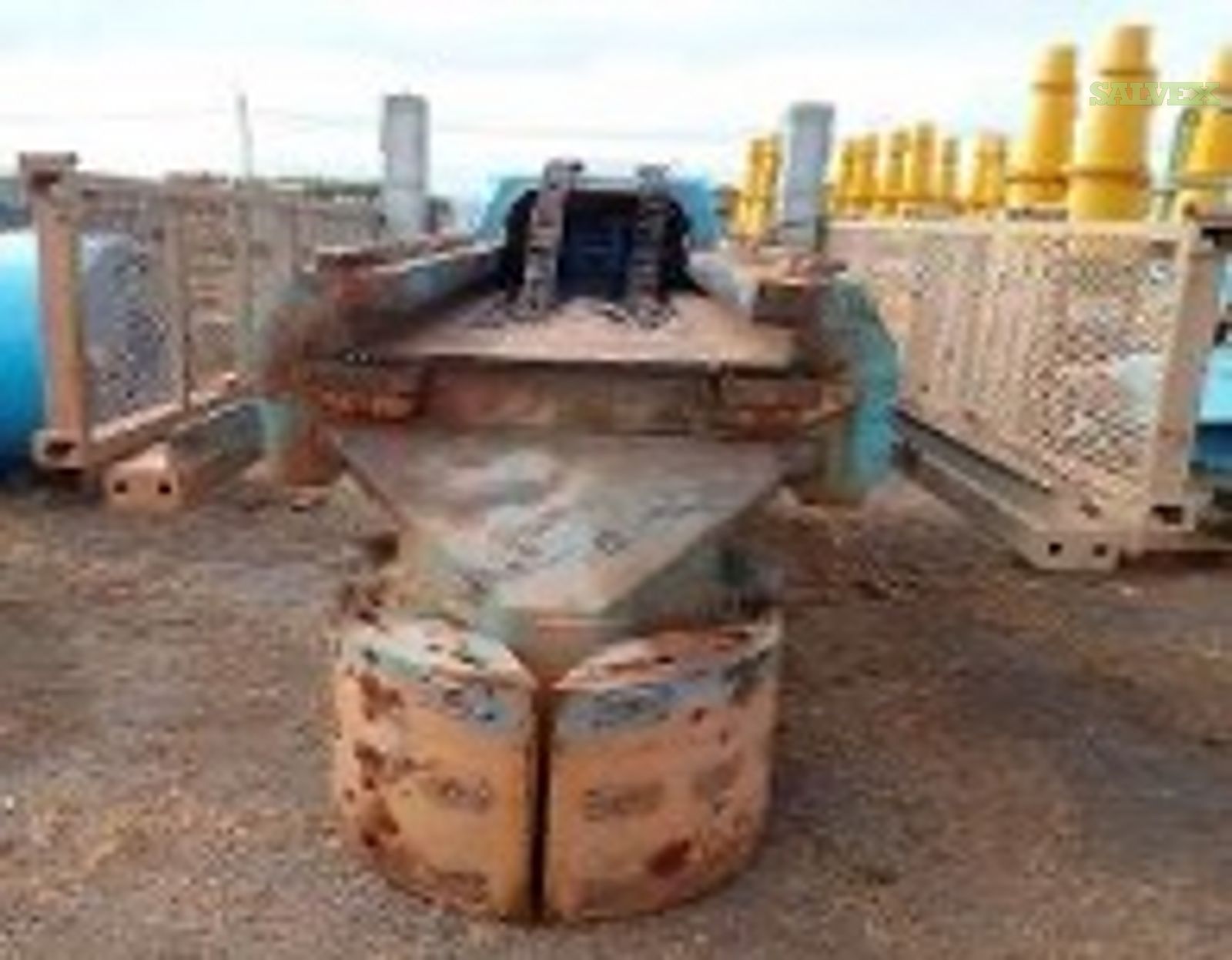

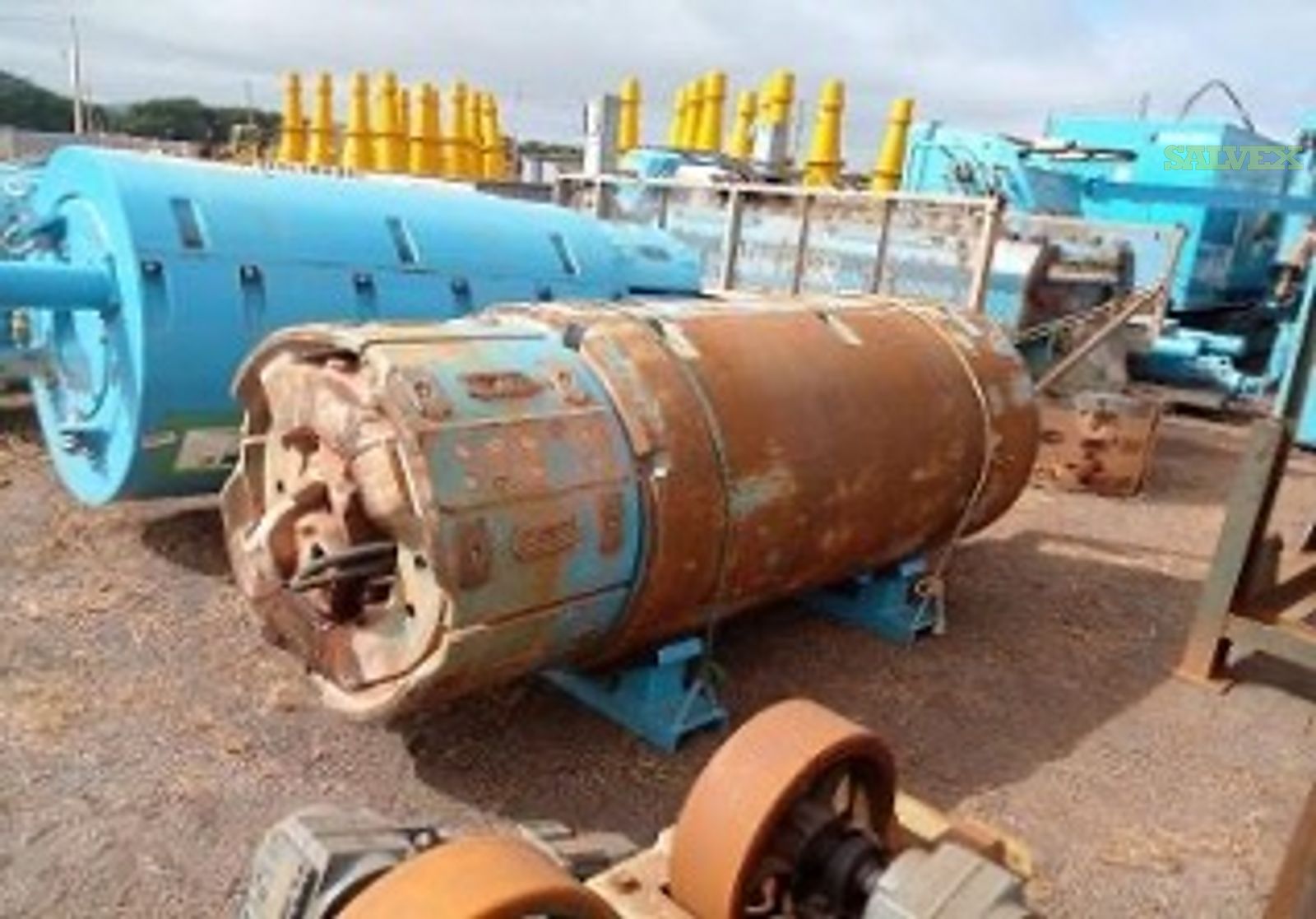

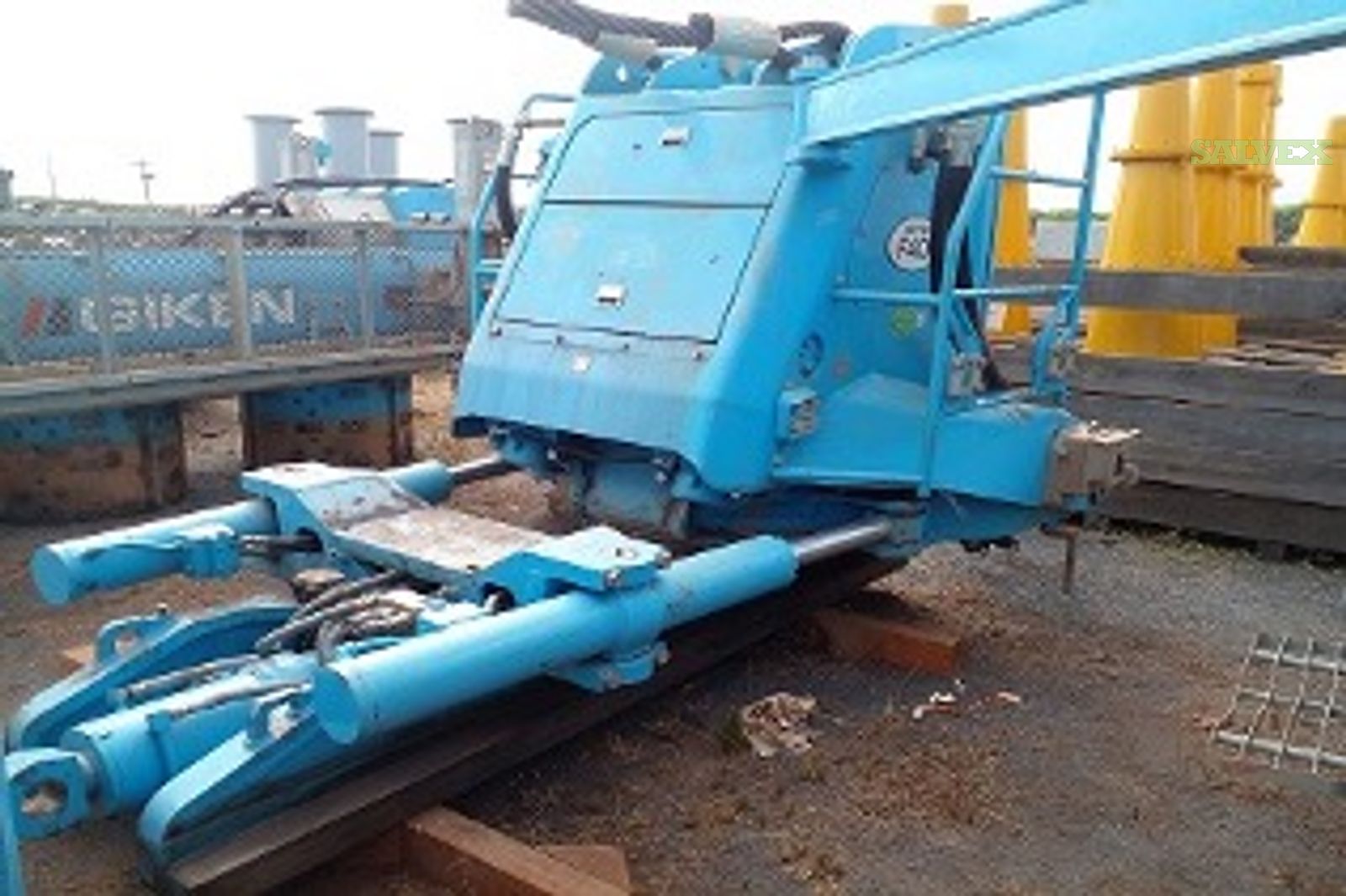

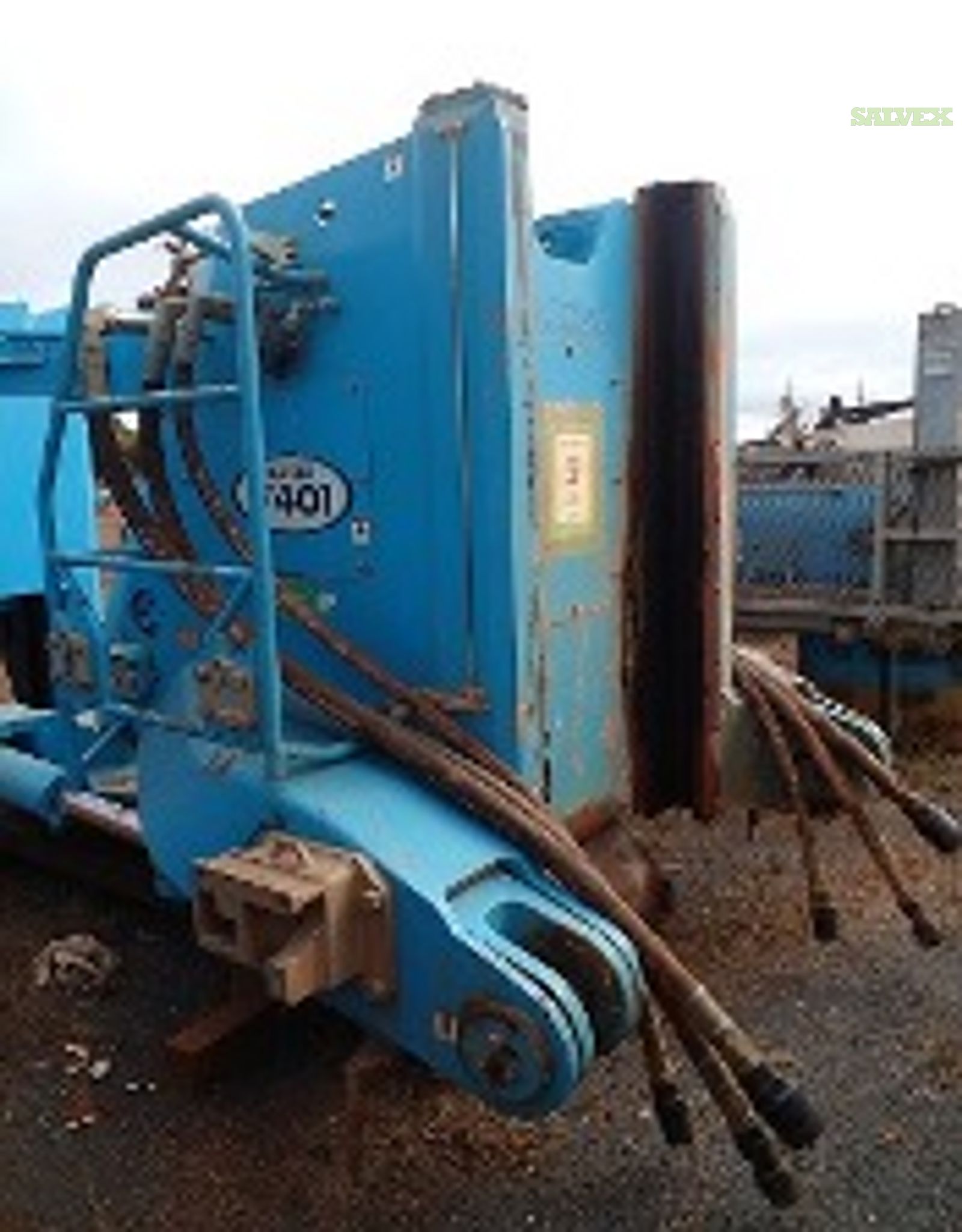

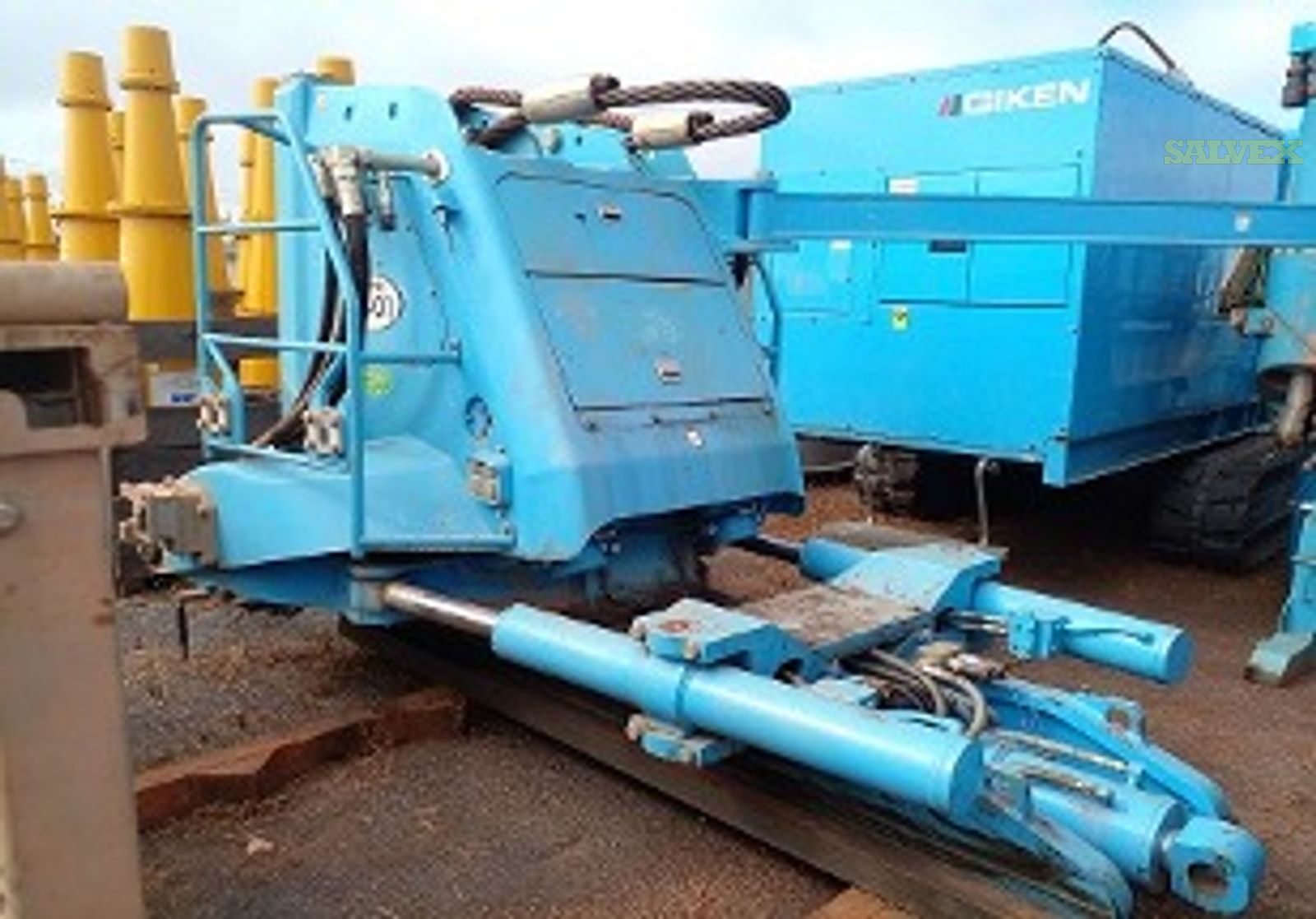

Giken F-401-G1200 Silent Piler (1 Unit)

Welcome to Salvex Marketplace, where you can buy surplus, salvage, and discounted mining equipment as part of a commercial repurposing strategy.

Attention

This item is no longer available.

Giken F-401-G1200 Silent Piler (1 Unit) Share with Buyers

ID	:	183017019
Seller	:	‌
Seller Industry	:	‌
Quantity	:	1 Unit
Manufacturer	:	Giken View more items from this manufacturer
Condition	:	This Giken F-401-G1200 Silent Piler was built in 2019 and it is operational and in good condition. The unit is already dismantled. The loading of the machine is the seller's responsibility and transport is the buyer's responsibility. The buyer will need to provide a truck for transportation. The client will enter the mine with supplier inbound release for material pickup and won't need any training. Fulfill all the buyers' safety requirements. The technical visit to the equipment is mandatory to validate the real physical conditions of the good. Being sold "AS IS, WHERE IS". The buyers are responsible for shipping and handling.
‌	:	‌
Product Location	:
End Time	:	‌

This Giken F-401-G1200 Silent Piler is no longer needed for the company's operation and is being sold as an asset liquidation for its owner.

Technical Specifications:

Year of Manufacture: 2019
Applicable piles:
- Tubular piles: ø800, ø1000, ø1200 mm
- Tubular sheet piles: ø800, ø1000
Max. Press-in Force:
- with Chuck Rotation: 1500 kN
- without Chuck Rotation: 2000 kN
Max. Extraction Force:
- with Chuck Rotation: 1600 kN
- without Chuck Rotation: 2200 kN
Chuck Rotation Torque: 900 kN.m (emergency use up to 1050 kN.m)
Chuck Rotation Velocity: max 11 min^-1
Stroke: 1000 mm
Press-in Speed: 0.7 ~ 4.9 m/min
Extraction Speed: 0.7 ~ 3.5 m/min
Applicable Pile Spacing:
- for 800 mm: 850 ~ 1320 mm
- for 1000 mm: 1050 ~ 1320 mm
- for 1200 mm: 1250 ~ 1505 mm
Control System: Radio Control
Mass:
- for 800 mm: 31850 kg
- for 1000 mm: 32600 kg
- for 1200 mm: 33600 kg

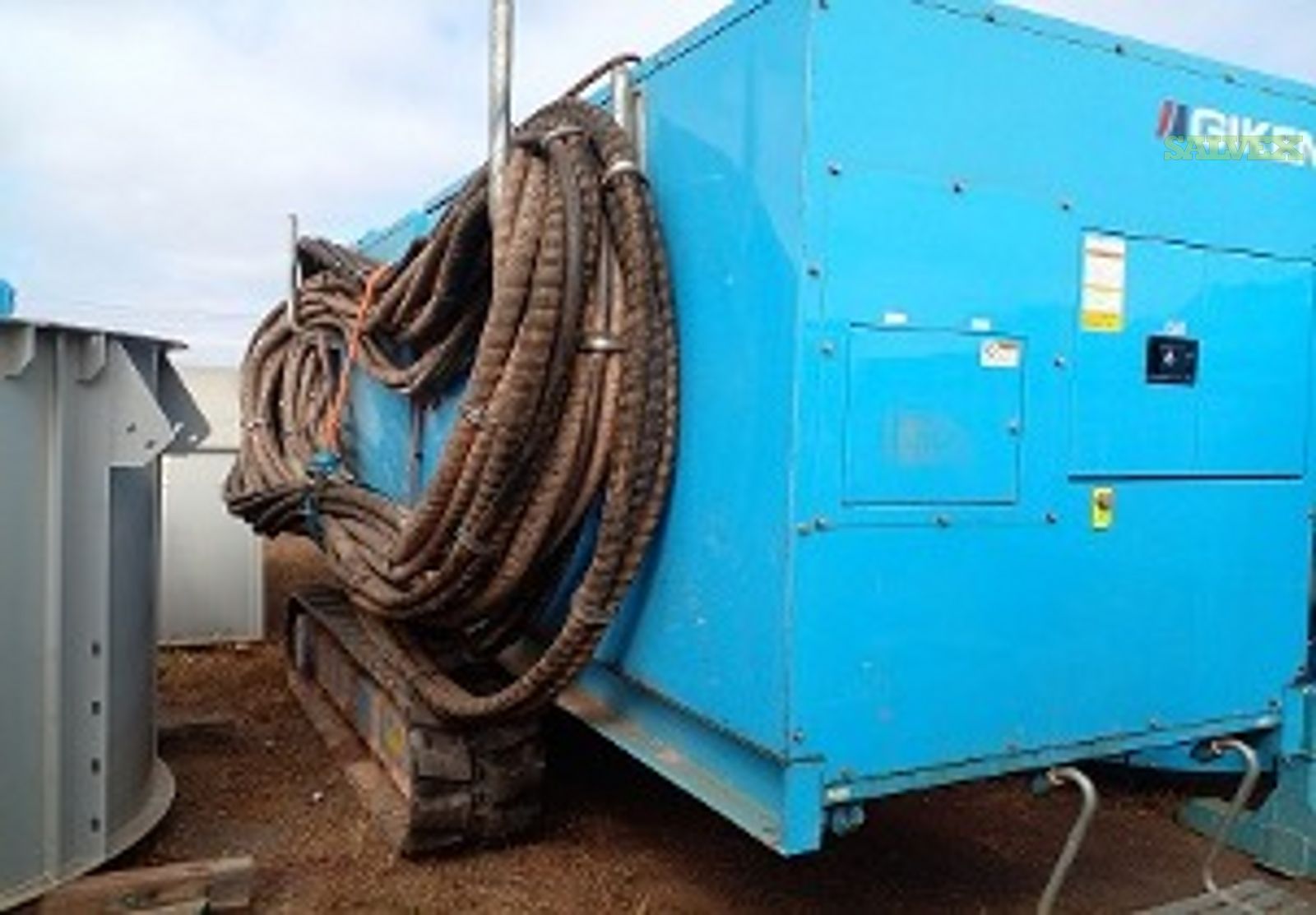

Power Unit:

Power Source: Diesel Engine
Rated Output:
- ?Power Mode: 377 kW (513 ps) / 1800 min^-1
- Eco Mode: 335 kW (456 ps) / 1600 min^-1
- ^{?Super Eco Mode: 293 kW (339 ps) / 1400 min^-1}
Fuel Tank Capacity: 850 L
Hydraulic Reservoir: Piler ECO Oil 660 L
Moving Speed: 1.4 km/h
Mass: 10950 kg (with 30m hose)

Lubricating System:

Loader Mast:

Metal Profile Engrav

Attachment:

Salvex and the seller have the right to reject any and all offers.
This product is sold AS IS, WHERE IS.
Buyer is responsible for all taxes, duties, loading and freight charges.
Seller does not offer any warranties or manufacturer warranties.
Upon receipt of cleared funds, Seller will provide the Buyer a Release Order for item pick up. Title transfers from Seller to Buyer upon issuance of the Release Order.
It is Buyer's responsibility to verify quantities and condition at the time of pick up. Once the product has been removed from Seller's location, there will be no adjustments based on quantity or condition.
