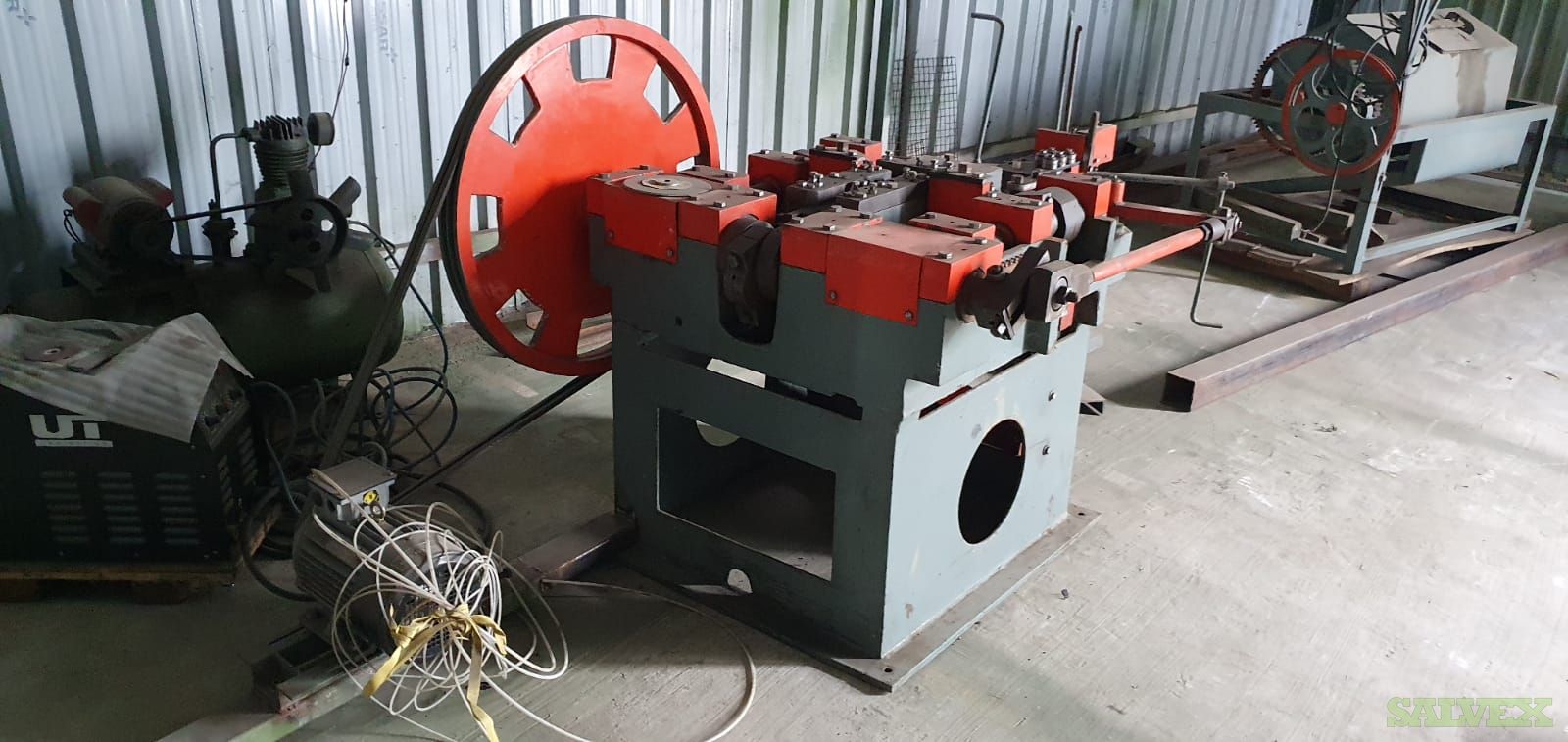

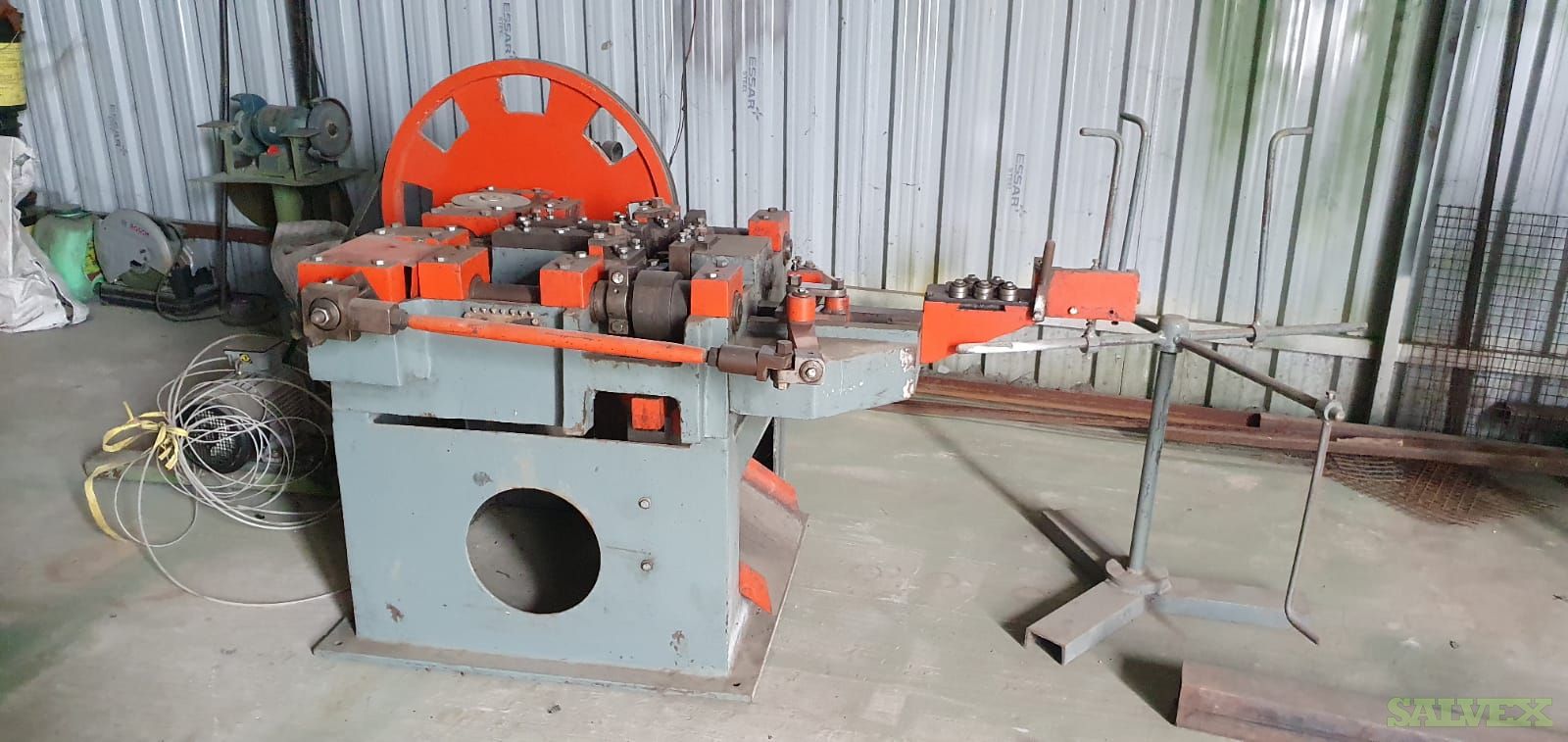

Gauge 23 guage to 4 guage Machine Capacity 600kg - 800kg Automatic Grade Semi-automatic Power 3 HP - 25 HP Usage/Application For Making Wire Nails. Motor Power 2 HP to 15 HP Brand Shankar Length of Nail 0.5" to 8" Type Automatic Production per minute 300-400, 0-100, 500 , 200-300, 400-500, 100-200 Power Source Ac Power Supply Nail Thickness 24 SWG to 4SWG Nails Collation Type Wire Material Steel, Iron Phase Single phase,3 Phase Voltage 220 volt/ 440 volt Condition As in where Is Production Capacity: 600kg- 1000kg per 8 Hours Delivery Time: 30- 40 Days Packaging Details: LOOSE Packing Owing to growing and varying needs of patrons, we are known for offering an extensive range of Wire Nail Making Machine. This Wire Nail Making Machine is quality tested and easy to use. The Wire Nail Making Machine we offer is widely known for their hassle free performance and resistant to corrosion. Features: Precisely engineered Longer service life Maintenance free Operations: A gripping device pulls the wire from the coil through a 5 roller straightening apparatus and pushes it forward so that just the right amount of wire lies beyond the anvil for the head to be formed. The clamping jaws now close and hold the wire tightly while the hammer forges the nail head. The jaws open again and the wire, with the ready-formed head, is fed forward as for the length of nail desired. The jaws now close again and two opposing cutters cut off the nail and, at the same time, form the shaped point. The ejector now throws the wire into the delivery chute, the hammer forms a new head and the process of nail producing continues automatically thus producing quality nails. Specifications: BICWP No. Length of Blank Wire Size S.W.G. Production P.M. Motor H.P. R.P.M. 1 1/4"-1-1.1/4" 16-20 550-600 1.5X1440 (6mm - 31mm) 2 1/2"-1-1.1/2" 14-16 500-550 1.5X1440 (12mm - 337mm) 3 1/2"-2" 16-Dec 450-500 2X1440 (12mm - 50mm) 4 3/4"-3" 14-Sep 400-450 3X1440 (19mm - 75mm) 5 1"-4" 12-Aug 300-400 5X1440
