This item is no longer available.Aker XMT H4 Wellhead Connector (2 Units)
Welcome to Salvex Marketplace where you can buy surplus, salvage, and discounted Offshore as part of a commercial repurposing strategy.
Attention
This item is no longer available.Aker XMT H4 Wellhead Connector (2 Units) Share with Buyers
-
-
Welcome to Salvex Marketplace where you can buy surplus, salvage, and discounted Offshore as part of a commercial repurposing strategy.
| ID | : | 183002167 |
| Seller | : | |
| Seller Industry | : | |
| Current Asking Price | : | $ 700,000 |
| Quantity | : | 2 Units |
| Manufacturer | : | Aker Solution View more items from this manufacturer |
| Condition | : | Unused units. Buyer responsible for any loading and/or handling fees. Buyer must verify quantity & quality at time of, or before loading product.
|
| | : | |
| Product Location | : | |
| End Time | : | |
| Loading Cost | Buyer is responsible for loading costs and logistics to final destination. |
Item Description
This lot of Aker XMT H4 Wellhead Connector - 2 Units is being sold by a company to recover funds and storage space as they no longer need it.
Details

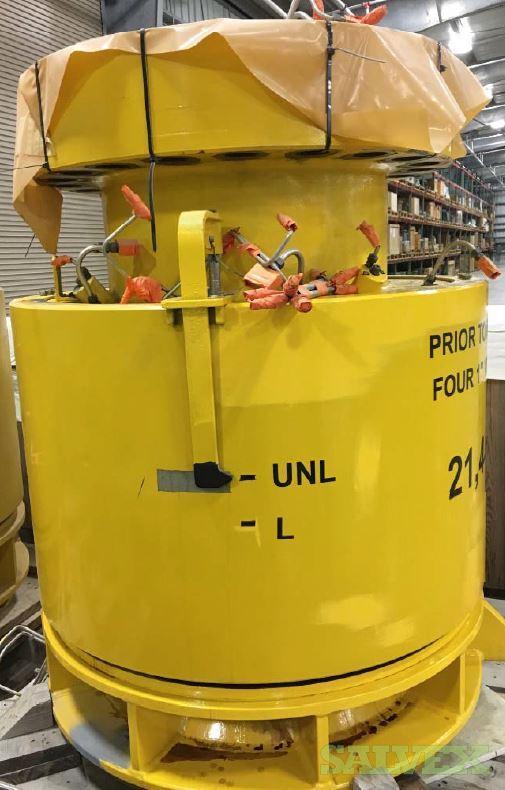

Product: Aker XMT H4 Wellhead Connector
Quantity: 2 Units
Product Description
The Aker XMT H4 wellhead connector has an 18 ¾” upper profile with an internal profile
of 27” compatible with standard 27” H4 profile wellheads. In addition to the standard XMT
wellhead connector, a connector has been modified for secondary barrier activities
A summary of the connector weights and dimensions is detailed below:
| Qty | Configuration |
Dimensions | Weight (lbs) | Upper Profile | Application |
|---|---|---|---|---|---|
| 2 |
Standard 27” H4 Profile |
53.25” x 62.18” | 21,443 (Dry) | API 18 ¾” studded top | Wellhead connection – Subsea X-Tree application |
|
Part Description |
18?3/4” H4 Wellhead Connector |
|
Type/Application |
Subsea hydraulic wellhead connector with API?6A BX Flange |
|
Nominal working Pressure |
15,000 psi [103.5 MPa] |
|
Water Depth |
10,000 ft [3,048 m] |
|
Spool Body Interface (Upper) |
18 ¾” API?6A BX Flange |
|
Wellhead Interface (Lower) |
Hydraulic Connector with Hydraulic Secondary Release, Vetco H4 VX/VT profile |
|
Preload |
6.0 million lfb [26.7 MN] |
|
Total Rated Tension Capacity |
6.0 million lfb [26.7 MN] |
|
Bending @ 0 Tension and Pressure |
5.5 million lfb?ft [7.5 MN?m] |
|
API Product Spec Level |
PSL 3G |
|
API Material Class Designation |
HH |
|
Temperature Class |
API?6A Class U, 0°F to 250°F [?18°C to 121°C] |
|
Weld Overlay Material |
Alloy 625, API 6A, Fe 10 Class |
|
Normal Hydraulic Operating Pressure |
5,000 psi [34.5 MPa] |
|
Max Containable Operating Release Pressure |
7,500 psi [51.7 MPa] |
|
Control Fluid |
HW433 |
|
Control Fluid Cleanliness |
SAE AS4059 Clas 6B?6F |
