This item is no longer available.Scrap Parts - from Damaged Steam Turbine (490 Tons)
Welcome to Salvex Marketplace where you can buy surplus, salvage, and discounted scrap as part of a commercial repurposing strategy.
Attention
This item is no longer available.Scrap Parts - from Damaged Steam Turbine (490 Tons) Share with Buyers
- ‌
- ‌
Welcome to Salvex Marketplace where you can buy surplus, salvage, and discounted scrap as part of a commercial repurposing strategy.
| ID | : | 182995013 |
| Seller | : | ‌ |
| Seller Industry | : | ‌ |
| Quantity | : | 490 Tons |
| Condition | : | The turbine got damaged by overspeed. It is sold "AS IS, WHERE IS". The buyer will be responsible for handling and all logistics cost. |
| ‌ | : | ‌ |
| Product Location | : | |
| End Time | : | ‌ |
Seller Description

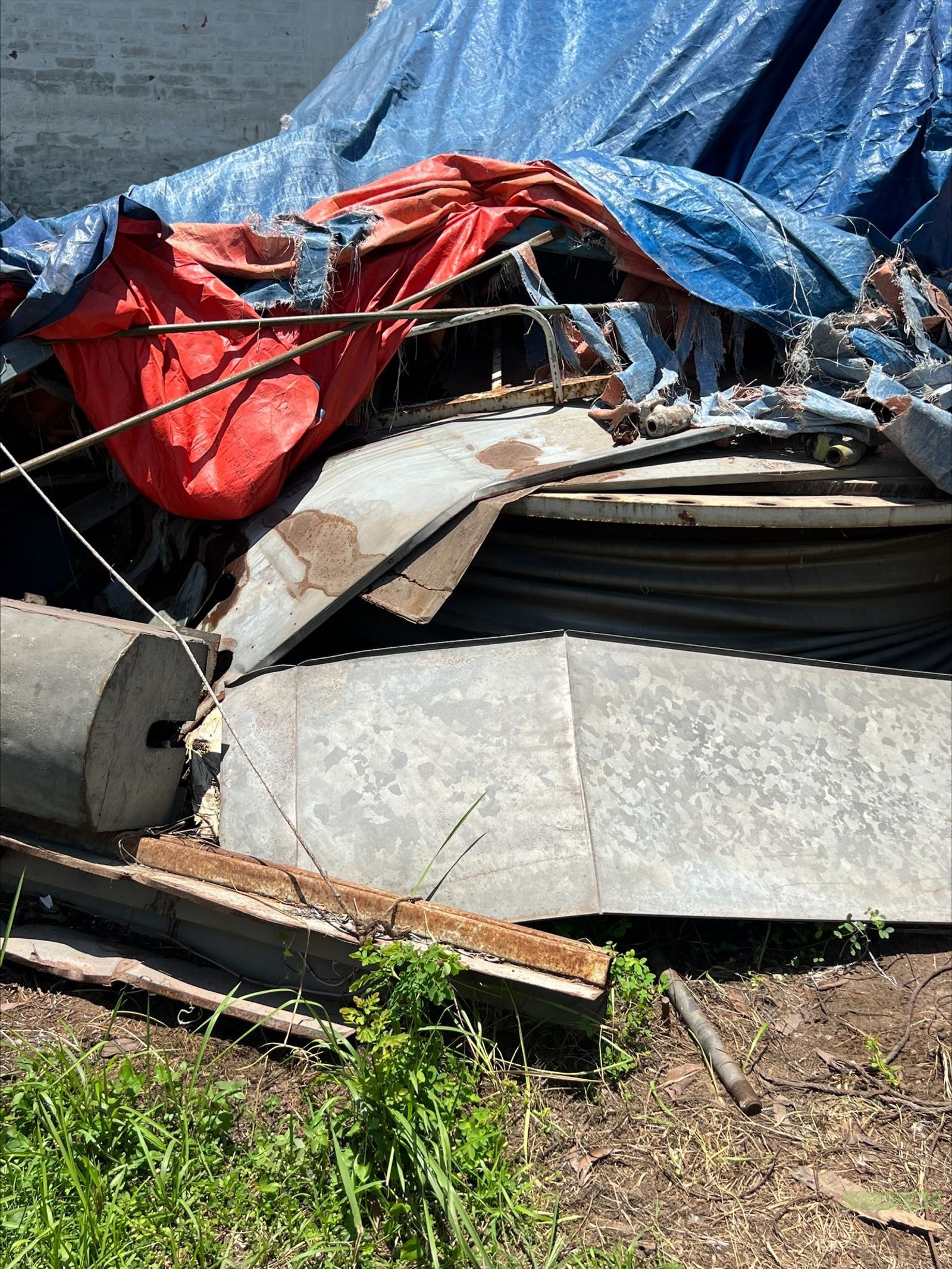

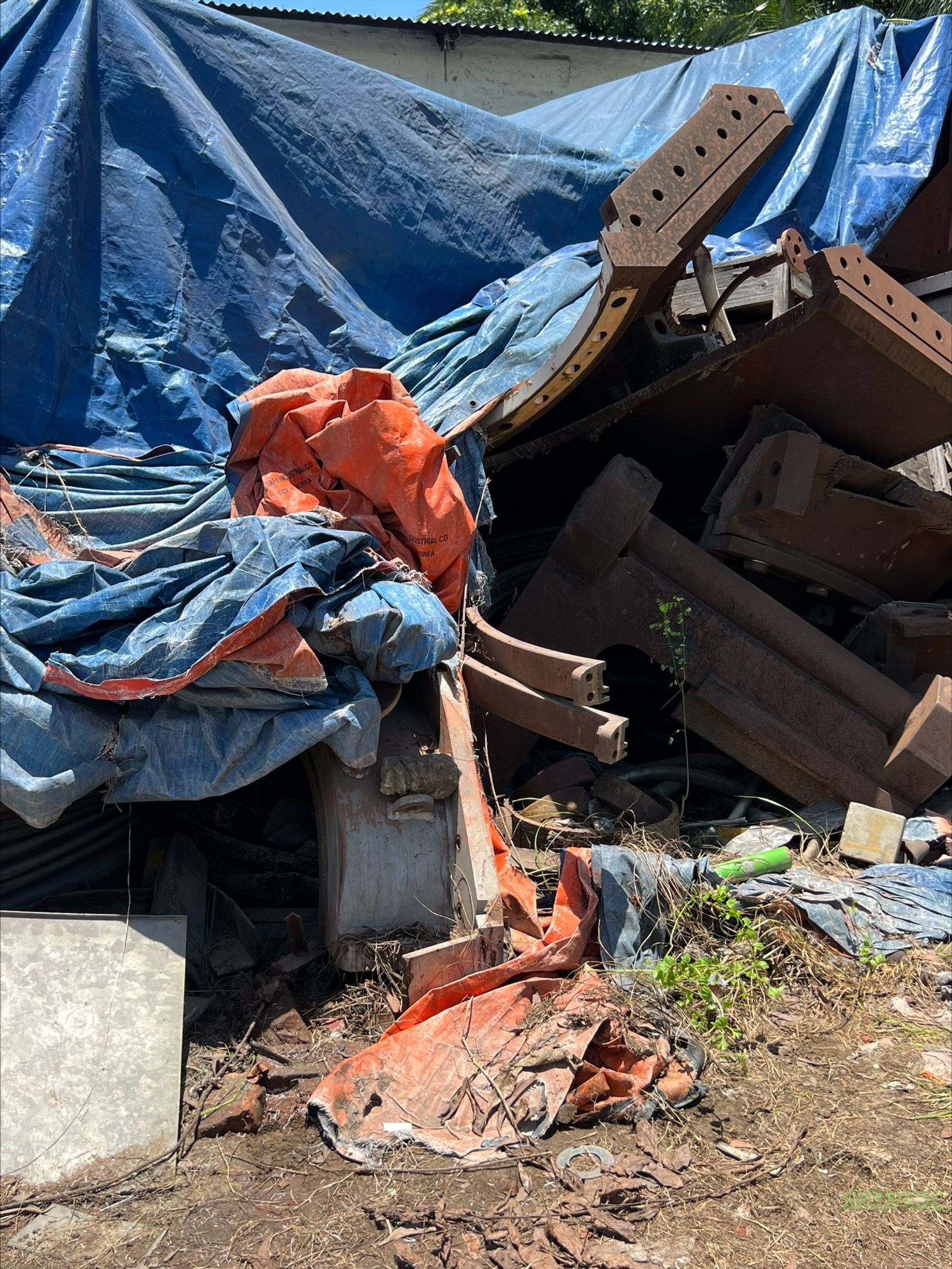

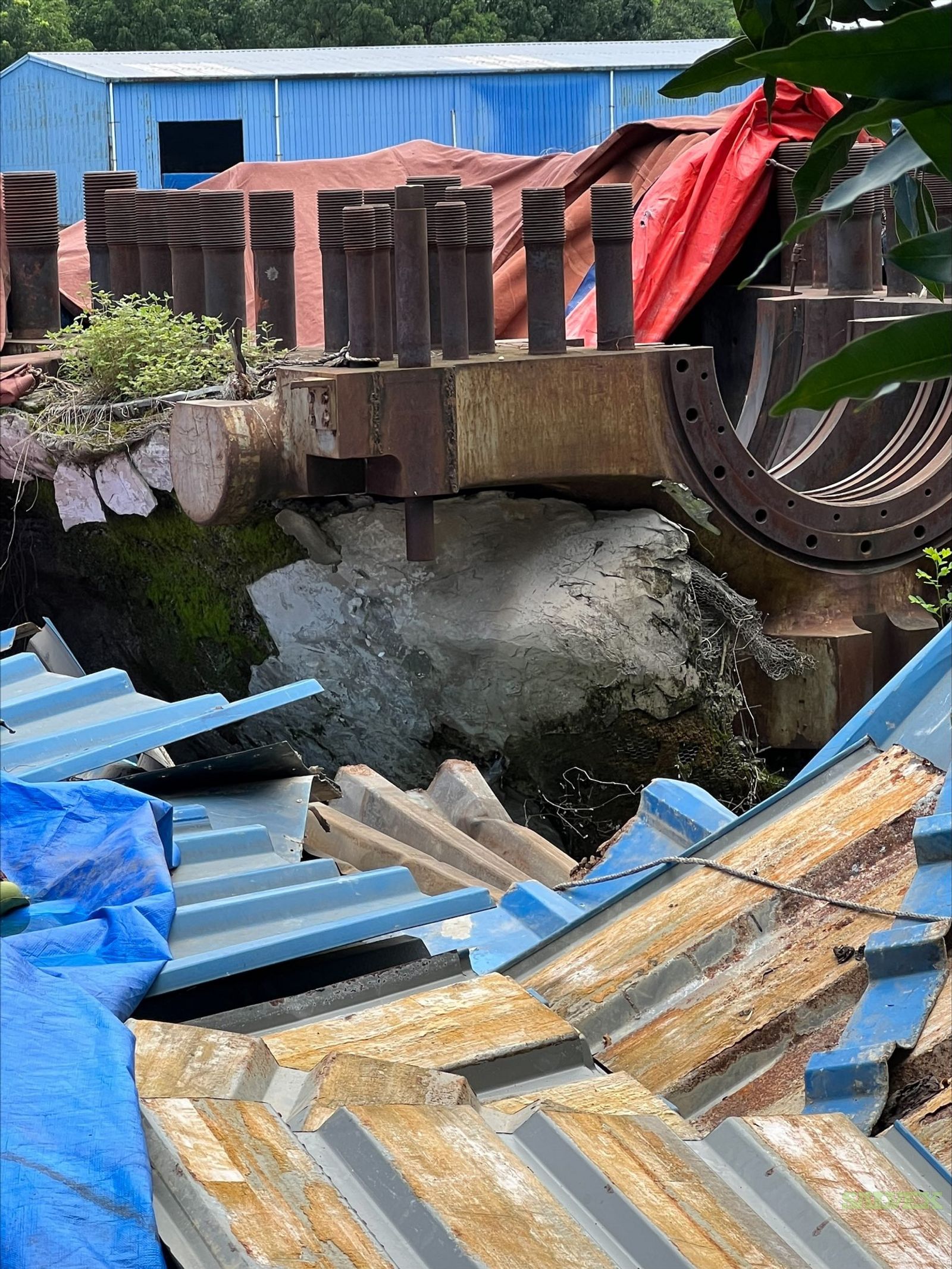

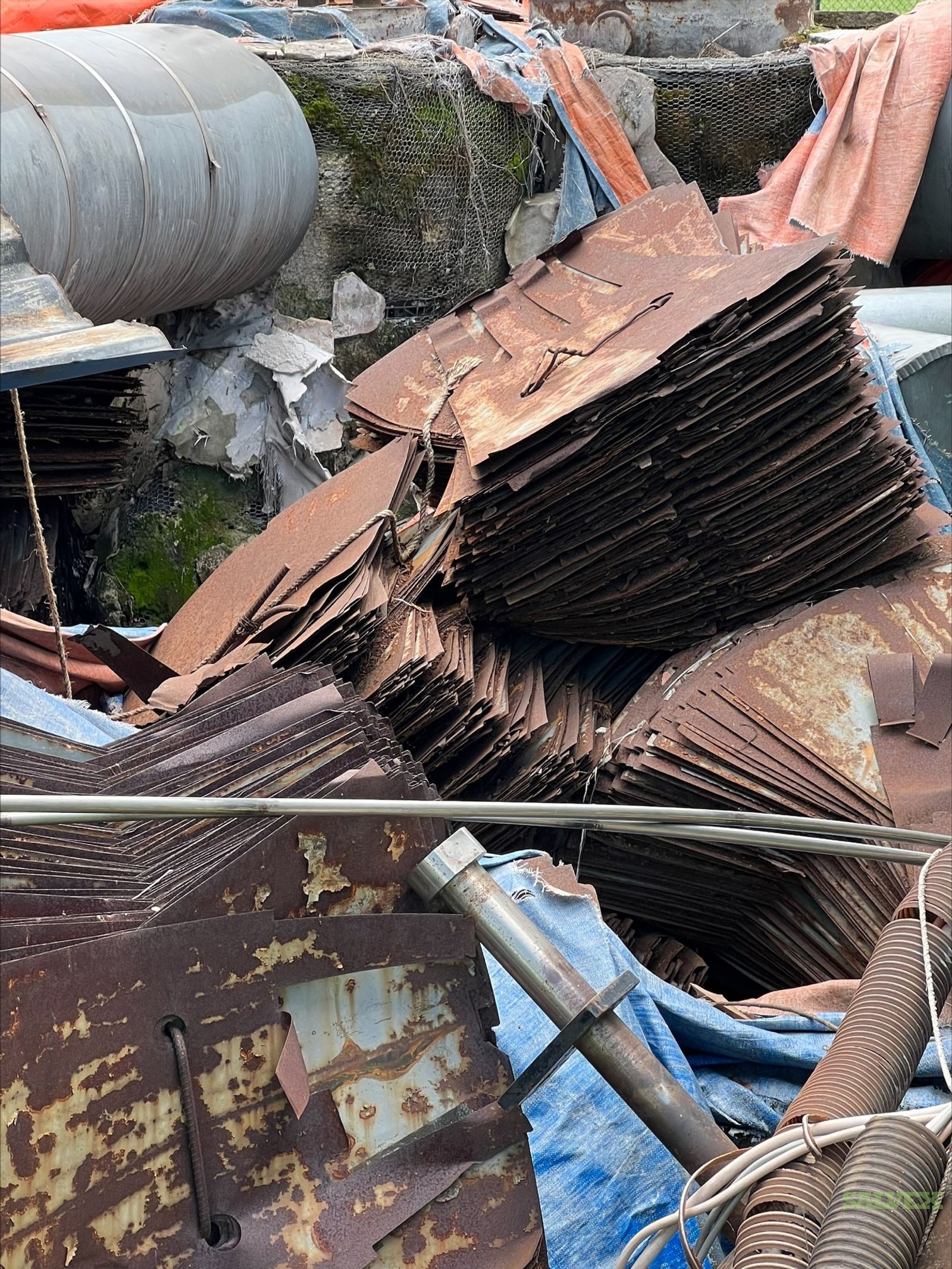

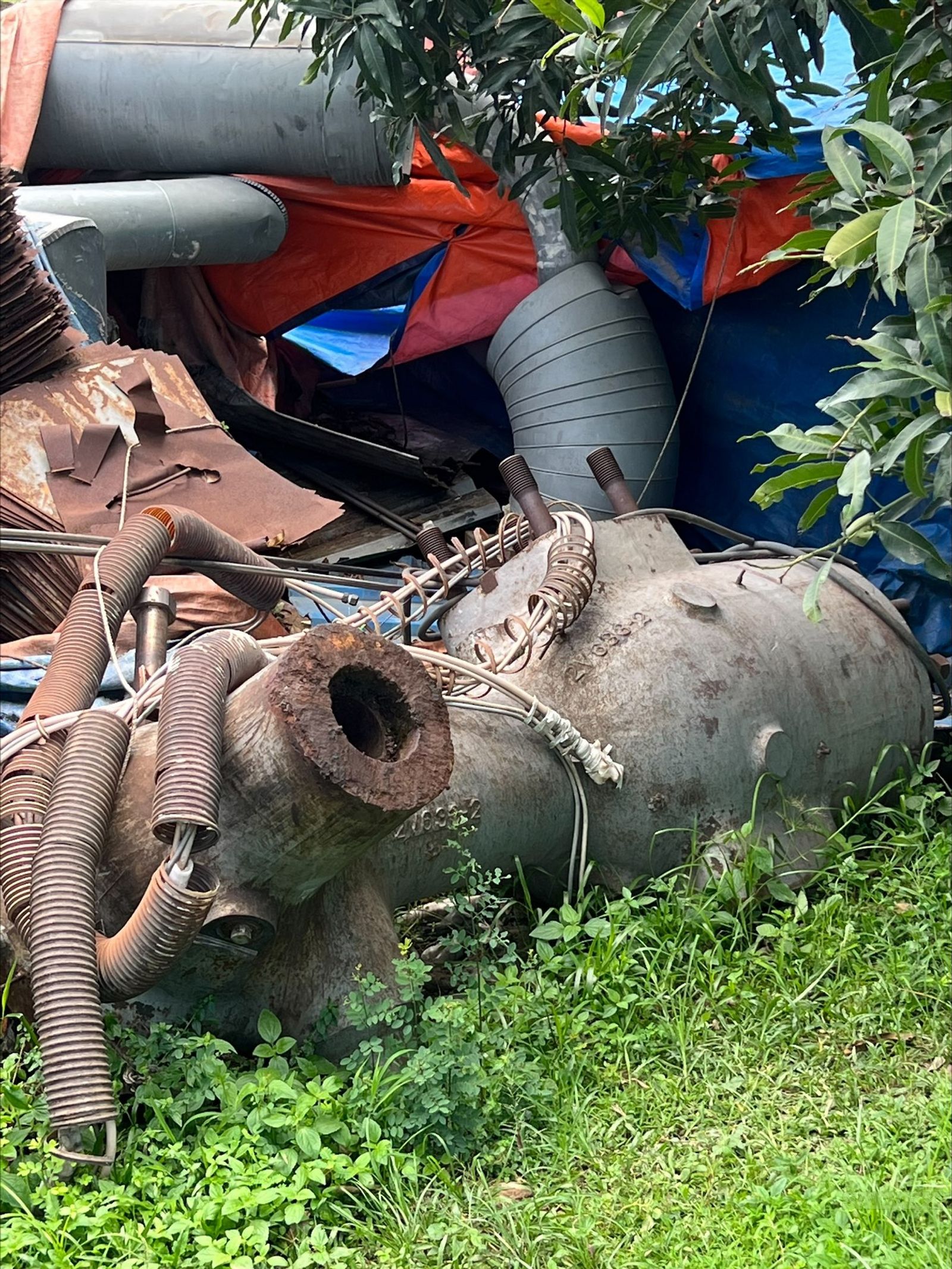

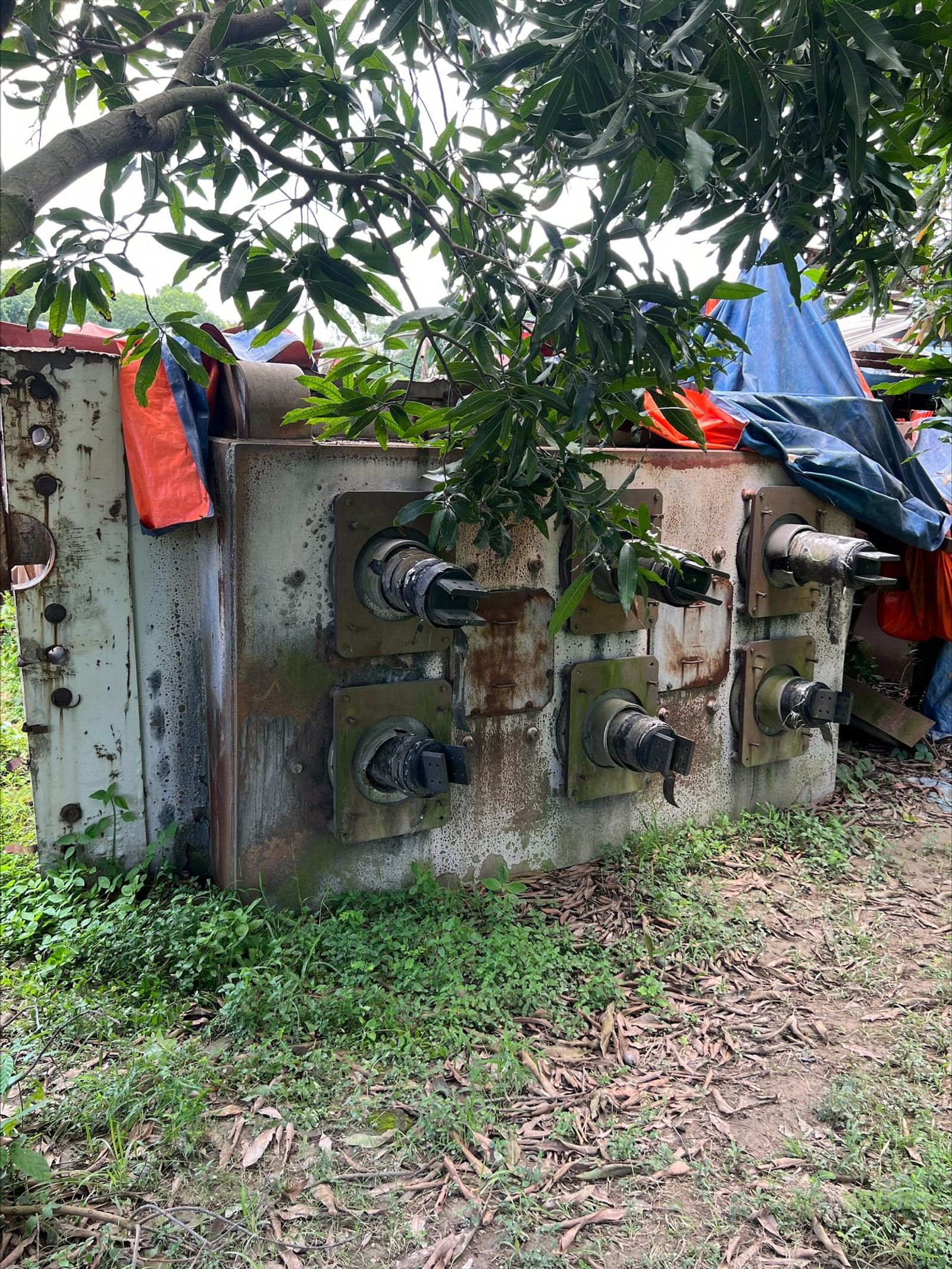

Parts from one Fuji Electric 180mw electrical generator which self-destructed (see picture) and two stage 180mw steam turbine made by Fuji electric (see picture).
Watch the Virtual Inspection Video here.
Details of scrapped materials of damaged steam turbine:
|
Description |
Material |
Approx. Quantity (Ton) |
|
Bearing, bearing pedestal cover, HIP rotor, LP rotor, HIP inner casing, HIP outer casing, LP inner casing, LP outer casing, Cross over pipe, ST, etc |
High alloy steel |
150 |
|
Turbine cover, acoustic cover, anchor bolts, guide pins, embedded plates, turning gear materials |
Alloy steel |
30 |
|
ST main valves and bypass valves |
High alloy steel |
25 |
|
Generator stator & rotor winding |
Copper |
25 |
|
Generator stator & rotor wedge, generator acoustic cover, generator cooler |
Steel materials |
170 |
|
Generator rotor shaft |
Alloy steel |
27 |
|
Generator IPB |
Aluminum |
3 |
|
Miscellaneous materials like pipe, valves, nut, bolt, special tools, fans, motors, electrical panels etc |
Mostly steel |
40 |
|
Condenser damage tube |
Stainless steel |
5 |
|
Damaged Cable |
Copper &Â insulation |
15 |
|
Total damaged materials approx. quantity in ton | Â |
490 |
Â
| Synchronous Generator | |
| Type | GTLR1584/67-2 |
| Output | 237,600 kVA |
| Voltage | 14,700 VÂ |
| Current | 9,332 A |
| Ex. Voltage | 500 V |
| Ex. Current | 1,084 A |
| Insul Class | F |
| Coolant Temp | 50 degreeC |
| Standard | Â IEC34-3 [1988] |
| Serial Number | K1G69054L1 |
| Manufactured | May 2001 |
| Phases | 3 |
| Power Factor | 0.8 |
| Rating | Cont |
| Frequency | 50 Hz |
| Poles | 2 |
| Speed | 3,000 rpm |
| Inertia Const | 5.45 kWs/ kVA |
| Protection | IP44 |
| Dehumidifier | 6.6 kW |
Â
| Steam Turbine | |
| Type | Reaction Reheat Condensing Type |
| Two Casing Double Flow Exhaust | |
| Rated Output | 189,800 kW |
| Rated Speed | 3,000 rpm |
| HP Steam Pressure | 110 BarA |
| HP Steam Temperature | 565 degreeC |
| Reheat Steam Pressure | 24.7 BarA |
| Reheat Steam Temperature | 565 degreeC |
| Exhaust Pressure | 0.070 BarA |
| Serial Number | K1G69054G1 |
| Manufactured | May 2001 |
Seller Terms
- Salvex and the seller have the right to reject any and all offers.
- This product is sold AS IS, WHERE IS.
- Buyer is responsible for all taxes, duties, loading and freight charges.
- Seller does not offer any warranties or manufacturer warranties.
- Upon receipt of cleared funds, Seller will provide the Buyer a Release Order for item pick up. Title transfers from Seller to Buyer upon issuance of the Release Order.
- It is Buyer's responsibility to verify quantities and condition at the time of pick up. Once the product has been removed from Seller's location, there will be no adjustments based on quantity or condition.
