This item is no longer available.Turbomach Caterpillar Solar Centaur 40 Gas Turbine Generator
Welcome to Salvex Marketplace where you can buy surplus, salvage, and discounted gas turbines and generators as part of a commercial repurposing strategy.
Attention
This item is no longer available.Turbomach Caterpillar Solar Centaur 40 Gas Turbine Generator Share with Buyers
-
-
Welcome to Salvex Marketplace where you can buy surplus, salvage, and discounted gas turbines and generators as part of a commercial repurposing strategy.
| ID | : | 182986721 |
| Seller | : | |
| Seller Industry | : | |
| Current Asking Price | : | $ 270,000 |
| Quantity | : | 1 Gas Turbine Generator |
| Manufacturer | : | Solar Turbines View more items from this manufacturer |
| Condition | : |
|
| | : | |
| Product Location | : | |
| End Time | : | |
Item Description
This Solar Centaur 40 Gas Turbine Generator Set is no longer needed by the company that owns it and is now being sold in an asset liquidations sale.

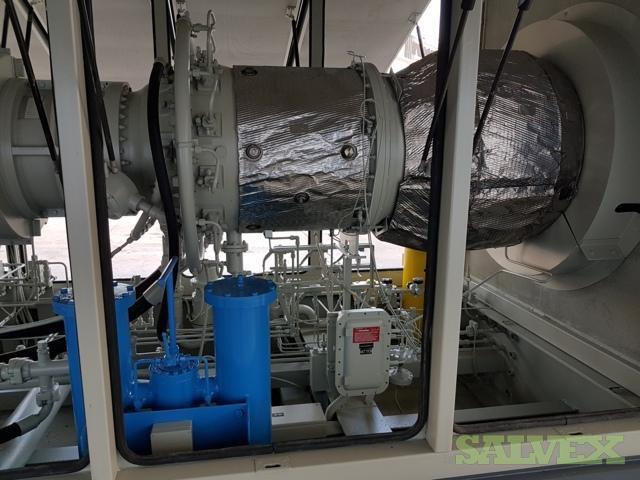

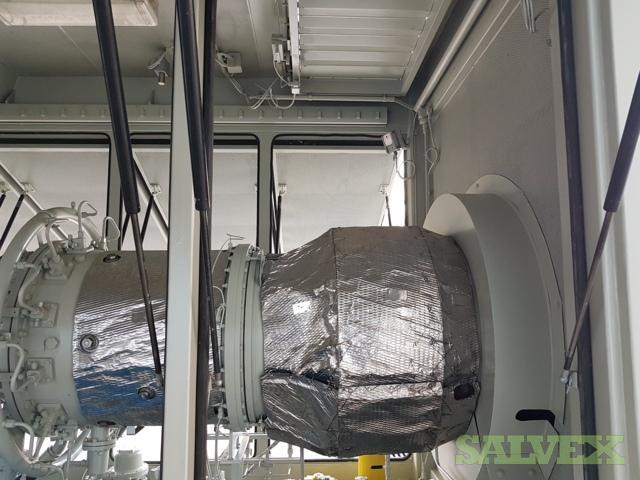

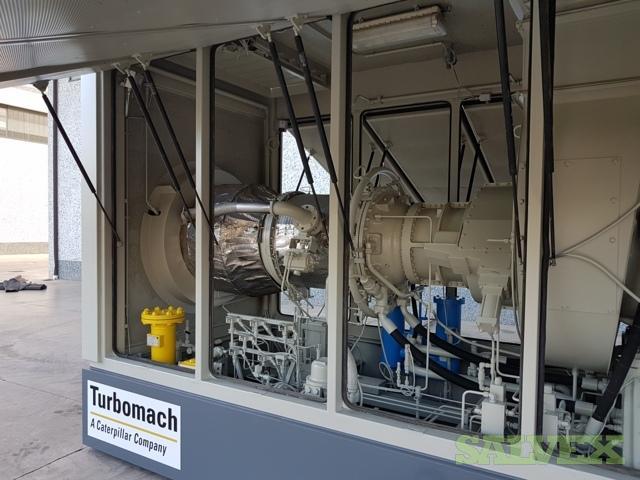

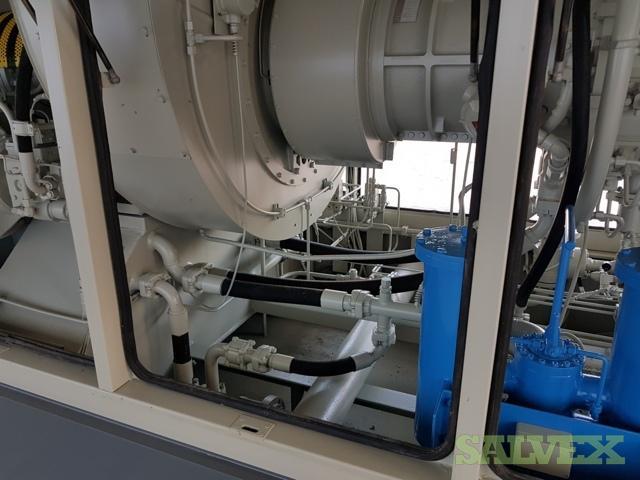

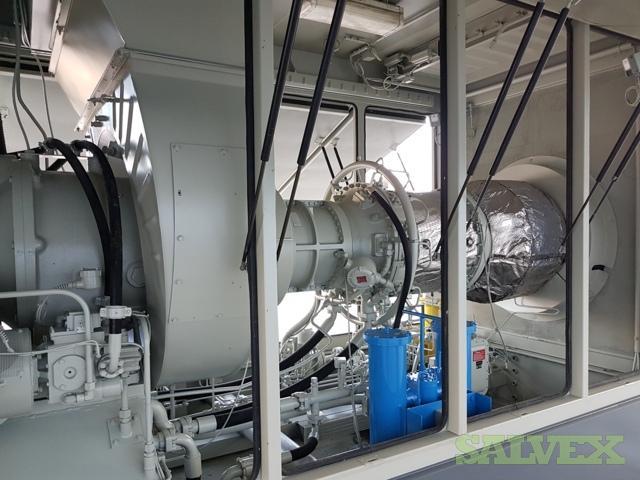

Type: Solar Centaur 40
Manufacturer: Turbomach Caterpillar
Nominal Power: 3.5 MW;
Dual Fuel: Natural Gas or LDO
Year of Manufacture: 1997
Year of Commissioning: 1999;
Year of Decomissioning: 2004
Speed: 14,950 rpm (50 Hz);
Turbine Stages: 3
Compression Stages: 11
Compression Ratio: 9.5: 1
NOMINAL POWER:
3427 kW at 15 ° C (Natural Gas);
3342 kW at 15 ° C (Liquid fuel);
Fuel Consumption: 1048 Nm3 / h (P = 2720 kW at 40 ° C);
Exhaust Gas Rate: 16.2 kg / sec. (P = 2720 kW at 40 ° C);
Weight: 1,846 kg;
Operating Hours: 4,200 h;
Ignitions: 62

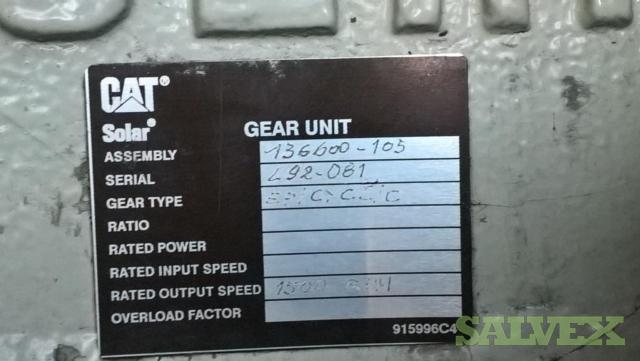

ADAPTER:
Output Speed: 1,500 RPM
Performance: 98%
Weight: 551 kg.

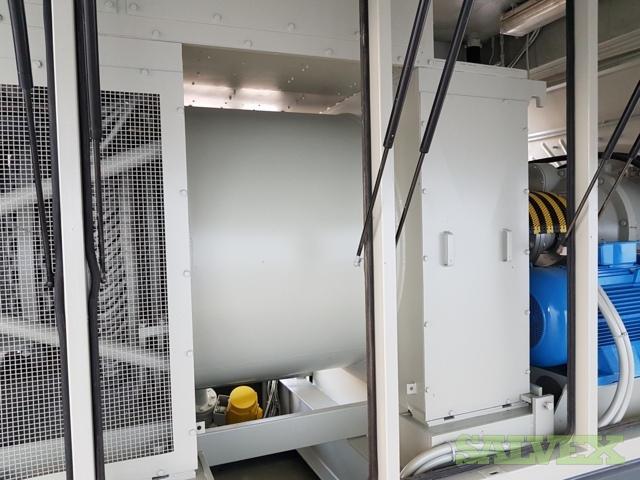

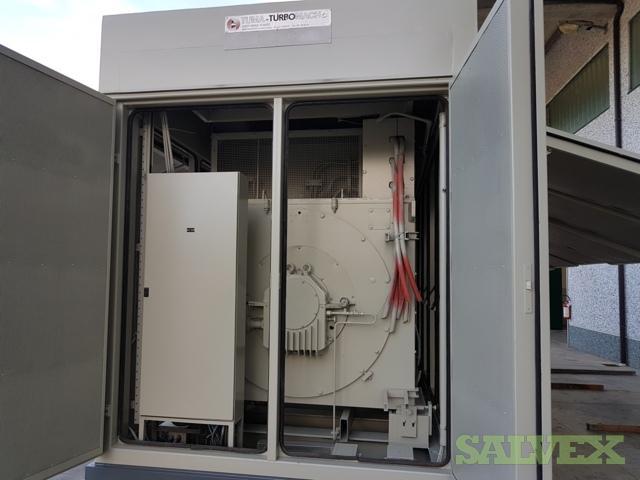

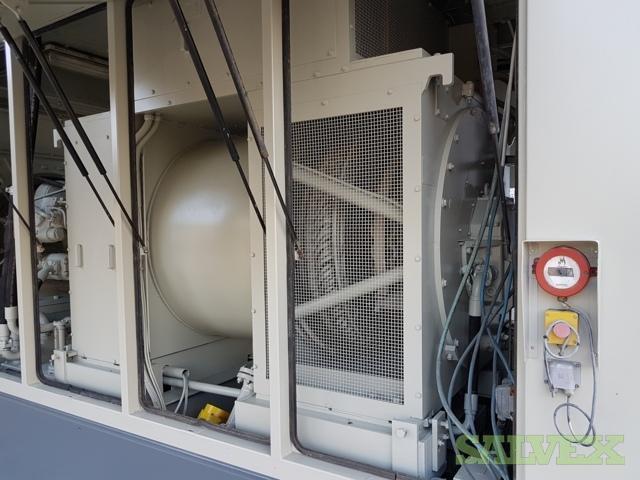

GENERATOR:
Manufacturer: Alstom
Type: AA56BL7 / 4AP
Power: 5000 KVA at 40° C
COS: 0.8
Voltage: 6300 V, 50 Hz
Speed: 1500 RPM
Temperature Probes: 6 X PT 100 (STATOR)
2 X PT 100 (Bearings)
Insulation: Class F
Protection: IP 21
Voltage Adjustment: +/- 5%
Short Circuit: 3 X IN MAX. X 3 SEC.

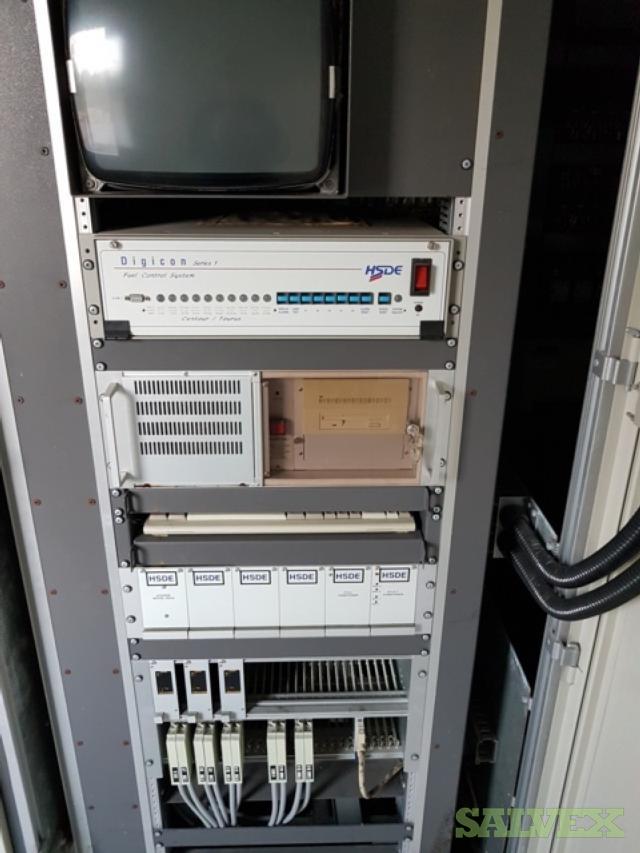

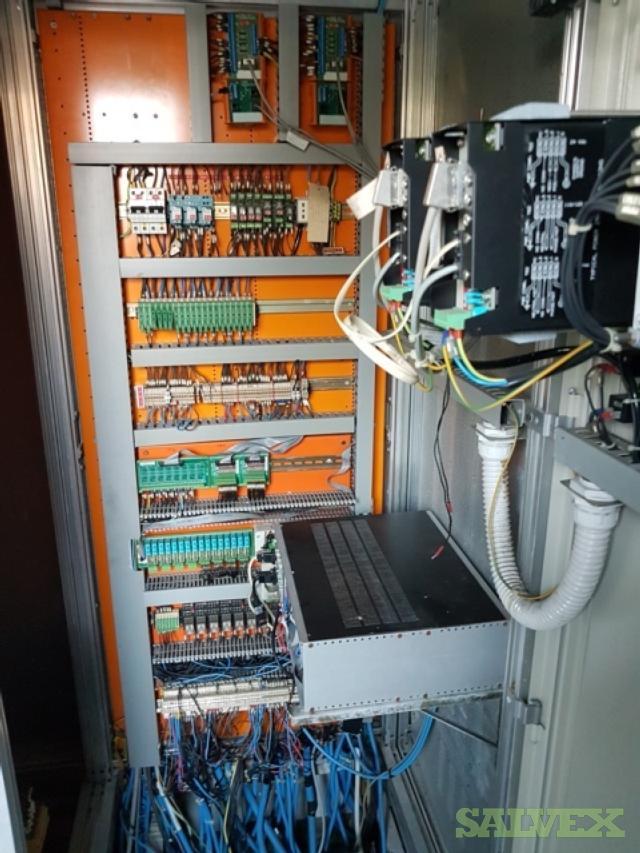

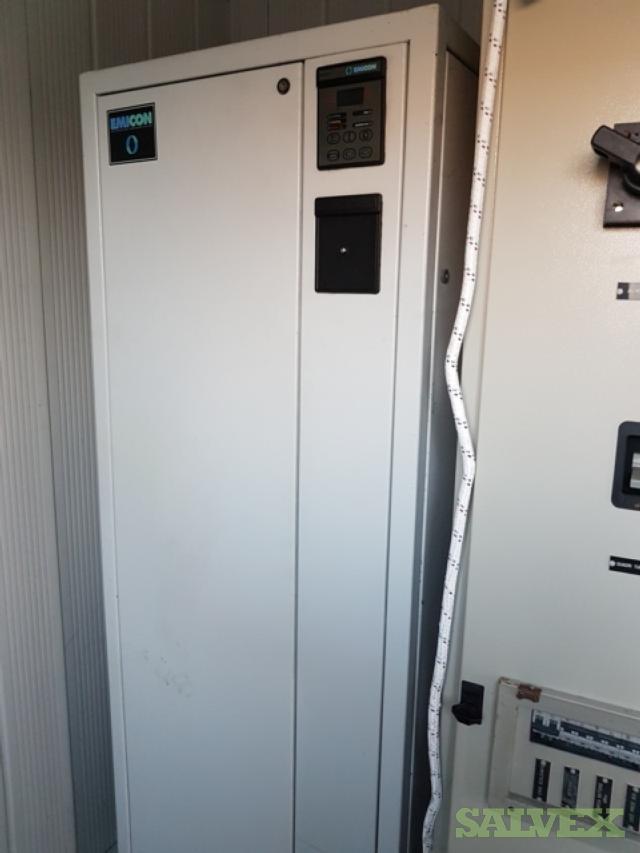

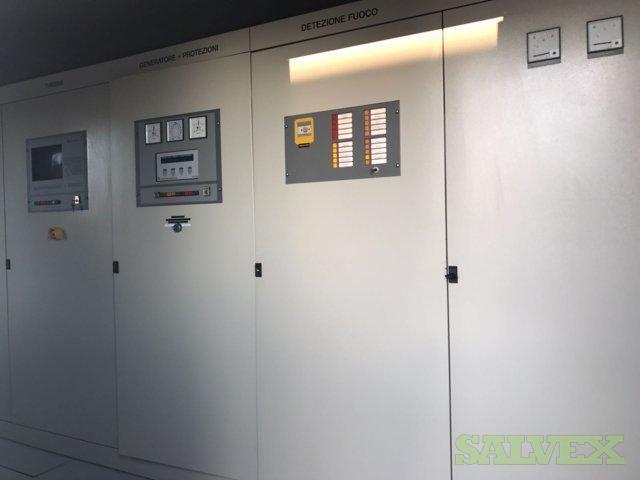

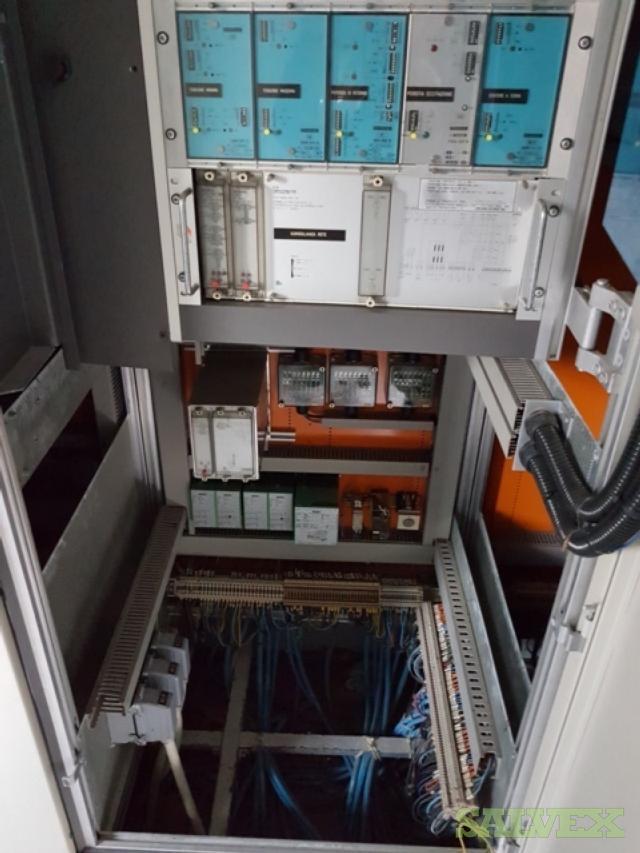

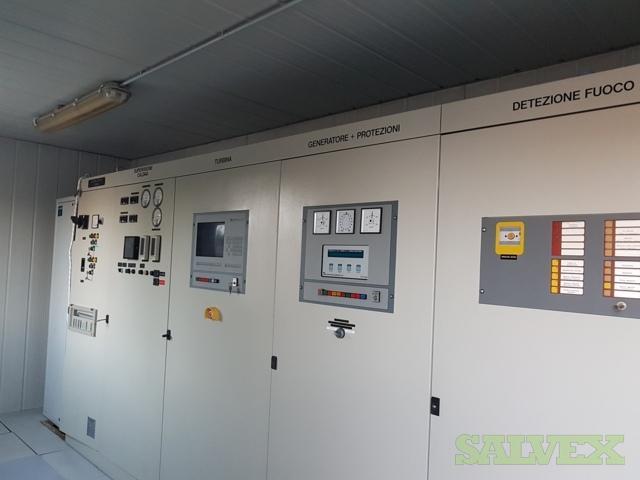

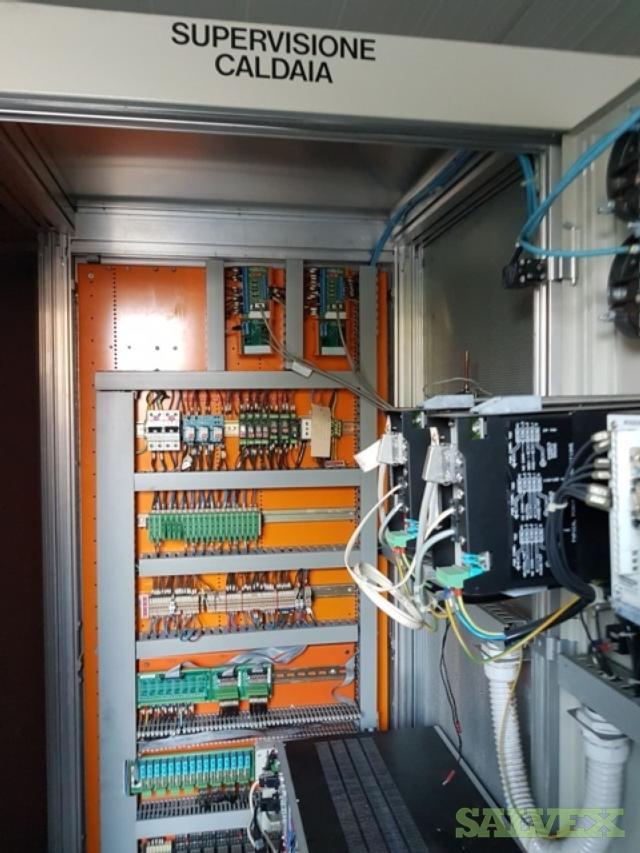

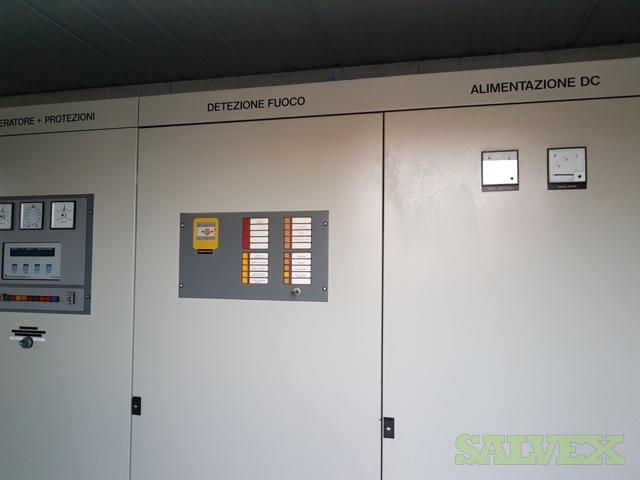

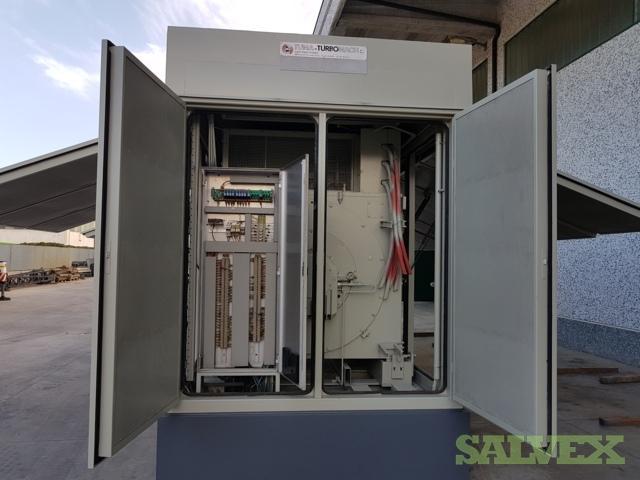

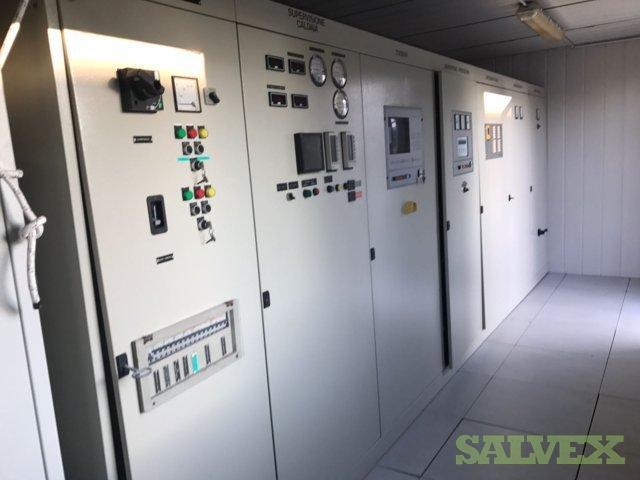

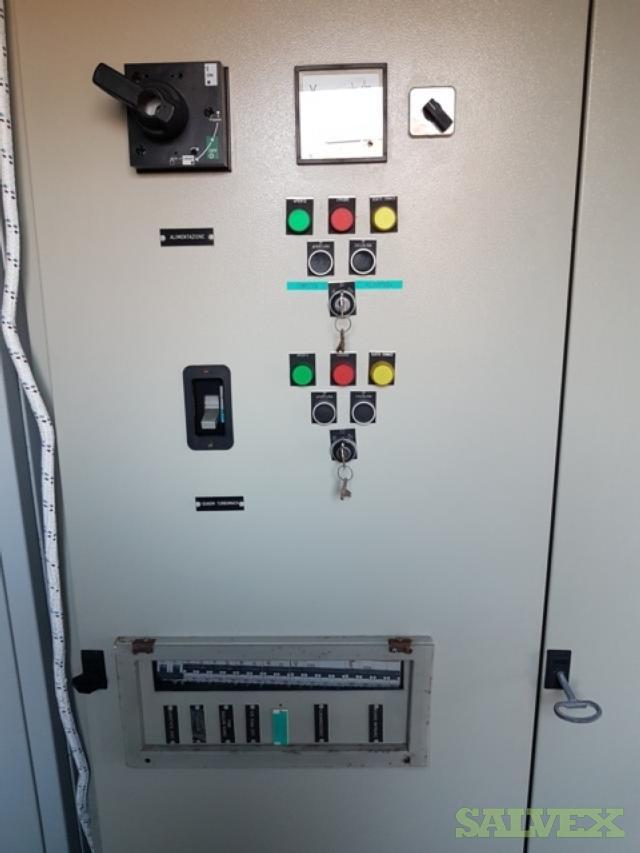

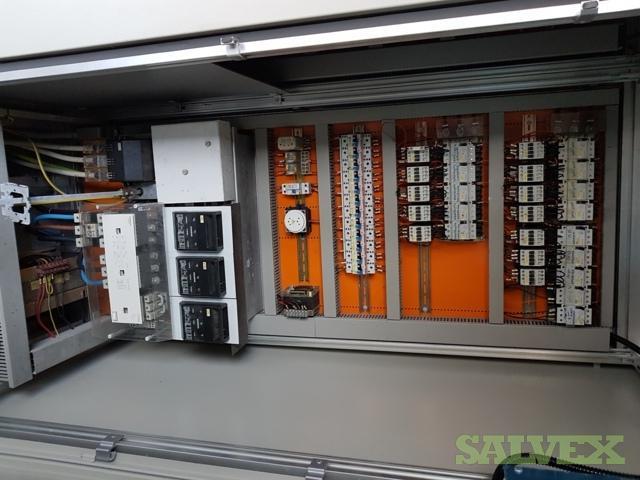

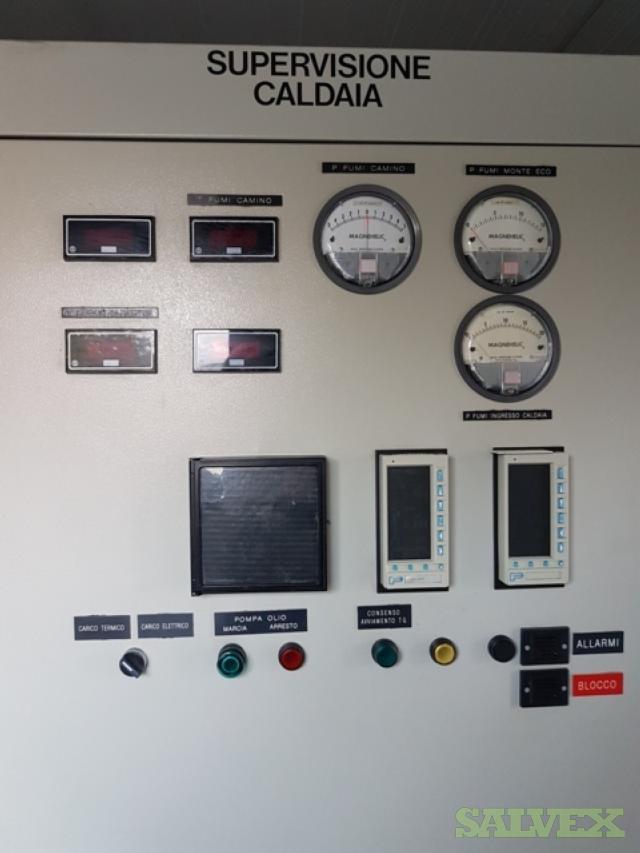

SWITCHBOARDS:

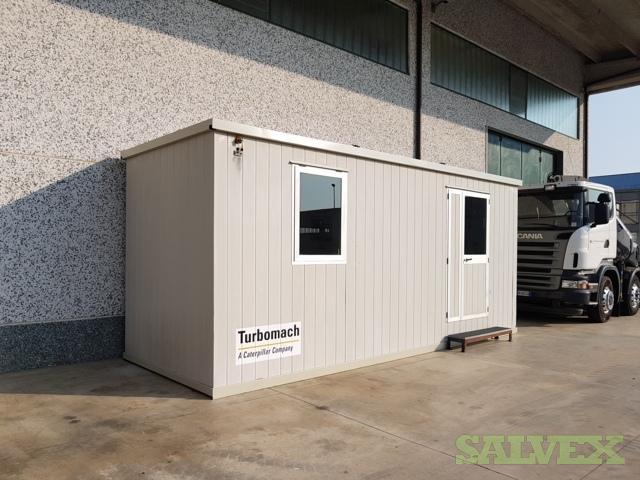

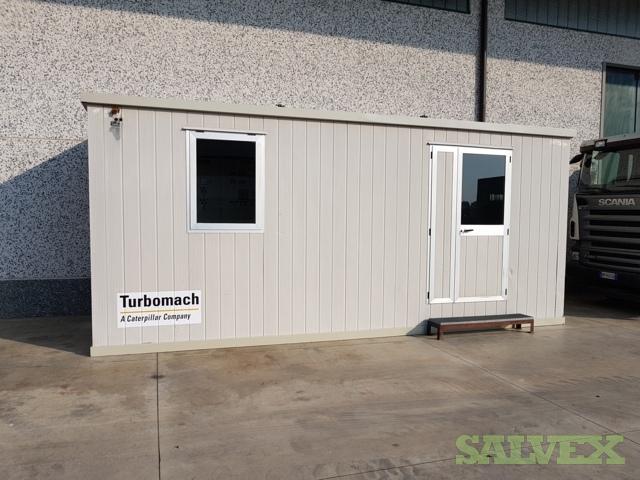

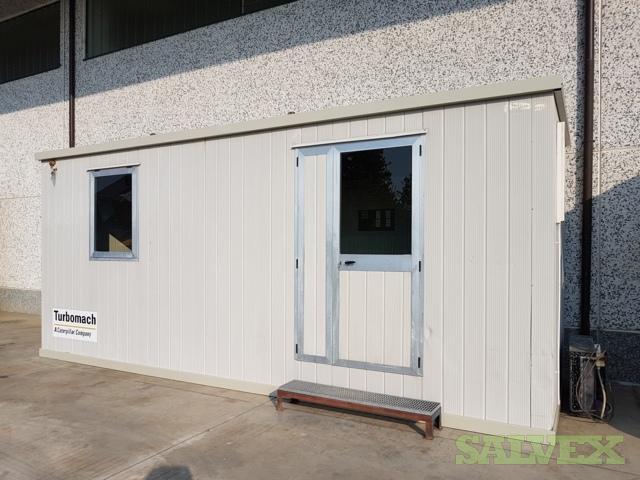

- 7 Units of Turbomach Control Rooms

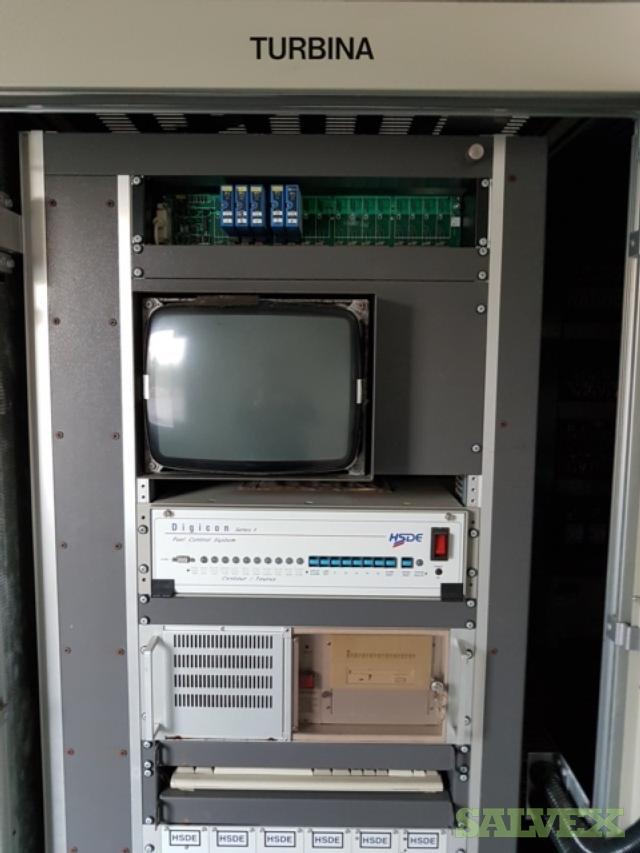

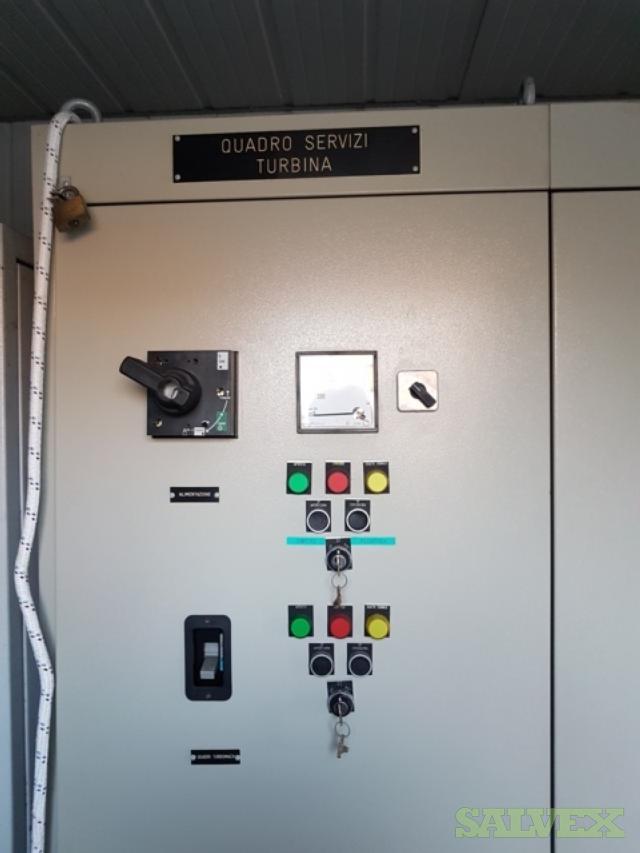

- Turbine Cabinet

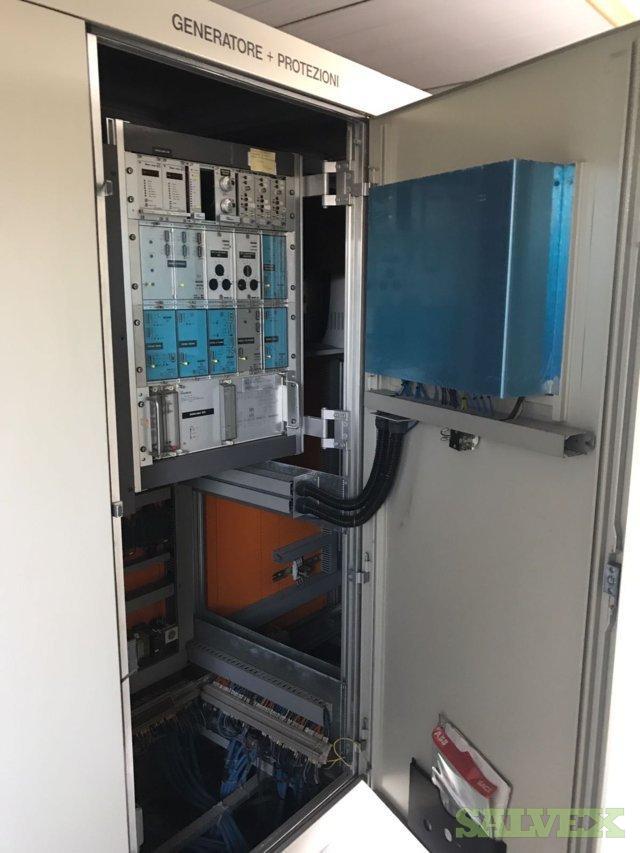

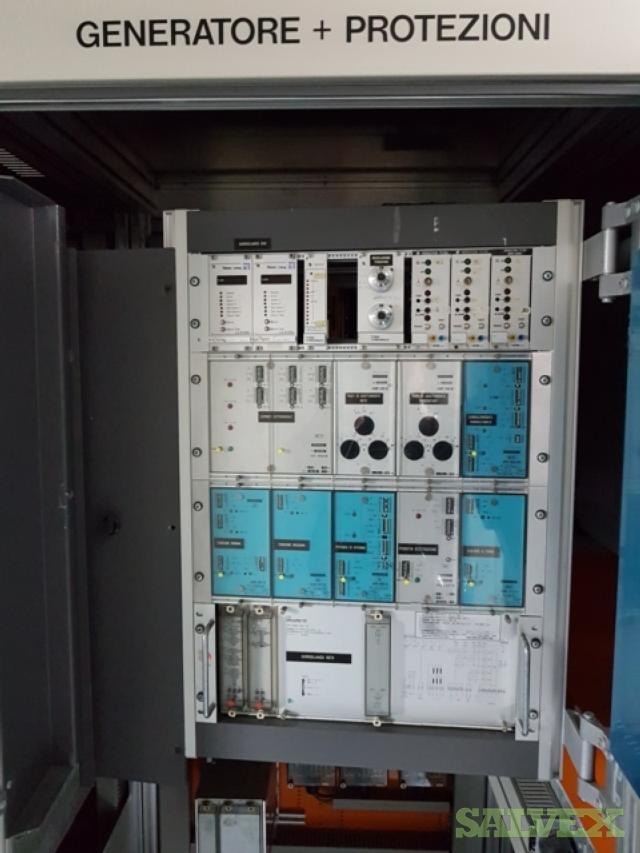

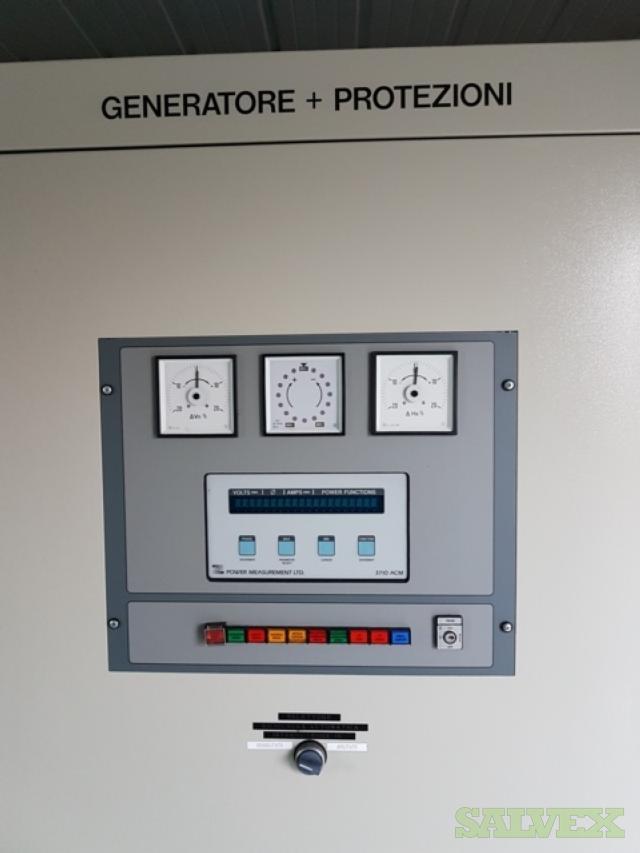

- Generator Cabinet + Protections

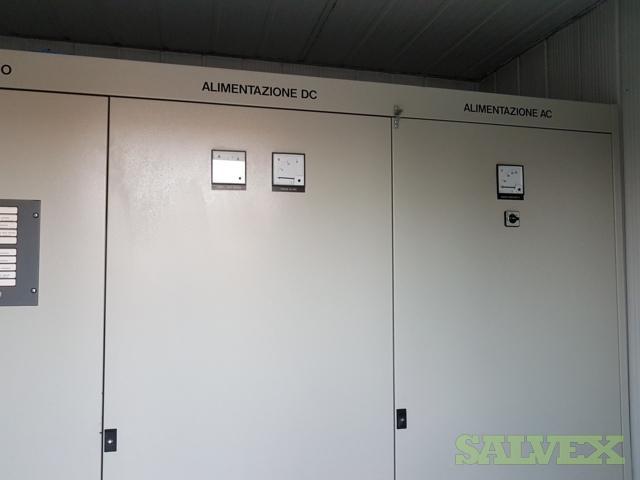

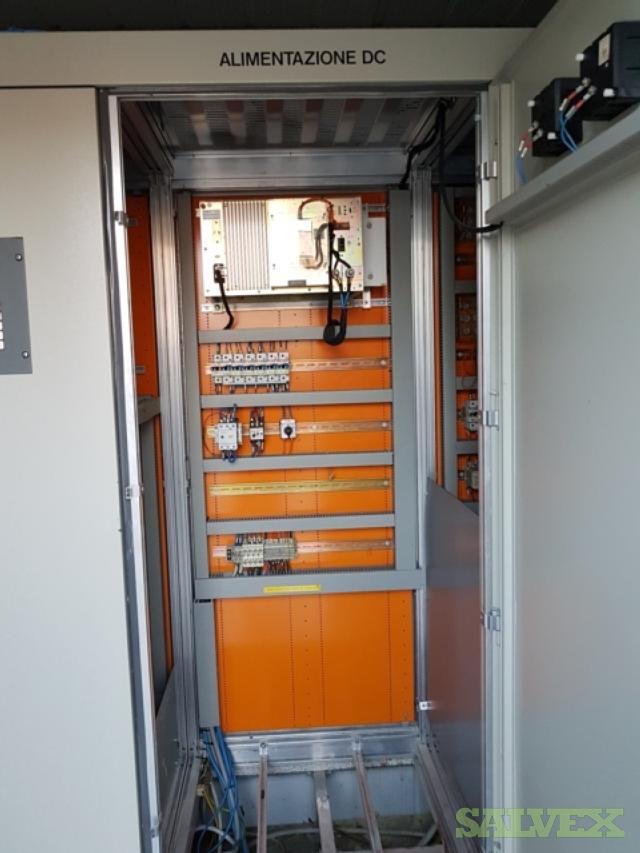

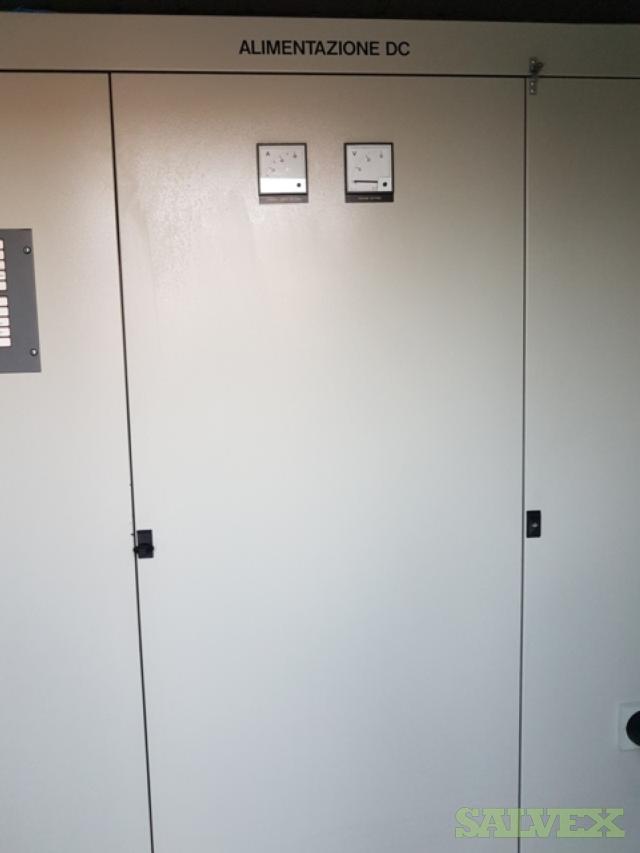

- DC Power Supply Cabinet

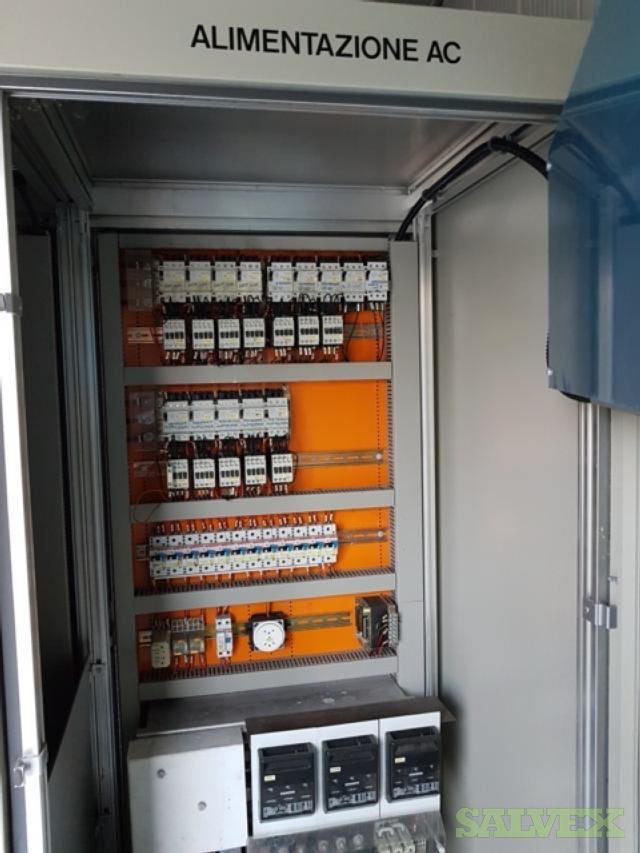

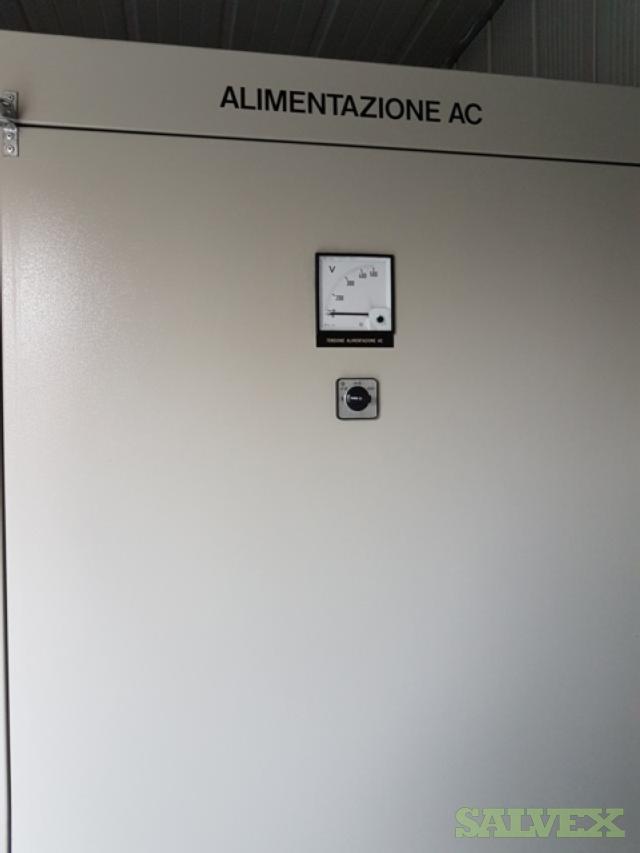

- AC Power Supply Cabinet

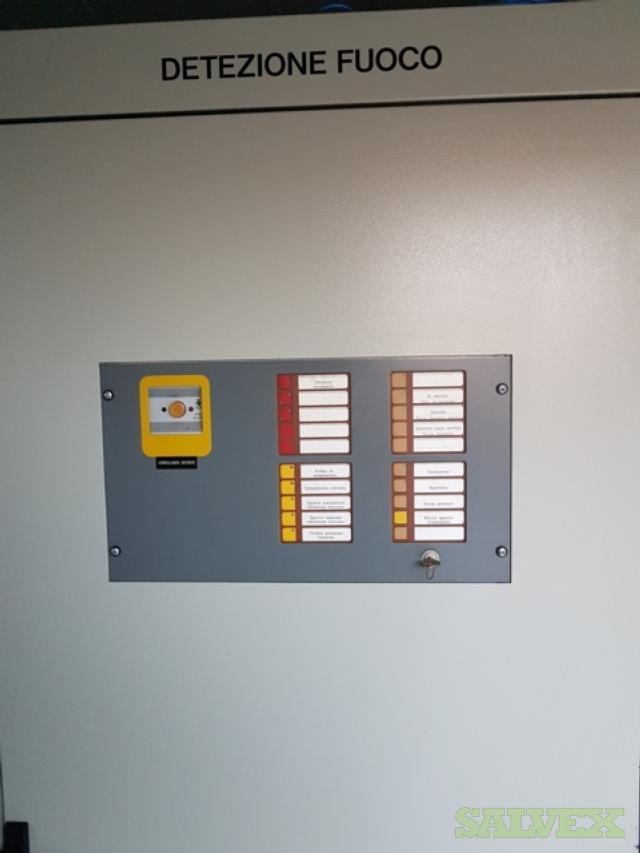

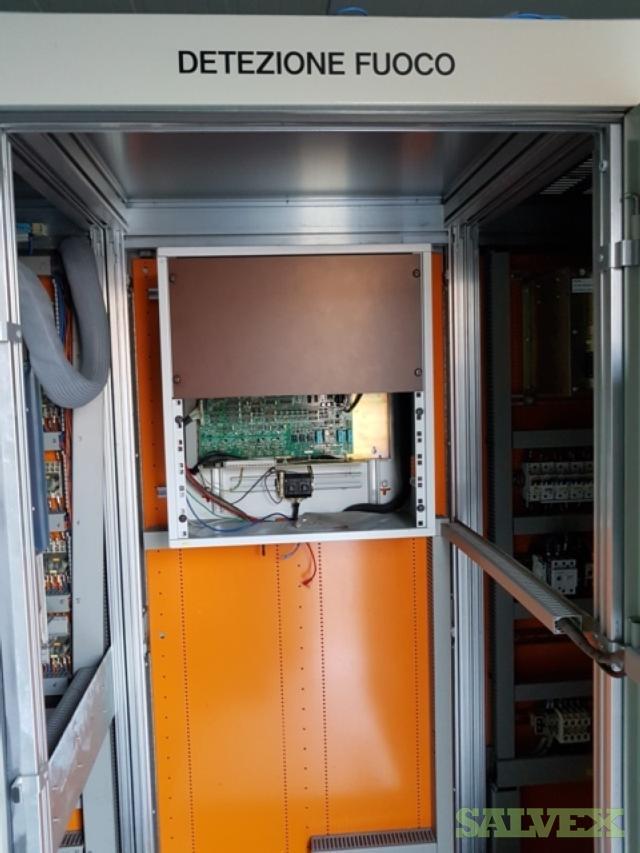

- Surveilance of Fire Cabinet
TRANSFORMER:
Power: 5000 KVA
Year of Manufacture: 1994
Total Weight: 9970 KG;
Primary Tension: 15.75 - 2 kV;
Nominal Tension SEC: 6 kV
Nominal Priming Power: 183.3 A;
Nominal Power Sections: 481.1 A;

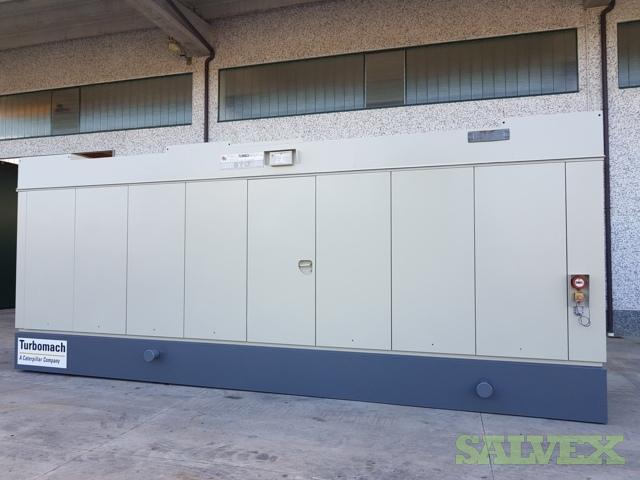

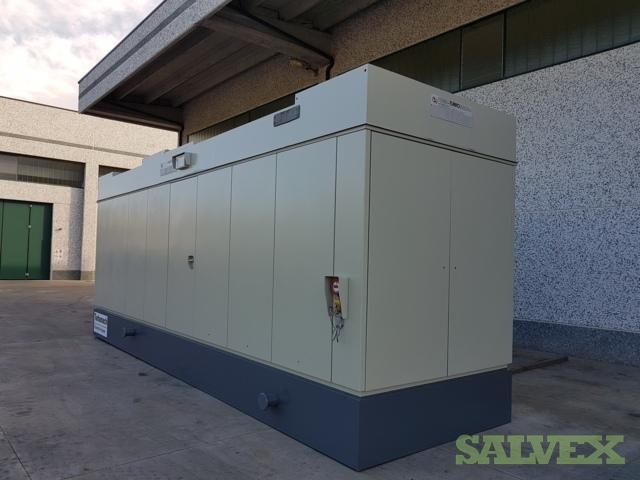

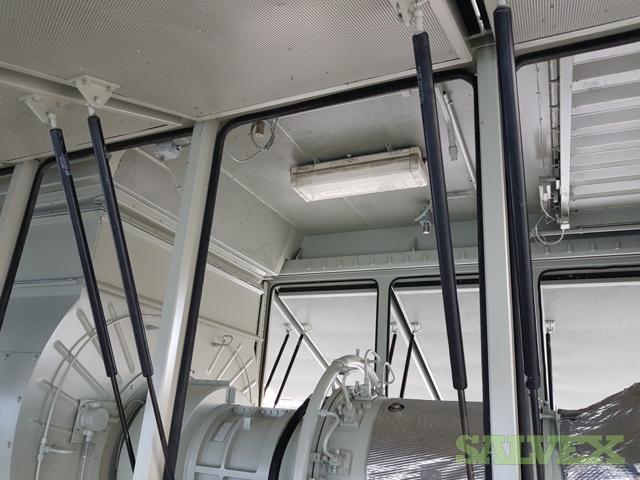

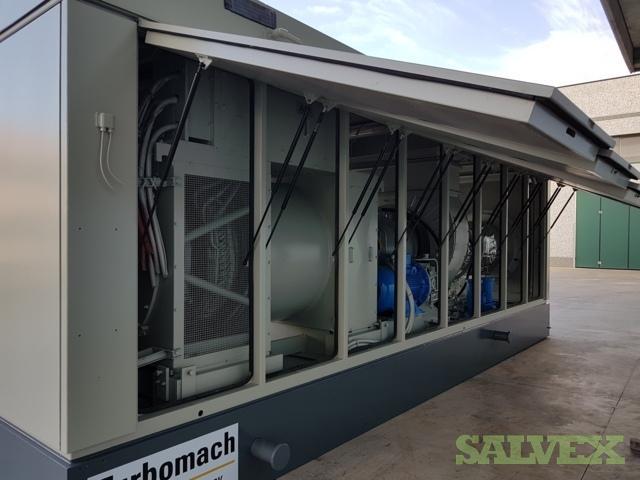

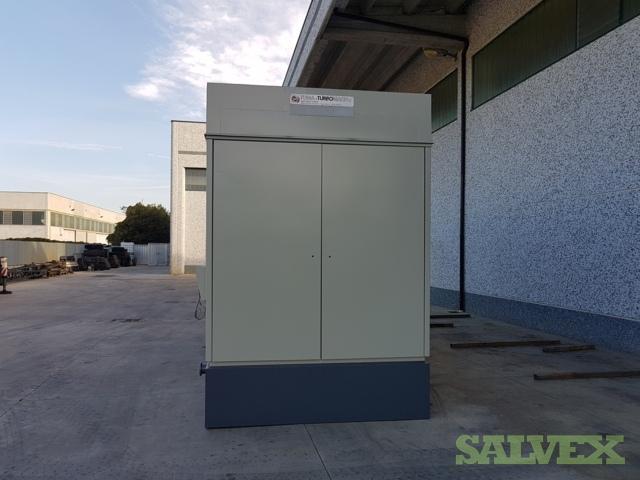

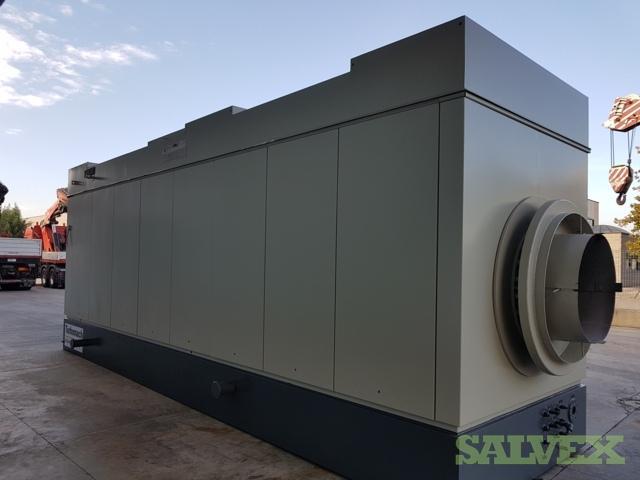

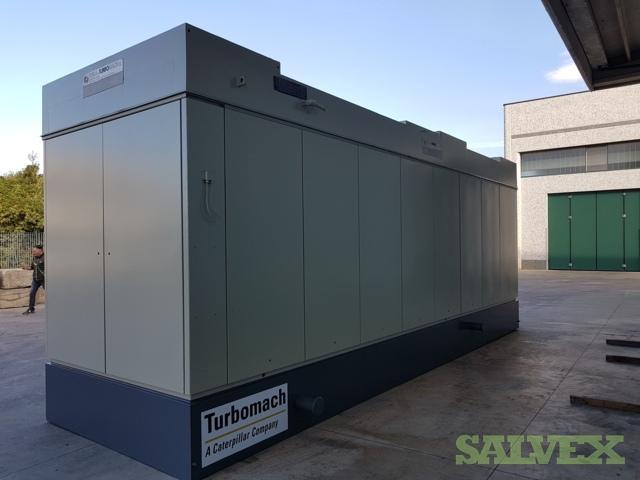

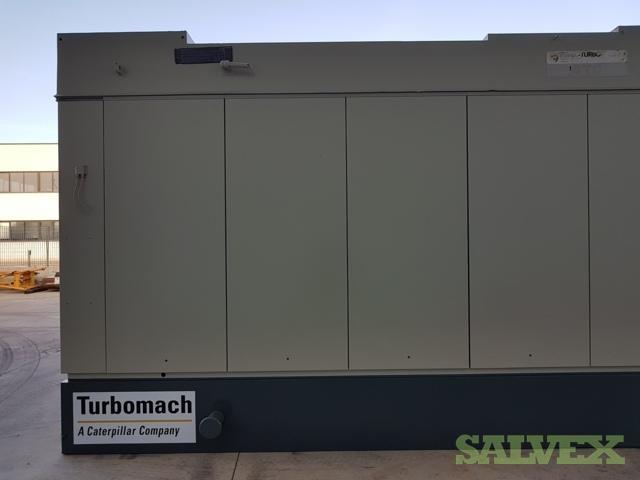

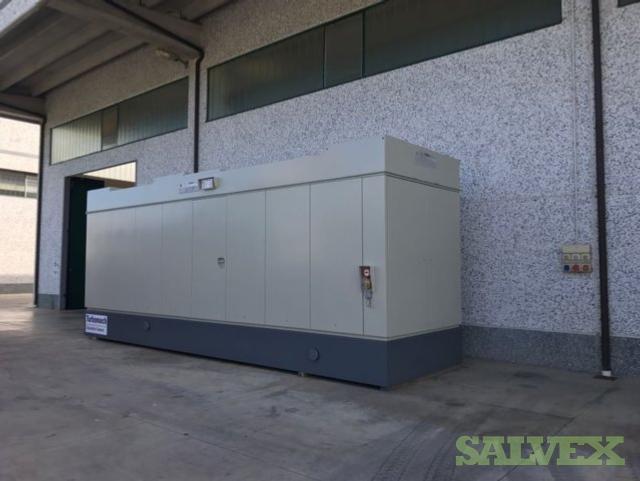

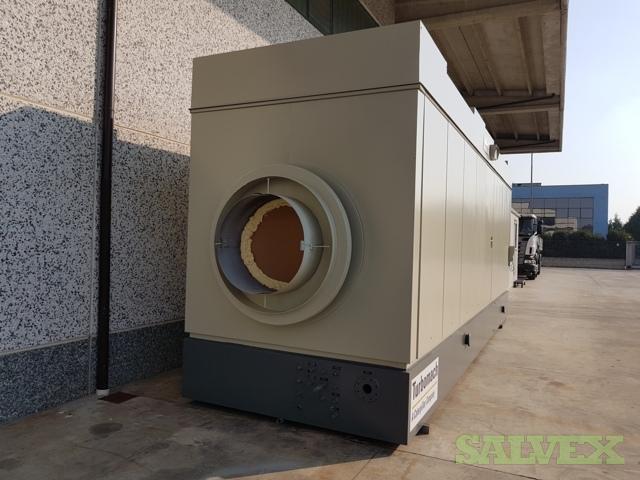

CONTAINER:
Length: 8.00 M;
Width:X 2.20 M;
Height: 3.24 M;
Total Weight: 30,000 KG;
Turbine: 1,846 KG;
Reducer: 1.370 KG;
Alternator: 12.400 KG;

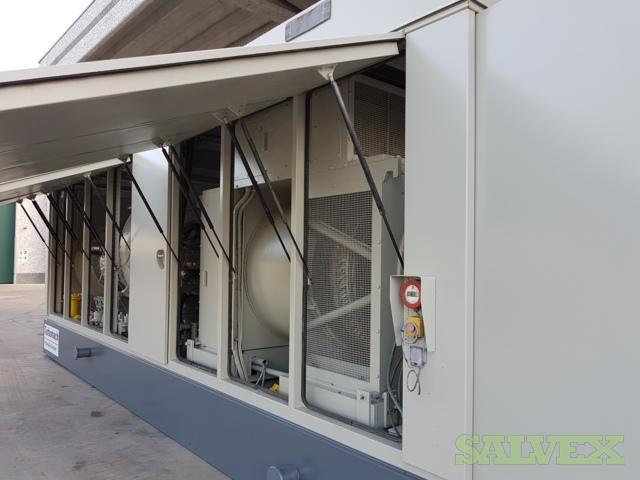

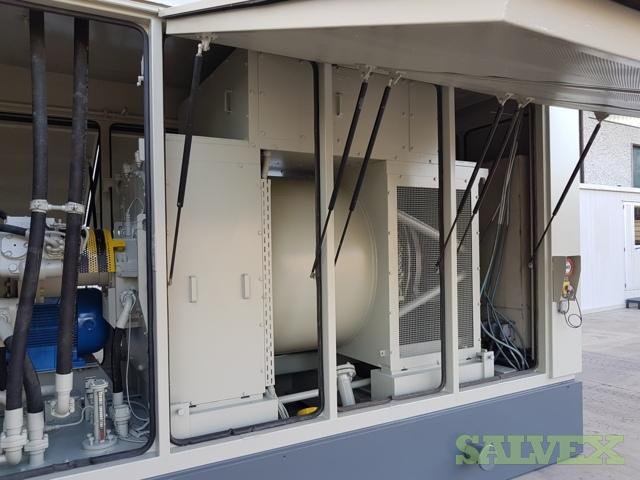

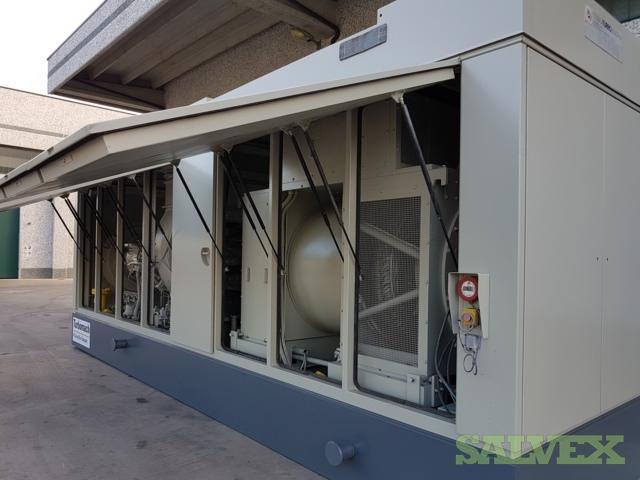

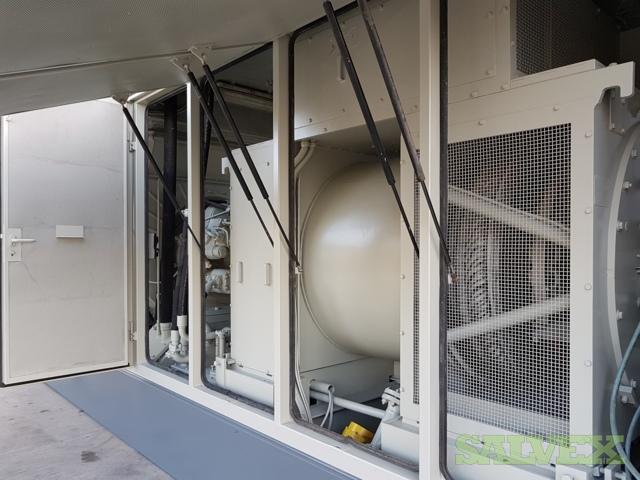

Box with 16 side doors and 2 rear doors;

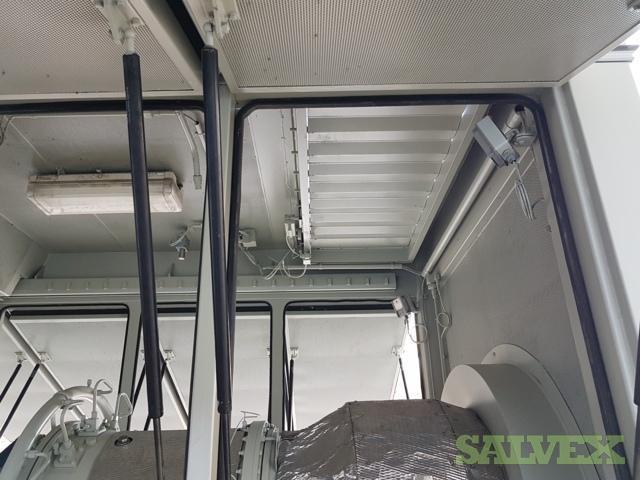

The soundproofing box is made of steel and features opening panels that are 80 mm thick. The panels are made of 3 mm thick steel sheets, filled with mineral wool and covered with perforated steel plates.
